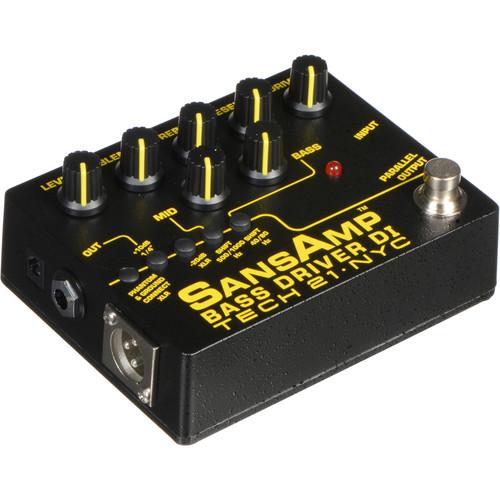

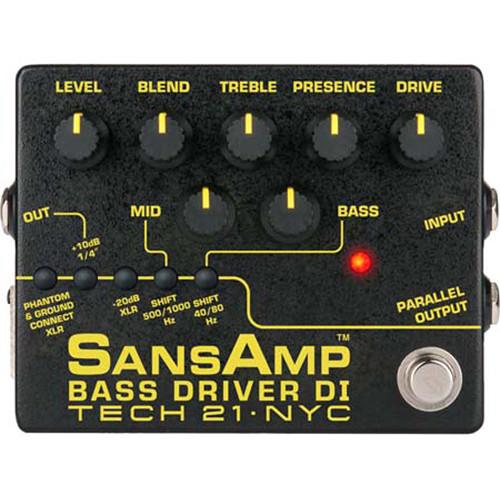

User Manual for TECH 21 SansAmp Bass Driver V2 DI Pedal Click to enlarge the picture
Contents of the user manual for the TECH 21 SansAmp Bass Driver V2
- Product category: Effects Pedals TECH 21
- Brand: TECH 21
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TECH 21 Effects Pedals
 |
User manual for the TECH 21 SansAmp Bass Driver V2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TECH 21 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!
|
Product description EQ and Drive with the TECH 21 SansAmp Bass Driver V2 DI Pedal Read More zuuyxzwesacvczzedz The updated SansAmp Bass Driver V2 DI from Tech 21 delivers big vintage tube tones, bright modern slap sounds, and gnarly distortions through your bass amp, power amp, or directly through a mixing board. Added features include a bass switch for extending the lower register to accommodate 5- and 6-string basses, as well as a midrange control, and a switch to adjust its frequency.
When using the pedal's 1/4" output, the Bass Driver DI can be used to provide overdrive and EQ adjustment as a stompbox, driving the front input of your amp. Use the integrated footswitch to add or bypass the pedal from your signal chain. The Bass Driver DI can also be used as a preamp by running the 1/4" output directly into the power amp input (or effects return) of your amp. For going direct to a mixing board or studio console, the XLR terminal on the SansAmp Bass Driver V2 outputs a balanced signal and can receive 48V phantom power from the mixing board or studio console to fully power the pedal and all of its functions.
Having multiple outputs allows for multitasking, so you can mix and match your signal chain options with the Bass Driver DI. For example, on a live stage, you can send a balanced DI signal to the mixing board or console while using the low-Z or parallel 1/4" outputs to route the signal back to your amp for real-time monitoring. Low-Z outputs can drive long cable lengths without signal deterioration, ensuring your bass signal arrives without attenuated high frequencies or excess noise. - Controls
-
- Presence: Brings out the upper harmonic content and attack. For a smoother high end and for clean settings, decrease to taste
- Drive: Adjusts the overall amount of gain and overdrive, similar to when the output section of a tube amp is being pushed
- Mid, Bass, and Treble: Unlike passive controls that only cut, these active tone controls cut or boost ±12 dB from unity gain (12 o’clock)
- Mid Shift Switch: Changes the frequency from 500 Hz (up position) to 1000 Hz
- Bass Shift Switch: Changes the frequency from 40 Hz (up position) to 80 Hz to accommodate 5- and 6-string basses that extend into the lower registers.
- Blend: Controls the ratio of SansAmp Tube Amplifier Emulation circuitry and your direct instrument signal.
- Level: Adjusts the output level of both the 1/4” and XLR outputs.
- Inputs and Outputs
-
- Input 1/4”, 1 MOhm, instrument level. Switches battery power on/off
- Parallel Output: 1/4” unbalanced direct output is “hard-wired” parallel with input jack. Instrument signal passes through, un-effected, to the input of your stage amplification system
- Balanced XLR Output: Balanced low-Z output. Sends effected or un-effected signal to mixing console/recorder, depending on the orientation of the Footswitch
- XLR Output Level Switch: -20 dB pad to match the output to equipment with different input level requirements. Disengaged (up position), the output is 0 dB. Engaged (in position), the output is -20 dB
- 1/4” Output: Unbalanced low-Z output. Sends effected or un-effected signal to amp rig or power amp, as per the orientation of the Footswitch
- 1/4” Output Level Switch: +10 dB boost to match the output to equipment with different input level requirements. Disengaged (up position), the output is -10 dB. Engaged (in position), the output is 0 dB
- Footswitch (with LED Indicator): Engages/disengages SansAmp Tube Amplifier Emulation circuitry
- Active (LED On): Tonality and gain structure are affected as determined by the setting of the controls. Delivers effected signal through the XLR Output and 1/4” Output.
- Inactive (LED Off): SansAmp Bass Driver DI functions as an active transparent direct box and does not sonically alter the instrument signal
- Phantom Power
- Phantom and Ground connect Switch: When engaged, the ground connects and unit will accept phantom power through the XLR Output. Disengaged, the ground of your stage system and other interconnected gear is lifted (isolated) from the ground of the mixing console
- Speaker Simulation
- Within the SansAmp Tube Amplifier Emulation circuitry is a speaker simulator which models a multi-miked bass cabinet. The tonal response is smooth and precludes the possible peaks, valleys, and notches associated with single-miking techniques
UPC: 837088002264 In the Box TECH 21 SansAmp Bass Driver V2 DI Pedal - Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the TECH 21 SansAmp Bass Driver V2 DI Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTECH 21 BSDR-V2 Specs | Input | Instrument: 1 x 1/4" (6.3 mm) TS, 1 MOhm | | Output | Parallel: 1 x 1/4" (6.3 mm), 1 MOhm
Balanced: 1 x XLR Low-Z
Unbalanced: 1 x 1/4" (6.3 mm) Low-Z | | Controls | Level knob
Blend knob
Treble knob
Presence knob
Drive knob
Mid knob
Bass knob
Phantom & Ground Connect switch
Line/Instrument 1/4" Output Switch: 0 / +10 dB
Line/Instrument XLR Switch: 0 / -20 dB
Mid Frequency Switch: 500 / 1000 Hz
Bass Frequency Switch: 40 / 80 Hz | | Power | Battery: 9 VDC
DC Power Supply: 9 VDC, 100 mA, 2.1 mm female plug, center negative
48 V Phantom Power via XLR | | Dimensions | 4.75 x 3.75 x 2.0" / 121 x 95 x 51 mm | | Weight | 14 oz / 397 g | | | | Package Weight | 1.135 lb | | Box Dimensions (LxWxH) | 5.7 x 4.75 x 2.3" |
