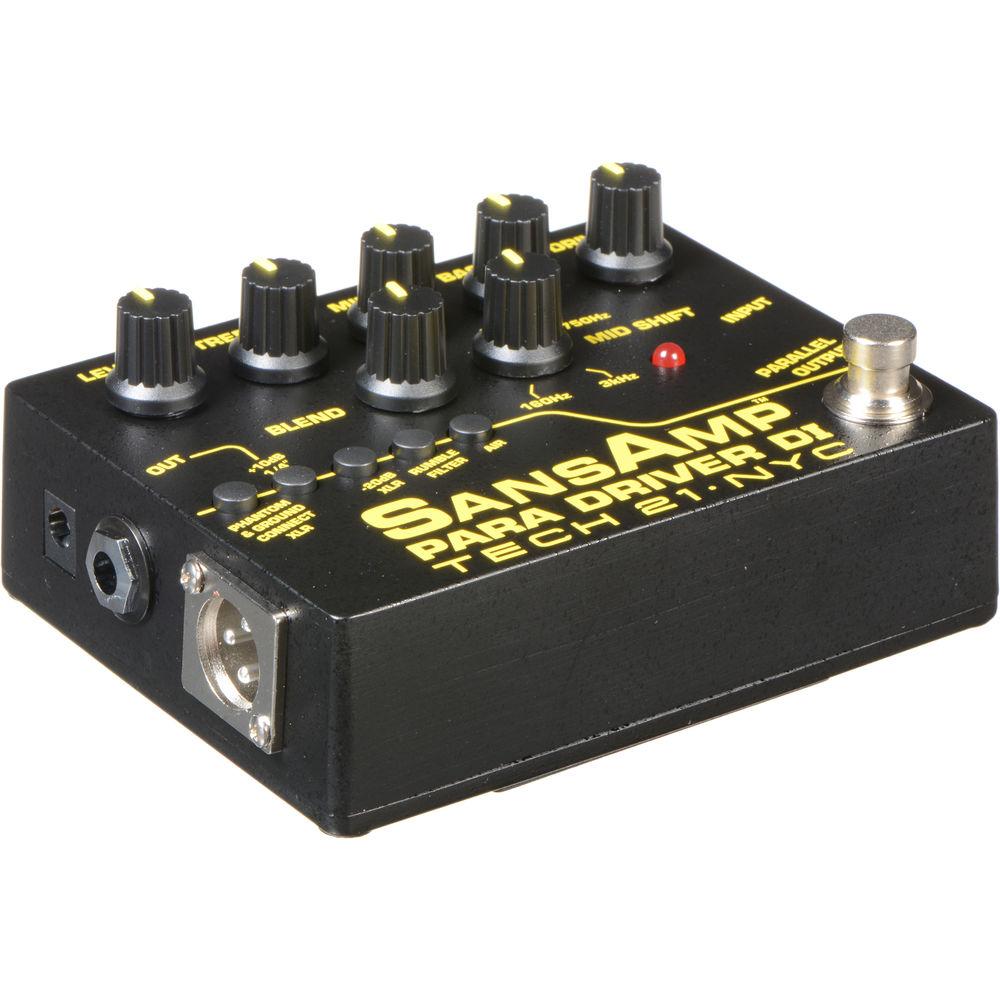

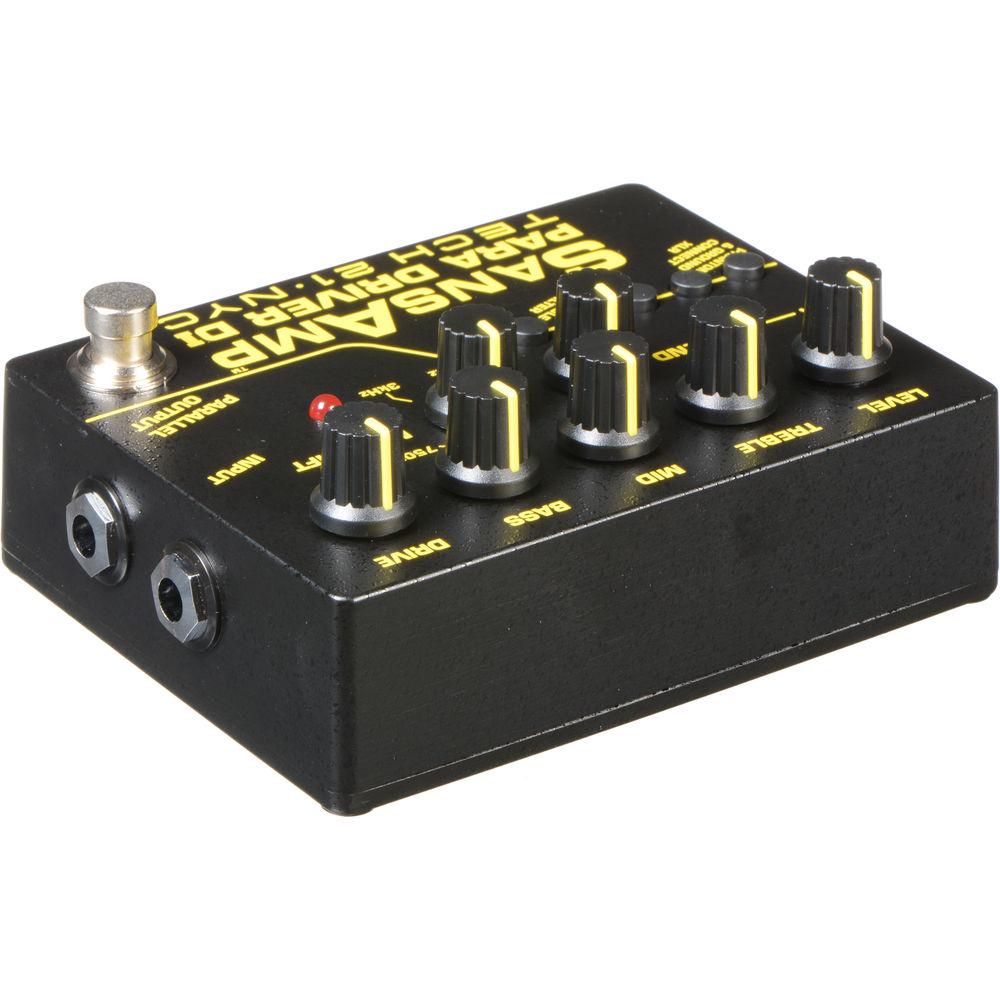

User Manual for TECH 21 SansAmp Para Driver DI Pedal Click to enlarge the picture
Contents of the user manual for the TECH 21 SansAmp Para Driver DI
- Product category: Effects Pedals TECH 21
- Brand: TECH 21
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TECH 21 Effects Pedals
 |
User manual for the TECH 21 SansAmp Para Driver DI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TECH 21 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!
|

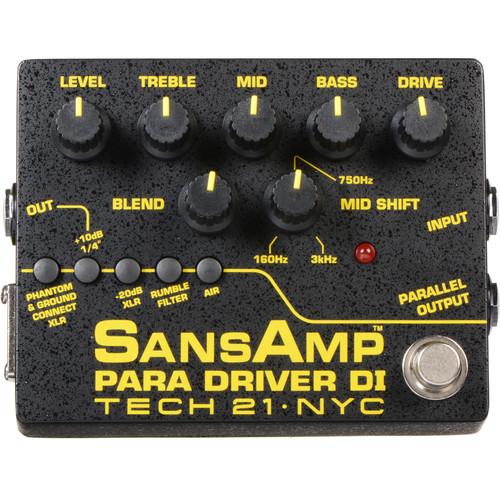

Product description Useful for nearly any instrument, the Tech 21 SansAmp Para Driver DI Pedal (v2) is a DI box with a few more tricks up its sleeve for stage- or studio-ready tones. Not only does the Para Driver drive the weak instrument level signal to go into a mixer, it has a powerful EQ section with a parametric mid control, a controllable SansAmp tube amplifier emulator, and an "Air" control to add top-end clarity to acoustic instruments or other signals.In addition to being a DI box the Para Driver can also function as an outboard effect for live or studio mixing, by using the onboard EQ and other controls to fatten up or otherwise improve the sonic qualities of any track. When connected via XLR, the Para Driver can be powered by external 48V phantom power, precluding the need for a battery or other power supply. This DI works well with any instrument, but is particularly useful for acoustic, electric, and bass guitar, and upright bass. Controls - Drive
- Adjusts the overall amount of gain and overdrive, similar to when the output section of a tube amp is being pushed.
- Bass & Treble
- These active tone controls cut or boost ±12dB from unity gain at 12 o'clock. Bass adjusts the 80 Hz frequency. Treble adjusts the 3.2kHz frequency.
- Mid Shift & Mid
- Sweepable, semi-parametric EQ controls range from 160 Hz to 3 kHz, ±16dB, respectively. With Mid Shift, you can select the center frequency of the midrange control (MID), enabling you to notch out specific frequencies that may be causing your acoustic guitar to feed back.
- Blend
- Controls the ratio of your direct instrument signal and the SansAmp Tube/Microphone Emulation.
- Level
- Adjusts the output level of both the 1/4 and XLR outputs.
Other Features - Rumble Filter
- When engaged, the rumble filter removes unwanted sub-sonic frequencies that cause boominess and audible handling noises associated with acoustic guitars. It also complements other instruments, such as electric guitar, for a snappier sound.
- Air
- Adds top-end clarity to acoustic instruments when engaged. Also complements other instruments as well as vocals, for better definition and a more open sound.
- Speaker Simulation
- Within the tube amplifier emulation circuitry is a speaker simulator which models a multi-miked bass cabinet. The tonal response is smooth and precludes the possible peaks, valleys, and notches associated with single-miking techniques.
UPC: 837088002110 In the Box TECH 21 SansAmp Para Driver DI Pedal (v2) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TECH 21 SansAmp Para Driver DI Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTECH 21 Para Specs | Input | Instrument: 1 x 1/4" TS, 1 MOhm, hi-Z | | Output | Parallel: 1 x 1/4", 1MOhm, hi-Z
Balanced: 1 x XLR, low-Z
Unbalanced: 1 x 1/4", low-Z | | Power | 9 VDC via 9V battery or optional DC power supply
48V phantom power via XLR | | Dimensions | 4.75 x 3.75 x 2" / 121 x 95 x 51 mm | | Weight | 12 oz / 340 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 5.6 x 4.7 x 2.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
