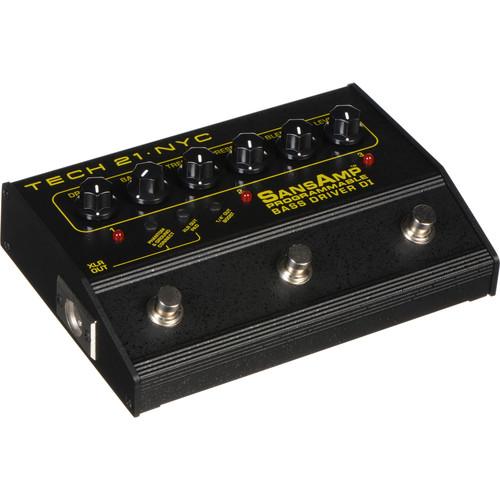

User Manual for TECH 21 SansAmp Programmable Bass Driver DI Pedal Click to enlarge the picture
Contents of the user manual for the TECH 21 SansAmp Programmable Bass Driver
- Product category: Effects Pedals TECH 21
- Brand: TECH 21
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TECH 21 Effects Pedals
|
User manual for the TECH 21 SansAmp Programmable Bass Driver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TECH 21 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!
|
Product description Condense your bass rig into a stombox with the SansAmp Programmable Bass Driver DI Pedal by Tech 21. Using the footswitches you can instantly recall 3 custom presets for different sounds. Sounds can be created on the fly by adjusting the pedal's drive, EQ, and level controls, which, when combined with the SansAmp amplifier emulation, provide a wide array of tonal choices to cover you on any gig.Adding to the pedal's versatility is the output selection. Having multiple outputs allows for mixing and matching signal chain options. For example on a live stage, you can send a balanced DI signal to the mixing board or console while using the low-Z or parallel 1/4" outputs to route the signal back to your amp for real-time monitoring. Low-Z outputs can drive long cable lengths without signal deterioration, ensuring your bass signal arrives without attenuated high-frequencies or excess noise. For going direct to a mixing board or studio console, the XLR terminal on the SansAmp Bass Driver DI outputs a balanced signal and can receive 48V phantom power from the mixing board or studio console to fully power the pedal and all of its functions. - Controls
-
- Presence: brings out the upper harmonic content and attack. For a smoother high end and for clean settings, decrease to taste.
- Drive: adjusts the overall amount of gain and overdrive, similar to when the output section of a tube amp is being pushed.
- Bass & Treble: Unlike passive controls that only cut, these active tone controls cut or boost -12dB from unity gain (12 o clock). This powerful EQ section effectively reduces the need for a fixed frequency mid control and enables you to achieve an extensive variety of curves --including a mid-cut as well as a mid-boost.
- Blend: allows you to blend the direct instrument signal with SansAmp Tube Amplifier Emulation circuitry.
- Level: adjusts the output level of both the 1/4 and XLR outputs.
- Speaker Simulation
- Within the tube amplifier emulation circuitry is a speaker simulator which models a multi-miked bass cabinet. The tonal response is smooth and precludes the possible peaks, valleys, and notches associated with single-miking techniques.
- "Lazy Pot" Adjustment
- This is a safety feature engineered for the Drive and Level controls. When you "unlock" the EQ settings, for instance, they will "jump" to the new setting of the knob position. For the Drive and Level controls, however, this could result in you jumping out of your skin if they're at a high setting. With the Lazy Pot, there's a gradual increase to the new setting position, giving you time to turn it down.
- Presets
- Easily store a preset by double-tapping a channel's footswitch. When you turn a knob from its stored position, a channel indicator LED will blink. The slower the blink, the farther away you are from the preset point, and vice versa. The LED will stop blinking and remain on at the preset point.
UPC: 837088001571 In the Box TECH 21 SansAmp Programmable Bass Driver DI Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TECH 21 SansAmp Programmable Bass Driver DI Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTECH 21 PBDR Specs | Input | Instrument: 1 x 1/4" TS, 1 MOhm, hi-Z | | Output | Balanced: 1 x XLR, low-Z
Unbalanced: 1 x 1/4", low-Z | | Power | 9 VDC via 9V battery or optional DC power supply
48V phantom power via XLR | | Dimensions | 7.25 x 5.25 x 2.25" / 184 x 133 x 57 mm | | Weight | 1.6 lbs / 728 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.4 x 5.8 x 2.4" |
