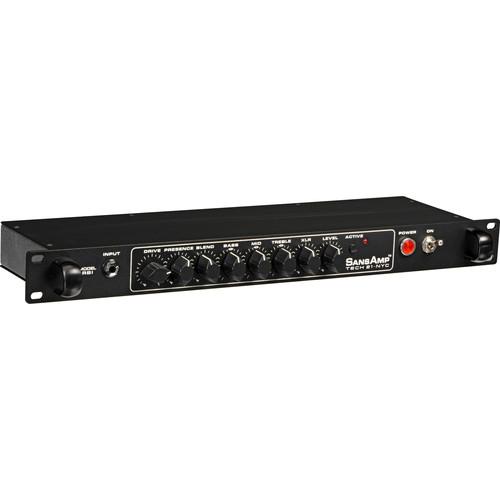

User Manual for TECH 21 SansAmp RBI Click to enlarge the picture
Contents of the user manual for the TECH 21 SansAmp RBI
- Product category: Direct Boxes TECH 21
- Brand: TECH 21
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TECH 21 Direct Boxes
 |
User manual for the TECH 21 SansAmp RBI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TECH 21 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!
|
Product description With advanced routing and control of your bass guitar's signal, the Tech 21 SansAmp RBI can be used in the studio or on stage to improve your bass tone and equipment integration. Dual inputs allow for main/temporary instruments to be connected. Multiple XLR and 1/4" outputs can send signals straight to the PA/mixing console while simultaneously driving a bass amp. One XLR is the output of the effected SansAmp signal, while the other XLR provides a buffered, balanced output of the direct instrument signal without processing. Footswitch in/out jacks let you control the RBI and other SansAmp devices for even more advanced setups. An active 3-band EQ on the front panel can be used to shape your tone along with controllable SansAmp tube amplifier emulation for extra warmth. The RBI can be further tweaked by taking advantage of the effects loop, which can be setup for a traditional 100% wet configuration (series) or a 50/50 configuration (parallel) so your effects don't muddy your tone. - Controls

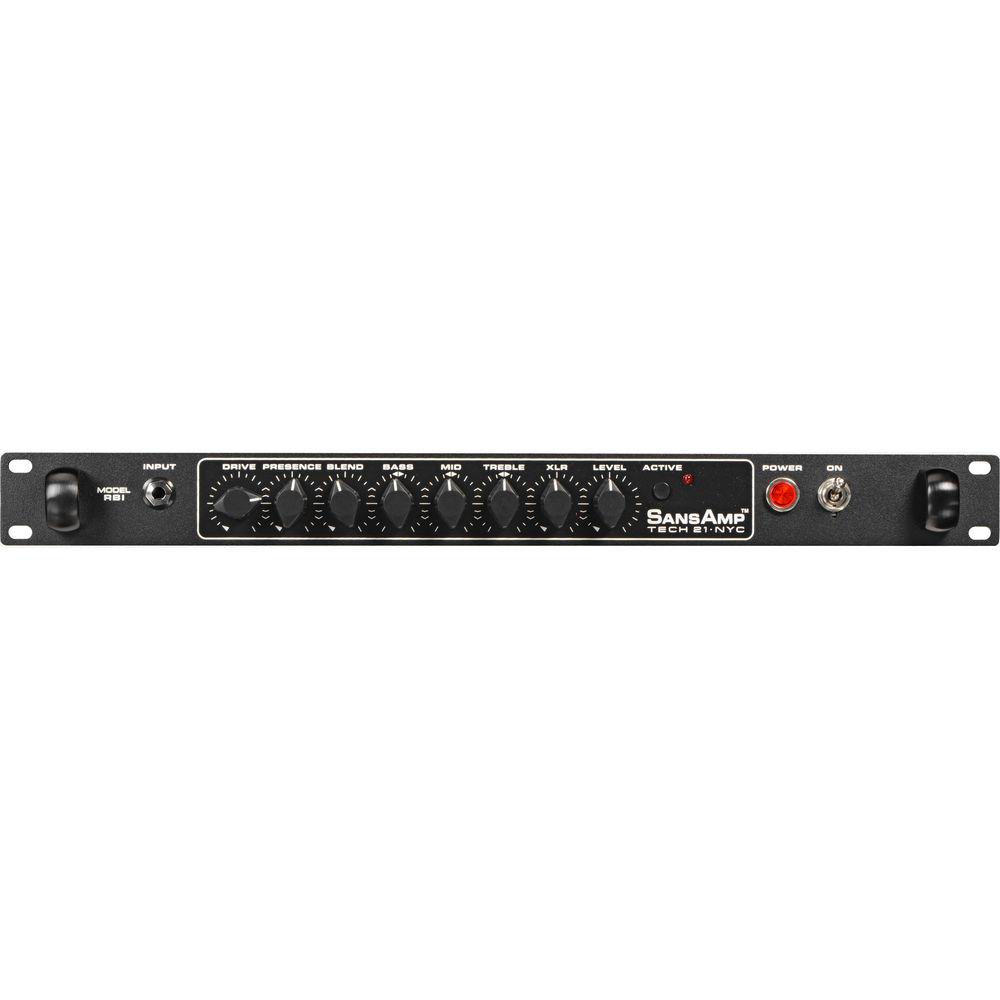

- SansAmp RBI is designed with active controls, which cut and boost, rather than traditional passive controls which only cut. This effectively doubles many of the control's capabilities, giving you a much larger range of adjustability and ultimately, more variety.
- Drive: Adjusts the overall amount of gain and overdrive, similar to when the output section of a tube amp is being pushed.
- Presence: Brings out the upper harmonic content and attack.
- Blend: Allows you to blend the direct instrument signal with SansAmp Tube Amplifier Emulation circuitry.
- Bass, Mid and Treble: These active tone controls cut or boost ±12dB from unity gain at 12 o'clock. Bass is 80Hz, mid is 1kHz Treble is 3.2kHz.
- XLR: Adjusts the volume level of the SansAmp XLR Output independently of the 1/4" Level control.
- Level: Adjusts the SansAmp 1/4" Output level.
- Active: Activates the circuitry.

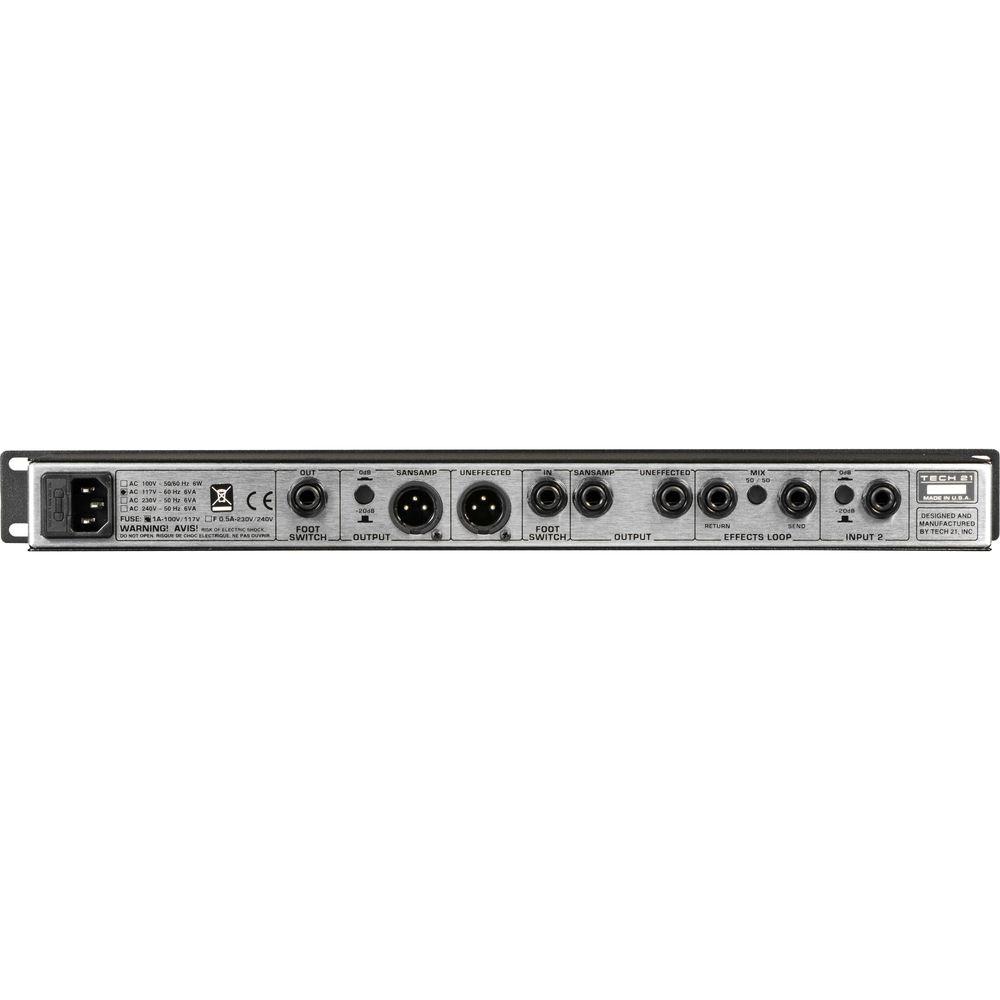

- Level Selector Switch: 0 dB position optimizes the rear-panel Input 2 to receive an instrument level signal. In this position, Input 2's sensitivity is exactly the same as the front panels' input. The -20 dB position is used when sending a line level signal into the unit and the input needs to be padded down.
- Mix 50/50 Switch: When disengaged, 100% of the SansAmp RBI's signal gets routed through the effects processors. When engaged, 50% of the unit's signal goes through the effects processors, and the other 50% passes directly to the SansAmp 1/4" and XLR outputs.
- XLR Output Level Switch: Sets the range of the signal level for the SansAmp XLR output jack. In the 0 dB position, the output is in the line level range. When in the -20 dB position, the output is in the instrument level range.
- Footswitch: Any alternating (on/off) footswitch will activate the unit. It can also be used to toggle between two SansAmp RBI units for multiple sounds.
UPC: 837088001083 In the Box TECH 21 SansAmp RBI Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TECH 21 SansAmp RBI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTECH 21 RBI Specs | Input | 1 x 1/4" instrument, 1 MOhm,
1 x 1/4" instrument/line, 1 MOhm
1 x 1/4" effects loop return, 100 kOhms min, -20 dB
1 x 1/4" footswitch | | Output | 2 x 1/4", 1 kOhm
2 x XLR, 600 ohms
1 x 1/4" effects loop send, 1 kOhm min, -20 dB
1 x 1/4" footswitch | | Frequency Response | 10 Hz to 20 kHz or better | | Power | IEC power cord
117 VAC, 60 Hz
*AC power cannot be switched, unit constructed for specific voltage | | Power Consumption | Max: 5 W | | Dimensions | 19 x 1.75 x 5.25" / 482.6 x 44 x 133 mm | | Weight | 5 lb / 2.3 kg | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 21.0 x 7.1 x 3.7" |
