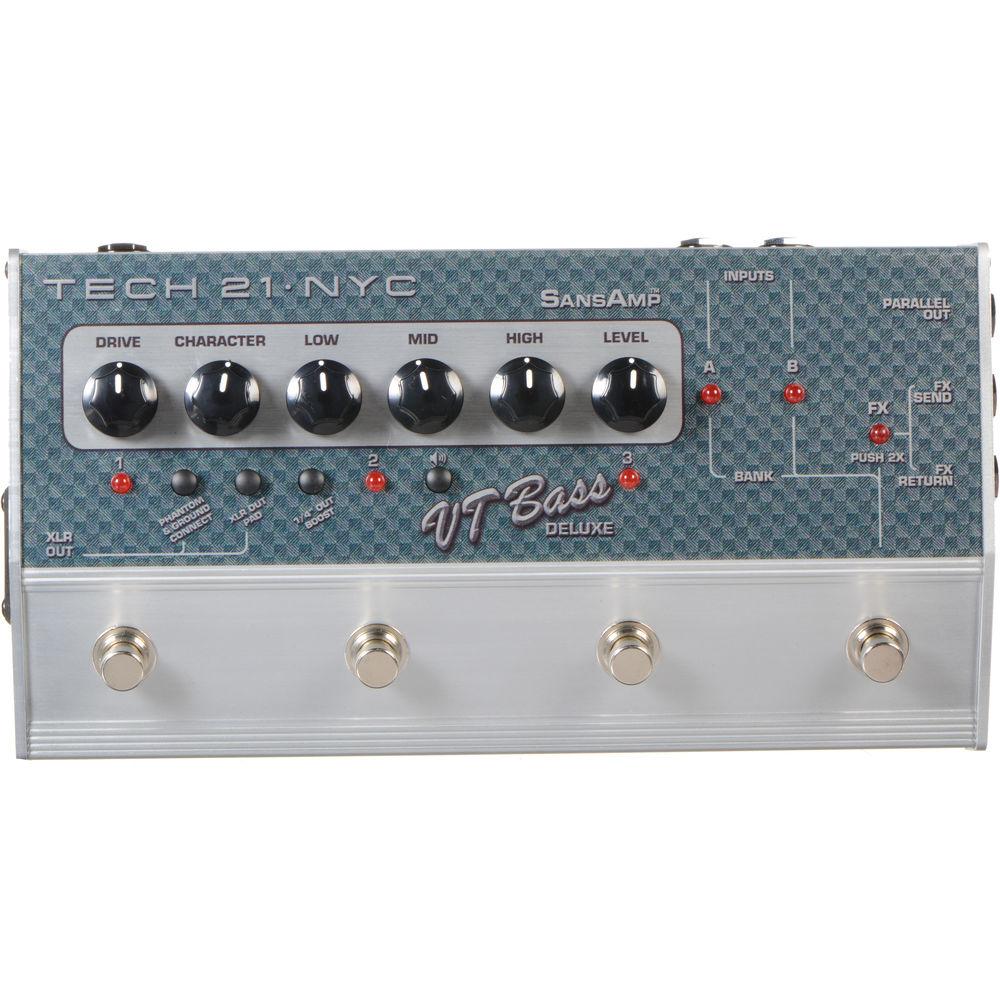

User Manual for TECH 21 SansAmp VT Bass Deluxe Pedal Click to enlarge the picture
Contents of the user manual for the TECH 21 SansAmp VT Bass Deluxe
- Product category: Effects Pedals TECH 21
- Brand: TECH 21
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TECH 21 Effects Pedals
 |
User manual for the TECH 21 SansAmp VT Bass Deluxe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TECH 21 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!
|
Product description Program vintage Ampeg-style bass amp tones without hauling a huge rig to your gig with Tech 21's SansAmp VT Bass Deluxe Pedal. This programmable pedal is part of Tech 21's Character series of pedals which emulate famous tones from vintage and modern gear. Using the "Character" knob on the front panel of the VT Bass Deluxe Pedal evokes simulated Ampeg-style tones which combine with the drive and EQ sections for a convincing vintage and modern sound palette. For additional realism, a smooth speaker cabinet simulation can be switched in; great for going direct to a live mixing board or studio recording console. An effects loop can be engaged to properly place any time-based or modulation effects in the signal chain. Four independent footswitches provide up to six discrete programmable settings (2 banks of 3 presets) for instant recall on stage. Each preset can be easily programmed to memorize knob positions and effects loop in/out state. Presets can be quickly adjusted and saved on the fly while Tech 21's "Lazy Pot" feature prevents unexpected jumps in volume or drive. Having multiple outputs allows for mixing and matching signal chain options. For example on a live stage, you can send a balanced DI signal to the mixing board or console while using the low-Z or parallel 1/4" outputs to route the signal back to your amp for real-time monitoring. Low-Z outputs can drive long cable lengths without signal deterioration, ensuring your bass signal arrives without attenuated high-frequencies or excess noise. A 10dB boost can be applied to the 1/4" output to match up with outboard equipment with different input requirements. - Controls
-
- Drive: Adjusts the overall amount of gain and overdrive, similar to when the output section of a tube amp is being pushed
- Character: Sweeps through an entire range of tonal possibilities associated with Ampeg-style amplifiers. In addition to modifying the frequency response, the Character control also influences the attack and drive characteristics
- Settings below 12 o'clock can generate the powerful sound of a vintage '70s SVT
- Settings around 12 o'clock inspire the sound of the studio classic flip-top combo
- Settings above 12 o'clock will increase the gain and add crunch for modern and indie rock, and other overdriven bass sounds
- With the Character control set at maximum, the pedal evokes distorted bass tones reminiscent of progressive rock groups like Yes, King Crimson, and King's X
- Low, Mid, and High: Unlike passive controls that only cut, these active tone controls cut or boost ±12 dB from unity gain (12 o'clock). Mid is custom tuned to 12 dB at 500 Hz
- Level: Adjusts the output level of both the 1/4" and XLR outputs
- Dual Inputs
- If you use multiple instruments, one of the three preset banks can be assigned to each input. If you only require a single input, all six presets (both banks of three presets) can be assigned to the first instrument input
- Speaker Simulation
- The VT Bass DI is tuned to match 10" American-style bass speakers. It is designed for a smooth, even response as would be achieved by a multi-miked cabinet, without the peaks, valleys, and notches associated with single miking techniques. The speaker simulation works in tandem with the EQ controls to custom tailor the overall sound. If desired, the speaker simulation can be defeated by disengaging the speaker switch on the front panel
- "Lazy Pot" Adjustment
- This is a safety feature engineered for the Drive and Level controls. When you "unlock" the EQ settings, for instance, they will "jump" to the new setting of the knob position. For the Drive and Level controls, however, this could result in you jumping out of your skin if they're at a high setting. With the Lazy Pot, there's a gradual increase to the new setting position, giving you time to turn it down
UPC: 837088001847 In the Box TECH 21 SansAmp VT Bass Deluxe Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TECH 21 SansAmp VT Bass Deluxe Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTECH 21 CS-VTB-DLX Specs | Input | Instrument: 2 x 1/4" (6.3 mm) TS, 1 MOhm | | Output | Parallel: 1 x 1/4" (6.3 mm), 1 MOhm
Balanced: 1 x XLR low-Z
Unbalanced: 1 x 1/4" (6.3 mm) low-Z | | Power | 9 VDC @ 100 mA via 9 V battery/DC power supply
24/48 V phantom power via XLR (48 V required for full headroom and for powering the status LED) | | Dimensions | 9.9 x 5.25 x 2.25" / 251 x 133 x 57 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 10.7 x 5.7 x 2.4" |
