TECH 21 VT Bass 1000 2-Channel

Search your instruction manual in PDF to download

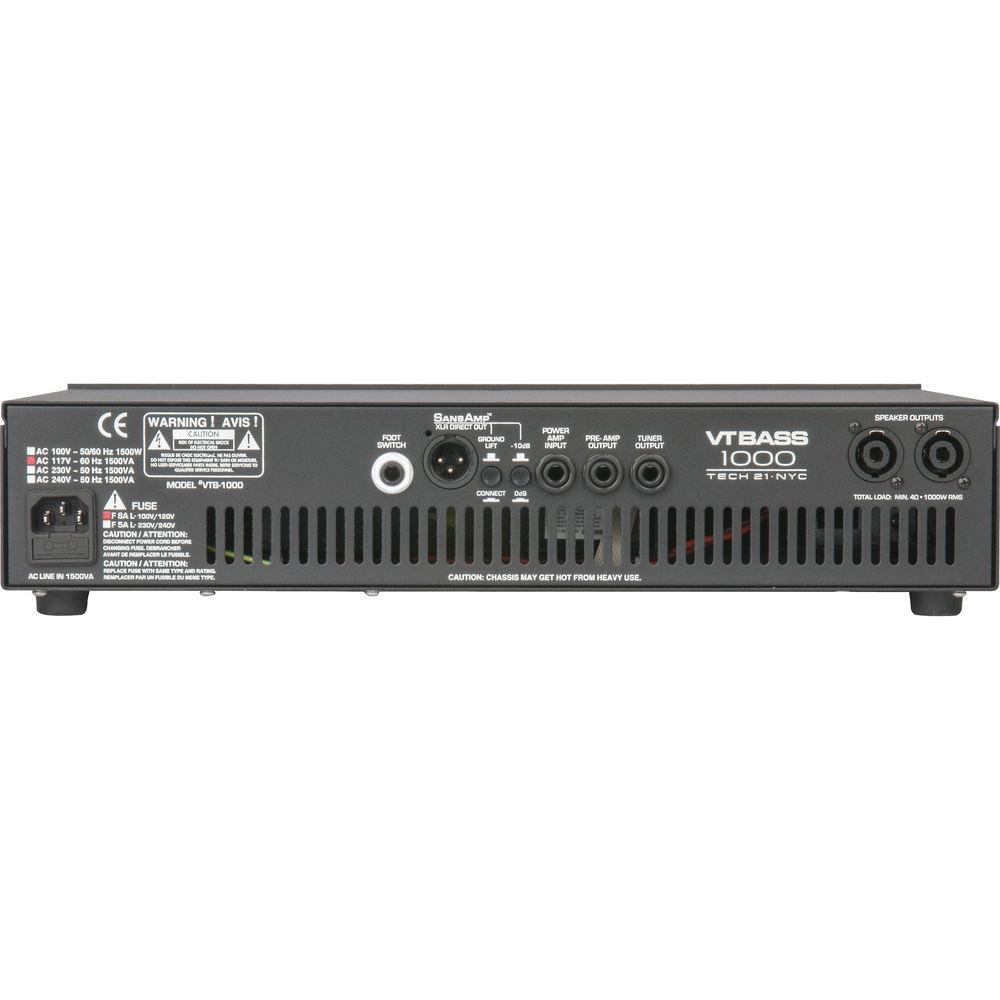

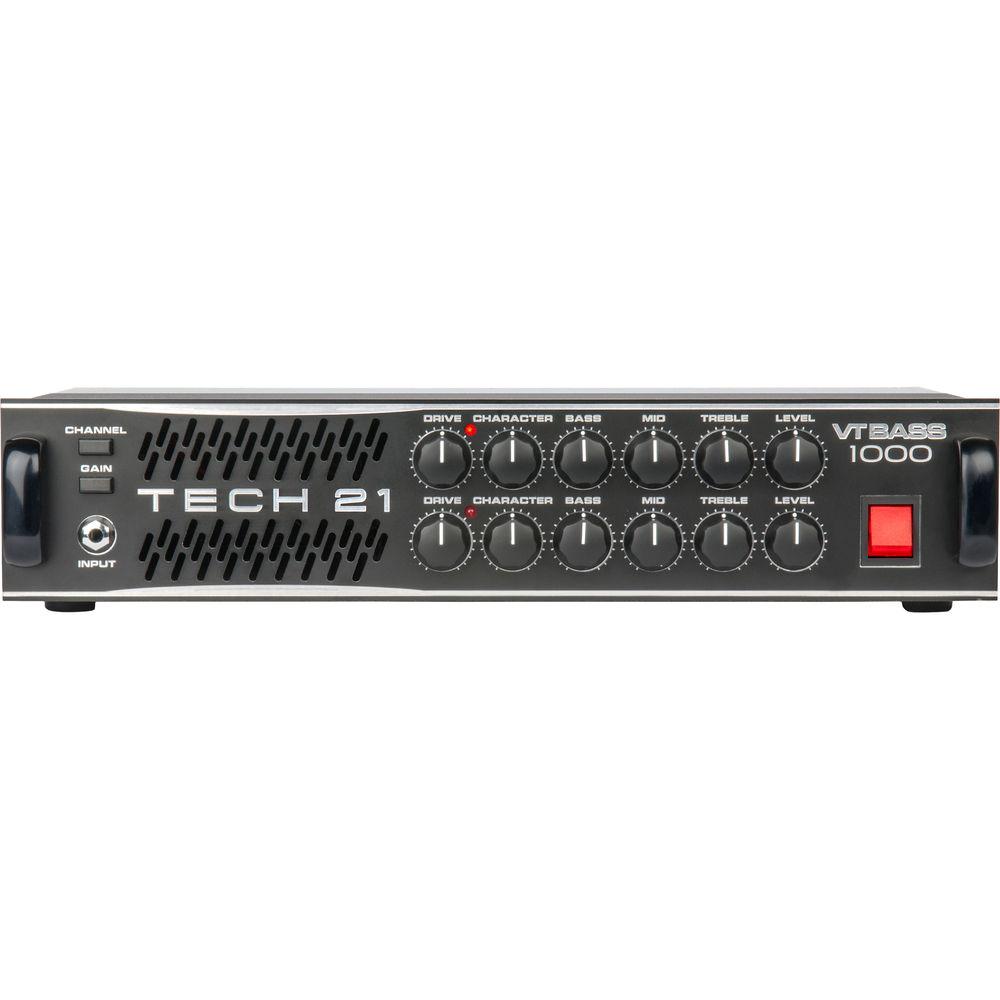

User Manual for TECH 21 VT Bass 1000 2-Channel 1000W Amplifier Head for Electric Bass

Click to enlarge the picture
TECH 21 VT Bass 1000 2-Channel 1000W Amplifier Head for Electric Bass Contents of the user manual for the TECH 21 VT Bass 1000 2-Channel
  • Product category: Bass Amplifiers TECH 21
  • Brand: TECH 21
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TECH 21 Bass Amplifiers

TECH 21 VT Bass 1000 2-Channel 1000W Amplifier Head for Electric Bass TECH 21 VT Bass 1000 2-Channel 1000W Amplifier Head for Electric Bass
User manual for the TECH 21 VT Bass 1000 2-Channel contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TECH 21 product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!



Product description

Designed by Tech 21—the company which brought you SansAmp—the VT Bass 1000 is an amplifier head intended for use with electric basses. Providing 1000W into 4-Ohm cabinets, or 600W into 8-Ohm cabinets, this amplifier offers a solid-state solution for chasing tube-based, Ampeg-style tone.The preamp of this unit is based on SansAmp technology; specifically the SansAmp Character-Series VT Bass DI series, giving you a continuously-variable Character control, which allows you to approximate the tones of popular amplifiers, with a strong focus on the Ampeg tonal profile.Controls include a Gain switch to suit active and passive basses alike, a Drive control is provided for gain, a character knob for cycling through various tones, and a 3-knob active EQ section. This is a two-channel amplifier, so two sets of the aforementioned controls are provided for achieving two different, switchable timbres. You can flip between the two channels with an on-board button, or the included footswitch. You can also use this footswitch to mute your output, and to simultaneously engage both channels. Various connection points are provided, including dual SpeakON jacks for cabinets, a buffered tuner output, and an XLR DI output to feed the PA, mixing board, recording interface, and more. A 10 dB pad and ground-lift switch help tailor the DI output to specific scenarios. You’ll also note the preamp and power-amp jacks, which double as an effects loop. A rackmount kit is included, should you want to rack your amp.
    Channel Selection
  • This amplifier provides two channels with identical controls. However, these channels-and their parameters-are independent, so you can set the character and drive completely different and switch between sections of material, either by pressing the channel-selector switch, or with the included footswitch. With the footswitch, you can also blend these channels.
    Drive, Character, Bass, Mid, and Treble Controls
  • Drive adjusts the overall amount of gain and overdrive, similar to driving the output of a tube amplifier. Character, on the other hand, cycles through tonal profiles, specifically of Ampeg-style amplifiers, giving you different models at the rotation of a knob. Character influences the attack, drive, and frequency response of the overall sound. Bass, Mid, and Treble are active tone controls that cut or boost ±12 dB from unity gain. Bass is tuned to 125 Hz, Mid is tuned to 500 Hz, and Treble frequency is 3.2 kHz. There are separate sets of controls per channel
    Gain Boost
  • A 10 dB gain boost switch is provided to set up the pre-amp for different pickups. For example, with lower output passive pickups, you can have punchier sounds with Gain engaged. Conversely, with higher output active pickups, you can have a cleaner sound with Gain disengaged. Of course, you can also obtain over-the-top distortion by using high-output pickups with Gain engaged.
    SansAmp XLR DI Output
  • For recording, the SansAmp XLR output is like having a DI box built into the amp. You can go direct to the board and get the same sound you hear coming out of the speakers into your recording medium. The SansAmp circuitry not only recreates the warm natural harmonics and overdrive characteristics inherent to tube amplifiers, its speaker emulation emulates a miked cabinet. For live gigs, you can use this output direct into the PA system, and you won't need to place a microphone in front of the amp. Also, you won't have to subject the audience to a sterile DI sound. A level selector switch on the DI circuit brings the overall volume down by -10 dB to accommodate a wide range of gear.
    Preamp Output and Power Amp Input
  • In addition to the standard functions of such connections, these 1/4" jacks can also be used as an effects loop.
    Tuner Output
  • As long as the unit is plugged in, the tuner output provides a constant, unaffected signal at all times, regardless of the position of the Level controls or the status of the Mute button on the Footswitch. This output can also be used as a buffered output to send a transparent signal to other outboard gear.
UPC: 837088002004 In the Box TECH 21 VT Bass 1000 2-Channel 1000W Amplifier Head for Electric Bass
  • Footswitch
  • Rackmount Kit
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TECH 21 VT Bass 1000 2-Channel 1000W Amplifier Head for Electric Bass in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    TECH 21 VT Bass 1000 Specs

    Amplifier Type Solid-State
    Output Power 1000 W RMS
    Channels 2
    Output Impedance 4/8 Ohms Mono
    Effects Loop Yes, Series
    Inputs 1 x 1/4" Mono Instrument
    1 x 1/4" Mono Footswitch
    1 x 1/4" Mono Power Amp
    Outputs 1 x 1/4" Mono Preamp
    1 x 1/4" Mono Tuner
    2 x speakON Mono External Speaker
    1 x XLR Mono DI
    Tone Section Channel 1: Bass, Channel Volume, Gain, Mid, Treble
    Channel 2: Bass, Channel Volume, Gain, Mid, Treble
    Dimensions (WxHxD) 17.0 x 3.5 x 11.0" / 431.8 x 88.9 x 279.4 mm Amplifier
    Weight 12 lb / 5.44 kg Amplifier
