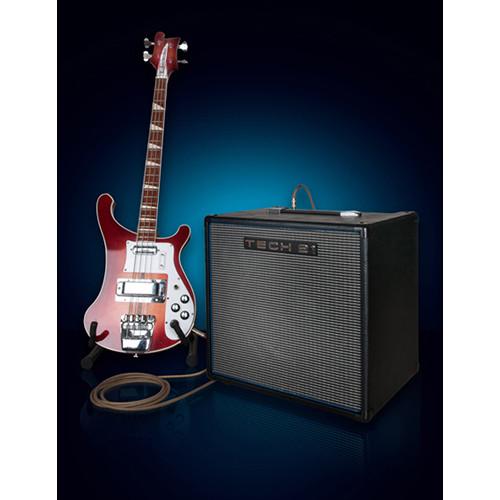

User Manual for TECH 21 VT Bass 200 1x12 200W Bass Combo Amplifier Click to enlarge the picture
Contents of the user manual for the TECH 21 VT Bass 200 1x12
- Product category: Bass Amplifiers TECH 21
- Brand: TECH 21
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TECH 21 Bass Amplifiers
|
User manual for the TECH 21 VT Bass 200 1x12 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TECH 21 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!
|

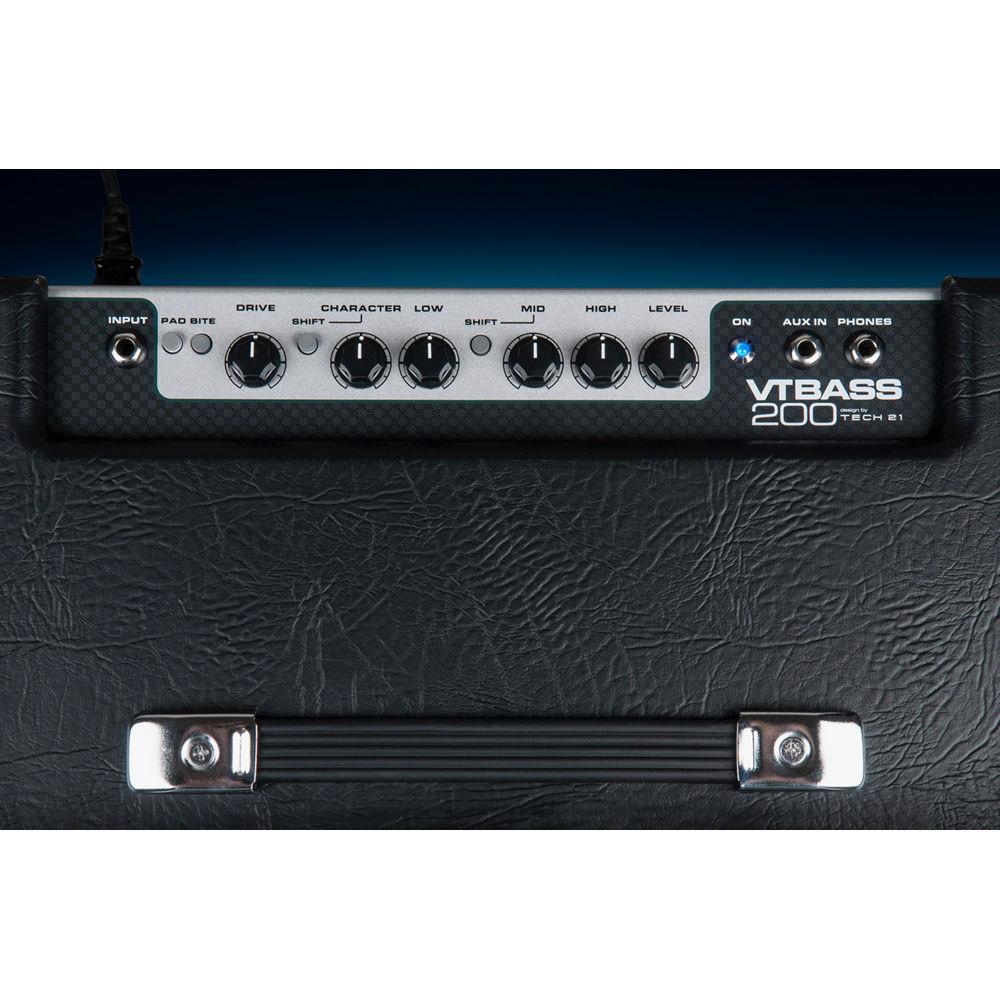

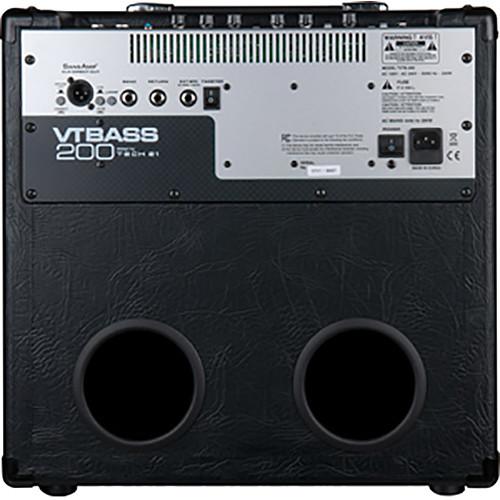

Product description The Tech21 VT Bass 200 is a combo amplifier intended for use with electric basses. It's capable of pushing 200W of power into its 4-Ohm, 12" speaker. The cabinet itself is rear-ported to facilitate low-end heft, and the amplifier boasts a tube-emulating overdrive circuit for introducing harmonic distortion into your signal path. A continuously variable Character control lets you choose between different tonal profiles, and a Character Switch provides even more timbre-tweaking possibilities. Other controls include a Bite switch, which instantiates a presence boost and adds definition to distorted signals, as well as Low, Mid, and High controls for equalization. The midrange knob also boasts a frequency-shifting switch that changes the center frequency from 1 kHz to 500 Hz. This gives you added options for boosting and cutting the midrange. You can use this amplifier with both active and passive basses thanks to a -10 dB pad switch. Turn your attention to the rear of the amplifier and you'll note a few connection points, including a 1/4" external speaker jack and a 1/4" effects loop for patching your external gear directly into the amp's signal path. If you'd like to send signal to your recording interface or house PA, you can use the XLR DI jack, which sports a ground-lift switch and Tech21's SansAmp Tube Amplifier Emulation technology. A 3.5mm auxiliary input and headphone output are also on hand. UPC: 837088002356 In the Box TECH 21 VT Bass 200 1x12 200W Bass Combo Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TECH 21 VT Bass 200 1x12 200W Bass Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTECH 21 VT Bass 200 Specs | Amplifier Type | Solid-State | Output Power | 200 W RMS | Channels | 1 | Tube Types | None | Output Impedance | 4 Ohms Mono | Effects Loop | Yes, Series | Built-In Effects | Distortion/Overdrive | Master Volume | Yes | Inputs | 1 x 1/4" Mono Instrument 1 x 1/4" Mono Effects Return 1 x 1/8" Stereo Aux | Outputs | 1 x XLR Mono DI 1 x 1/4" Mono Effects Send 1 x 1/4" Mono External Speaker | Tone Section | Channel 1: Bass, Mid, Tone, Treble | | Speaker Inputs | None | Speaker Through/Output | 1 x 1/4" | Configuration | 1 x 12" Speaker(s) | Cabinet Type | Straight Ported Mono | Power Rating | 200 W RMS | Input Impedance | 4 ohms Mono | | Dimensions (WxHxD) | 14.0 x 17.5 x 17.5" / 35.6 x 44.5 x 44.5 cm Combo | Weight | 28 lb / 12.70 kg Combo | | Package Weight | 36.3 lb | Box Dimensions (LxWxH) | 21.8 x 20.5 x 17.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
