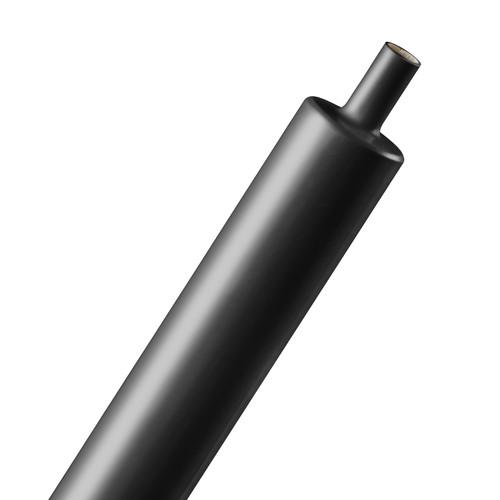

Product description The black Techflex 3:1 Adhesive Shrinkflex Tubing is a set of four 3" long pieces of 1" diameter heatshrink tubing designed to protect hoses, pipes, and wiring bundles for installers and maintenance technicians in industrial complexes, office buildings, vehicles, and outdoor environments. It is made of polyolefin and lined with adhesive, which melts upon reaching its shrink temperature and contributes to a weather-tight seal. It provides significant resistance to chemicals and oils, and offers a 3:1 shrink ratio for a tight, slip-free fit. Additionally, its dual-wall construction delivers enhanced durability. - Constructed of adhesive-lined polyolefin
- Shrinks to create a weather-tight seal
- 3:1 shrink ratio provides a snug fit
- High resistance to chemicals and oils
- Dual-wall construction increases durability
UPC: 738854036080 Table of Contents
|
Upload User Manual
Have you got an user manual for the Techflex 3:1 Adhesive Shrinkflex Tubing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechflex H3A1.00BK-KIT Specs | Diameter | Nominal: 1" / 25.4 mm
Unshrunk: 0.9" / 24 mm
Shrunk: 0.3" / 8 mm | | Operating Temperature | Minimum Continuous: -67°F / -55°C
Maximum Continuous: 257°F / 125°C
Shrinks: 194°F / 90°C | | Physical Properties | Tensile Strength PSI (ASTM D-638): 1500 lb / 680.4 kg
Elongation % (ASTM D-638): 200
Deformation %: 50 (maximum)
Secant Modulus PSI (MIL-DTL-23053): 25,000
Longitudinal Change % (MIL-DTL-23053): +5, -15
Heat Shock (482°F / 250°C, 4 h, MIL-DTL-23053): No cracking
Cold Bend (-67°F / -55°C, 4 h, MIL-DTL-23053): No cracking
Flexibility (316°F / 158°C, 168 h, MIL-DTL-23053): No cracking
Corrosion (ASTM DTL-23053): No corrosion
Fluid Resistance (73°F / 23°C, 24 h): 900 minutes | | Electrical Ratings | Dielectric Strength (ASTM D-149; V/mil): 500
Volume Resistivity (ASTM D-257; Ohm-cm): 1 x 1014 | | Flammability | Moisture Absorption % (ASTM D-570): 0.5
Flammability Rating: UL VW-1 | | Construction Material | Adhesive-lined polyolefin | | Grade | H3A | | Weight | 2.2 lb / 1 kg (per 100') | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 5.0 x 3.6 x 1.1" |
