User Manual for TechLogix Networx 1G Single-Mode SFP Transceiver Module Click to enlarge the picture
Contents of the user manual for the TechLogix Networx 1G Single-Mode SFP Transceiver
- Product category: Network Transceivers TechLogix Networx
- Brand: TechLogix Networx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TechLogix Networx Network Transceivers
 |
User manual for the TechLogix Networx 1G Single-Mode SFP Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TechLogix Networx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TechLogix Networx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TechLogix Networx product will considerably shorten its lifespan!
|

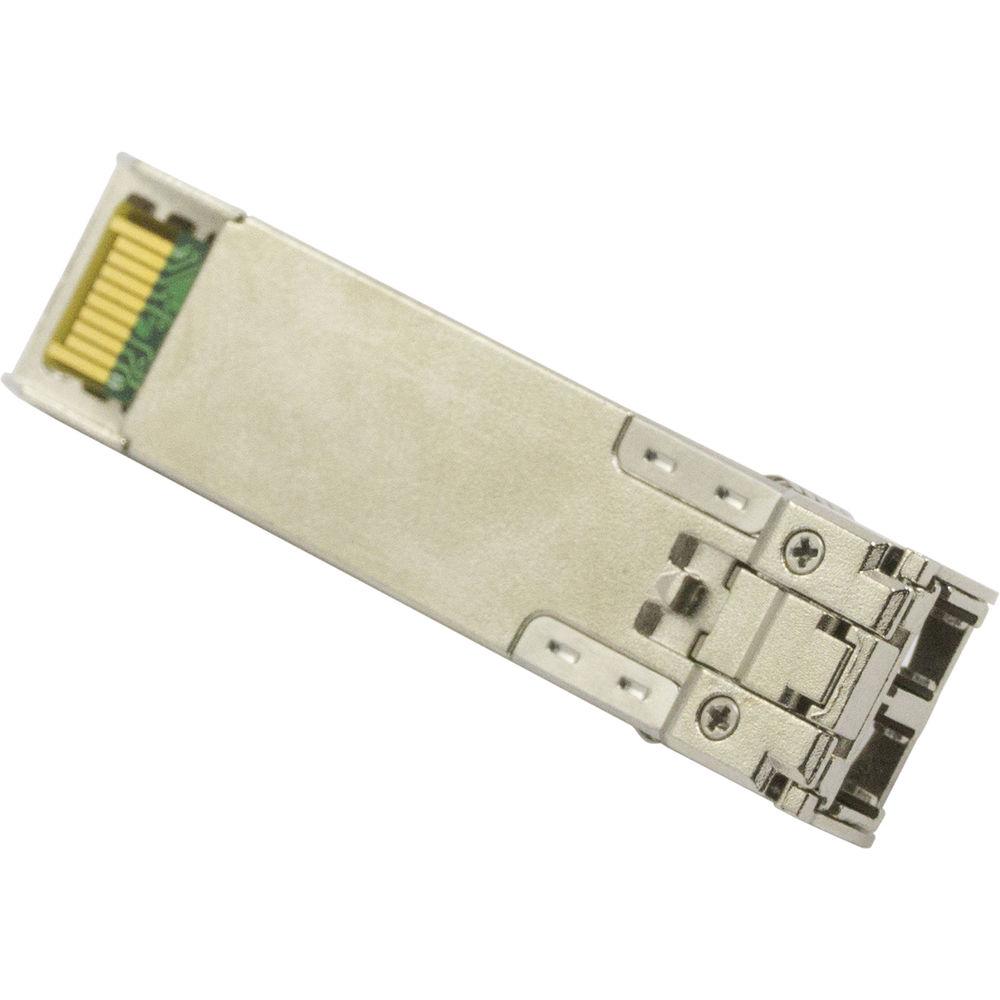

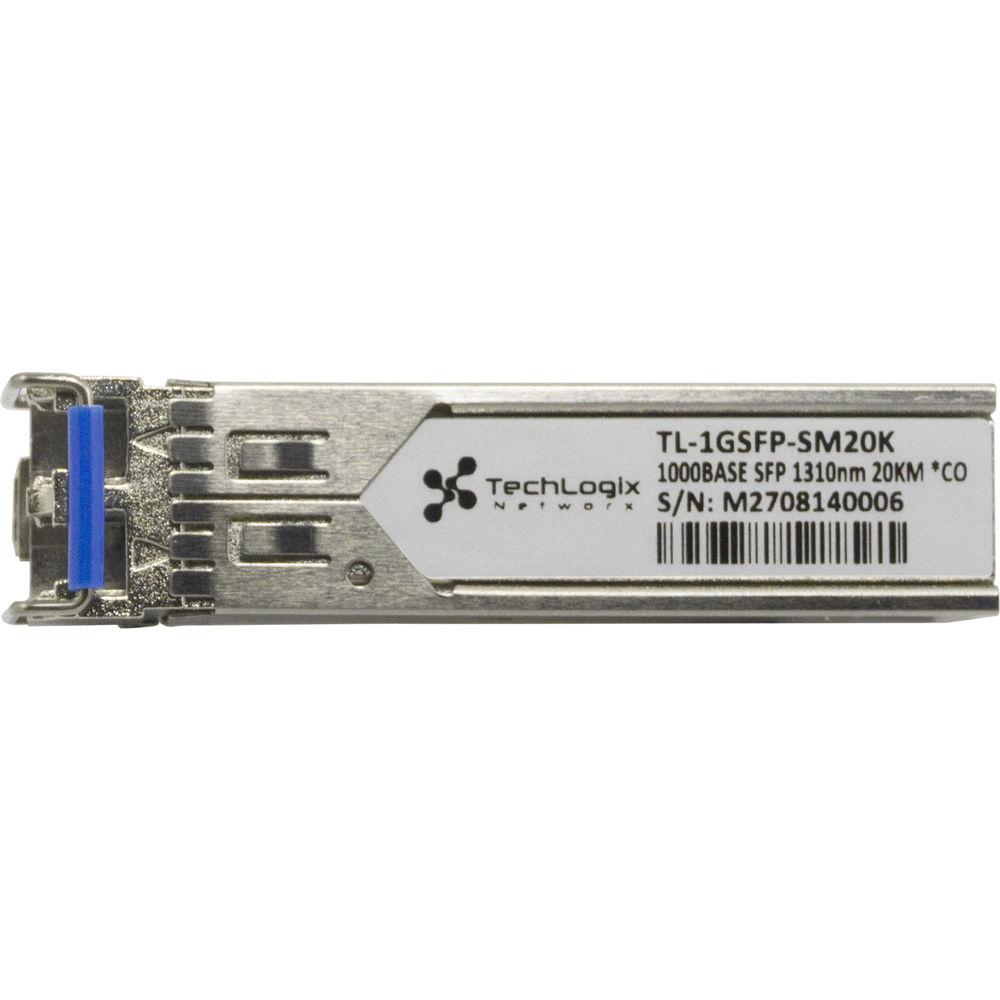

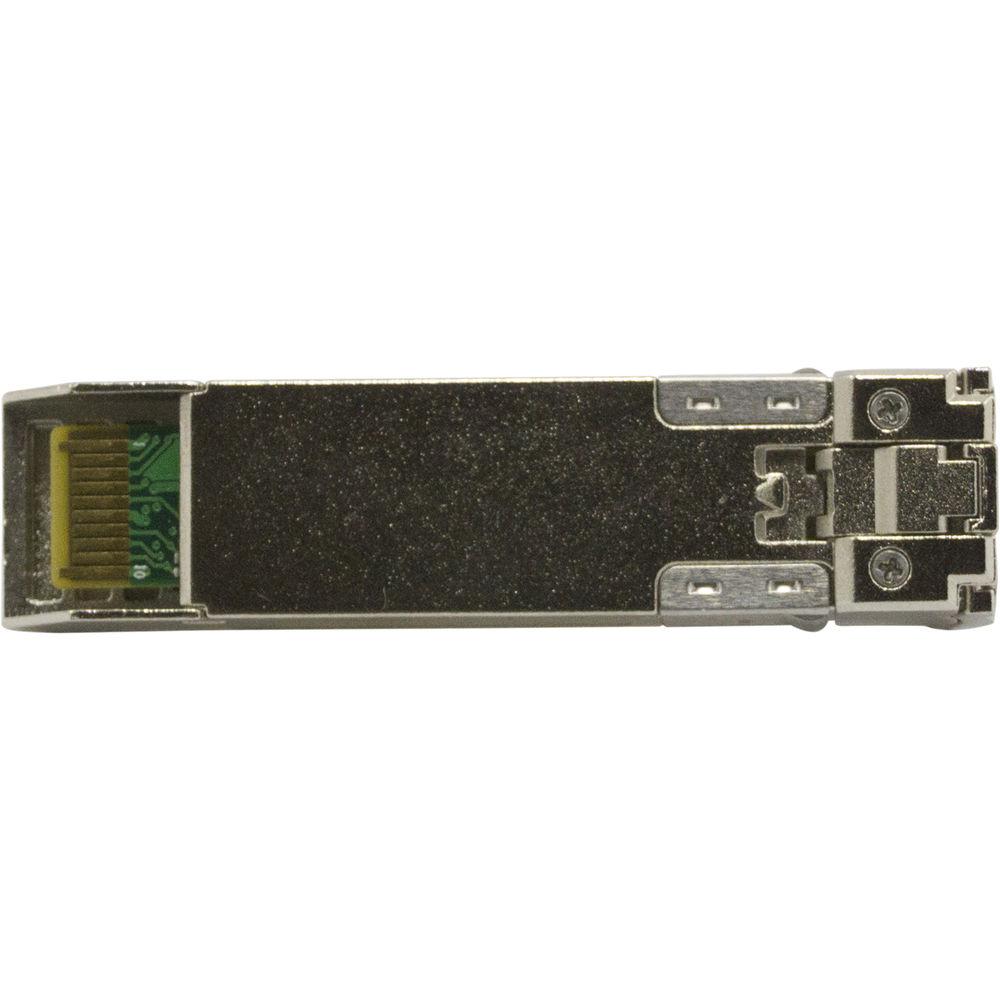

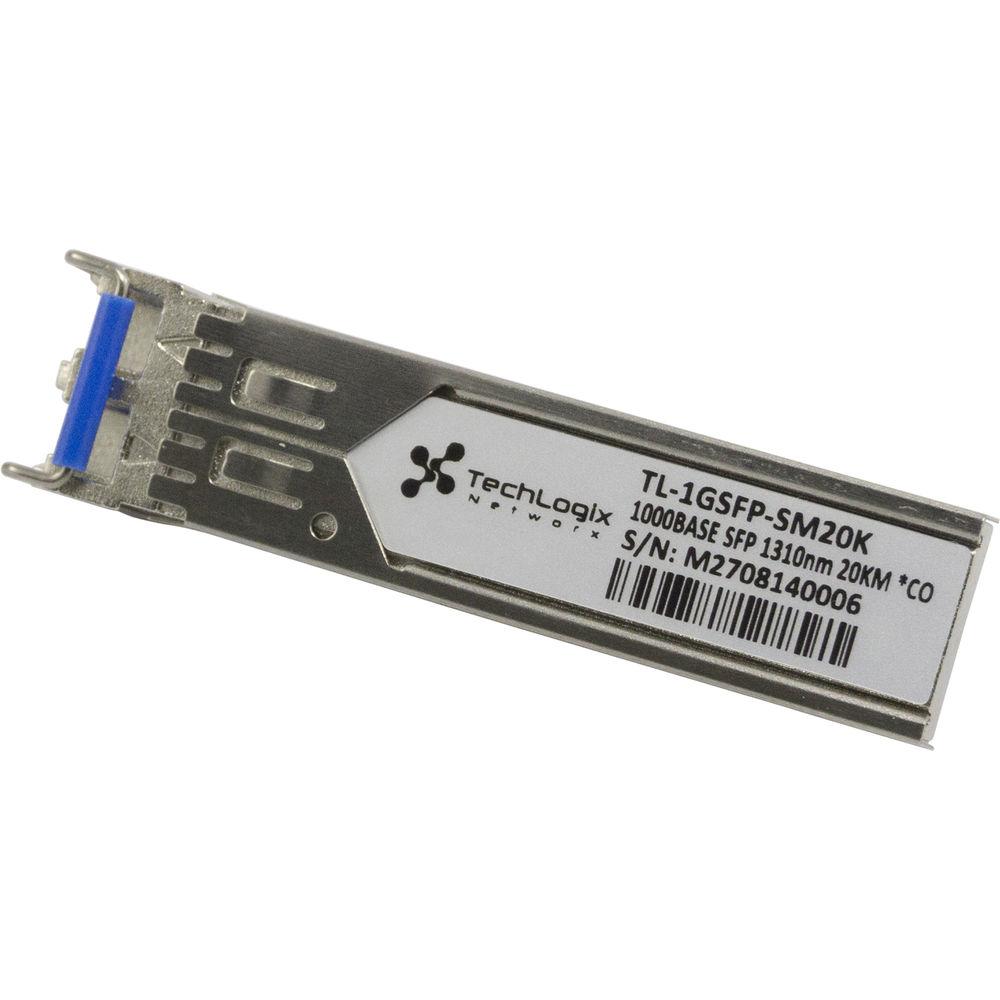

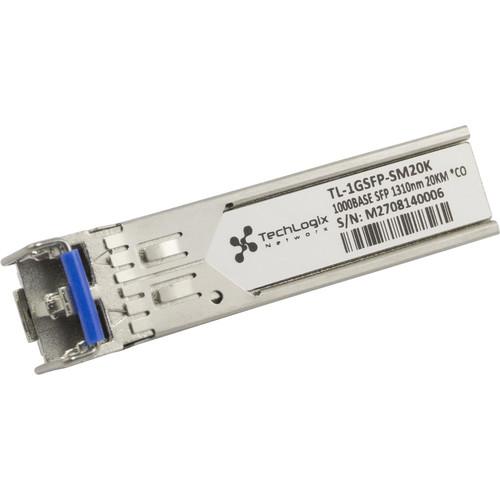

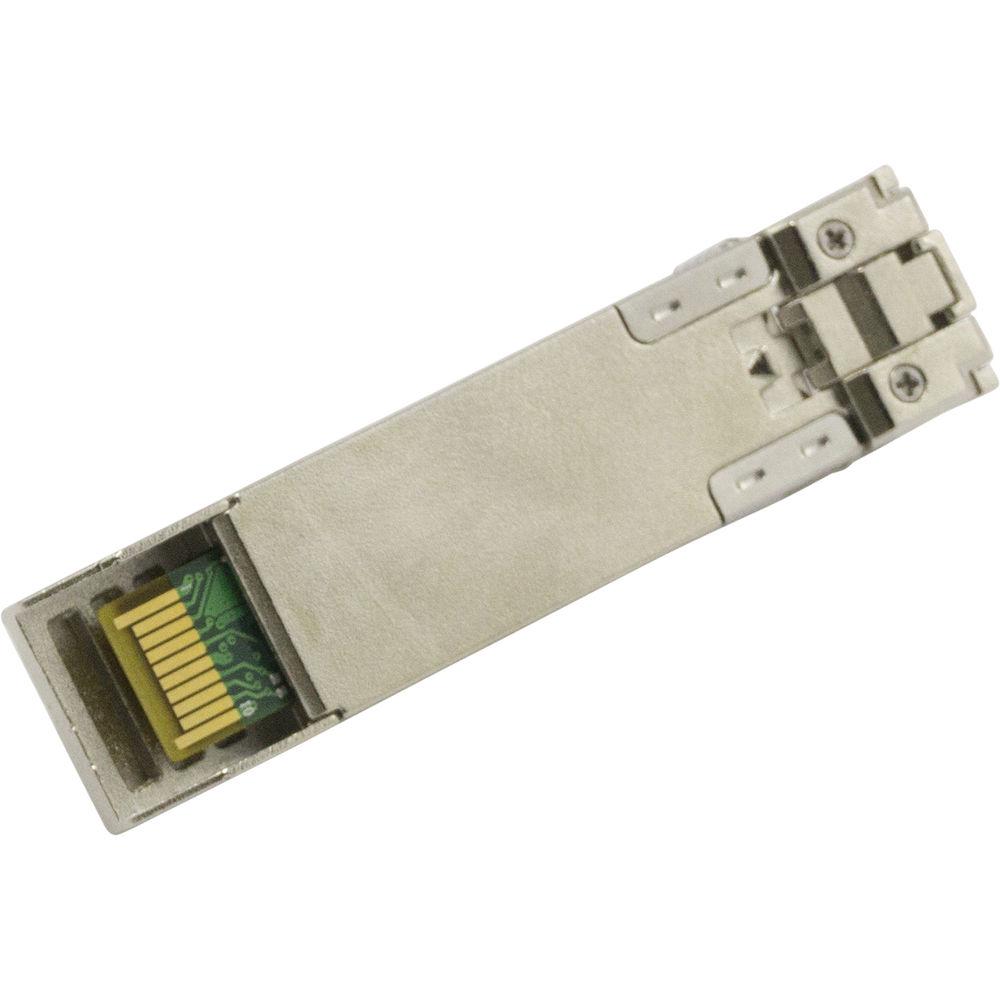

Product description Designed for single-mode fiber and operating at wavelengths of 1310nm, the 1G Single-Mode SFP Transceiver Module from TechLogix Networx is a small form factor pluggable module for bi-directional serial optical data communications, such as Gigabit Ethernet 1000BASE-LX and Fiber Channel 1x SM-LC-L FC-PI. The SFP 20-pin connector allows for hot-plug capability and will adapt TechLogix fiber technology to different cable formats, transmitting 1G signals up to 12.4 miles over duplex single-fiber mode.
The transmitter section uses a multiple quantum well 1310nm laser and is Class 1 laser compliant, according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector pre-amplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The 1GSFP-SM20K is compliant with the SFF-8472 SFP Multi-Source Agreement (MSA). General Features - Operating data rate of up to 1.25 Gb/s for Ethernet and 1.063 Gb/s for Fiber Channel
- Transmits signals up to 12.4 miles / 19.9 km over duplex single-mode fiber with 9/125 μm SMF
- Single 3.3V power supply and TTL Logic interface
- Hot-pluggable SFP footprint
- Duplex LC connector interface
- Class 1 FDA and IEC60825-1 LaserSafety compliant
- Built-in digital diagnostic functions, including optical power monitoring
- Compliant the with MSA SFP specification
UPC: 816927021253 In the Box TechLogix Networx 1G Single-Mode SFP Transceiver Module Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TechLogix Networx 1G Single-Mode SFP Transceiver Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechLogix Networx TL-1GSFP-SM20K Specs | Form Factor | SFP | | Ethernet Standards | IEEE 802.3ah | | Ports | 1 x Duplex LC | | Networking Technology | 1000BASE-LX | | Maximum Networking Distance | 12.4 mi / 19.96 km | | Maximum Data Rate | 1.24 Gb/s | | Mode | Single-Mode | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -40 to 185°F / -40 to 85°C |
