User Manual for TechLogix Networx 2x1 HDMI & VGA Switcher Click to enlarge the picture
Contents of the user manual for the TechLogix Networx 2x1 HDMI & VGA
- Product category: Routers & Switchers TechLogix Networx
- Brand: TechLogix Networx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TechLogix Networx Routers & Switchers
|
User manual for the TechLogix Networx 2x1 HDMI & VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TechLogix Networx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TechLogix Networx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TechLogix Networx product will considerably shorten its lifespan!
|

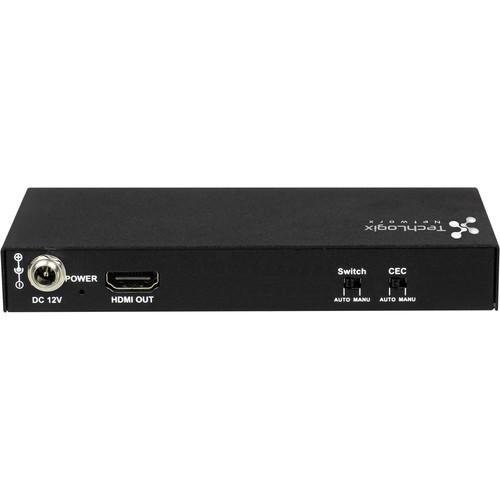

Product description The 2x1 HDMI & VGA Switcher from TechLogix Networx features direct CEC control, offering one HDCP compliant HDMI input, a VGA with analog stereo audio input, and an HDMI output up to 4K @ 60 Hz (Chroma sub-sampling 4:2:0 8-bit only) without scaler. The built-in CEC controller allows the user to directly switch the power status of a CEC-supported display device, such as a TV or projector, eliminating the need for an IR remote. The select buttons on the front panel help users to choose input sources, or power on/off the display device. -
- One VGA plus 3.5mm stereo audio input with maximum resolution support of up to 1920 x 1200 @ 60 Hz
- One HDMI input with maximum resolution support up to 4K @ 60 Hz (Chroma sub-sampling 4:2:0 8-bit only)
- Auto-sense and switching to the latest input
- CEC controller built-in to power on/off sink device by auto-detecting the source status
- Adjust the working mode via "Switch" and "CEC" DIP switch
UPC: 816927020003 In the Box TechLogix Networx 2x1 HDMI & VGA Switcher Mounting Ear Set Power Adapter (12 VDC, .5A) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TechLogix Networx 2x1 HDMI & VGA Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechLogix Networx TL-2X1-HDV Specs | Input | 2 x HDMI
1 x VGA | | Input Signal | HDMI: HDMI 1.4 with HDCP
VGA: VESA | | Input Resolution | HDMI:
4096 x 2160 @ 24/25/30/50/60 Hz
3840 x 2160 @ 24/25/30/50/60 Hz
1080p, 1080i
720p
576p, 576i
480p, 480i
VGA:
1920 x 1200/1080
1680 x 1050
1600 x 1200/900
1400 x 1050
1440 x 900
1366 x 768
1280 x 1024
1280 x 800/768/720
1024 x 768
800 x 600
640 x 480 @ 60 Hz | | Input Video Level | 0.5 to 1 Vpp | | Maximum Pixel Clock | HDMI: 340 MHz
VGA: 165 MHz | | Output | 1 x HDMI | | Output Signal | HDMI 1.4 with HDCP | | Output Resolution | VESA @ 60 Hz:
1920 x 1200
1680 x 1050
1600 x 1200/900
1440 x 900
1366 x 768
1360 x 768
1280 x 1024/960/800/768
1024 x 768
800 x 600
640 x 480
SMPTE:
3840 x 2160 @ 30 Hz
1920 x 1080 @ 50/60 Hz
1280 x 720 @ 50/ 60 Hz
720 x 576 @ 50 Hz
720 x 480 @ 60 Hz | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90%, non-condensing | | ESD Protection | Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Surge Protection | Voltage: ±1 kV
(Ten times respectively for the positive and negative voltage) | | Maximum Burst Discharge | Data Communication Cord: 1 kV
Power Cord: 2 kV | | Power Supply | 12 VDC, 0.5 A | | Power Consumption | 1.5 W maximum | | Certification | CE, FCC | | Dimensions | 5.5 x 2.5 x 0.7" (14.2 x 6.4 x 2.0 cm) | | Weight | 7.8 oz (221 g) |
