User Manual for TechLogix Networx 3x1 HDMI & VGA Collaboration Video Switcher Click to enlarge the picture
Contents of the user manual for the TechLogix Networx 3x1 HDMI & VGA
- Product category: Routers & Switchers TechLogix Networx
- Brand: TechLogix Networx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TechLogix Networx Routers & Switchers
|
User manual for the TechLogix Networx 3x1 HDMI & VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TechLogix Networx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TechLogix Networx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TechLogix Networx product will considerably shorten its lifespan!
|

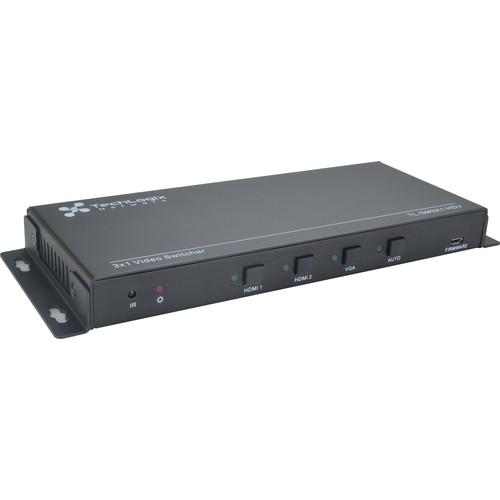

Product description The 3x1 HDMI & VGA Collaboration Video Switcher from TechLogix features two HDMI inputs, one VGA input, and one HDMI output. It supports HDMI video resolutions up to 4K@30 Hz, as well as multichannel audio.The switcher also supports two operating modes: auto-switch and manual switch. When in auto-switch mode, the unit automatically switches to a signal input as soon as a new source is connected. When the active source is removed, the unit will select the first source on the lowest numbered input. In manual switch mode, the switcher switches between connected inputs when a control command is sent to the unit via IR or through a command sent by compatible table inserts, or by using the buttons on the unit's front panel.In addition to controlling the switching of the source inputs, the switcher also controls an HDMI-connected display via CEC commands. This allows for automatic power on/off commands to be transmitted from the unit (as well as connected table inserts) to the display, thereby providing a complete room connectivity and control solution. - Key Features
-
- Two HDMI inputs & one VGA input
- One HDMI output
- HDMI video resolution up to 4K@30 Hz 4:4:4
- HDMI 1.4 & HDCP 1.4 compliant
- MHL support on HDMI input channel 1
- IR remote control & front panel control
- Integration with TechLogix table inserts for signal pass-through & remote control
- Built-in scaling up to 1080p/1920 x 1200 per channel
- Micro-USB firmware port
- EDID pass-through
- CEC pass-through with display control
- Hot-plug support
UPC: 816927020775 In the Box TechLogix Networx 3x1 HDMI & VGA Collaboration Video Switcher IR Remote Power Adapter (12 VDC, 1A) 2 x Mounting Rails 8 x Mounting Screws for Rails 4 x Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TechLogix Networx 3x1 HDMI & VGA Collaboration Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechLogix Networx TL-SM3X1-HDV Specs | | | Video Input | 1 x VGA
2 x HDMI | | Input Video Signal | HDMI | | Video Output | 1 x HDMI | | Video output connector | Female HDMI port | | Output Video Signal | HDMI | | Output Resolution | HDMI video support HDMI 1.4 & HDCP 1.4; maximum resolution of 4K@30 | | | | Control Port | 3 x Dry contact (C1 to C3)
1 x Firmware | | Control Connector | 3 x 3.5 mm mini jack
1 x Micro-USB | | Control Buttons | HDMI 1, HDMI 2, HDMI 3, Auto | | | | Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 10 to 90% | | Power Supply | 12 VDC, 1 A | | Power Consumption | 2 W | | Dimension | 7.9 x 0.9 x 3.3" (20.0 x 2.2 x 8.4 cm) | | Weight | 8.7 oz (246 g) | | | | Package Weight | 1.945 lb | | Box Dimensions (LxWxH) | 12.45 x 9.55 x 3.15" |
