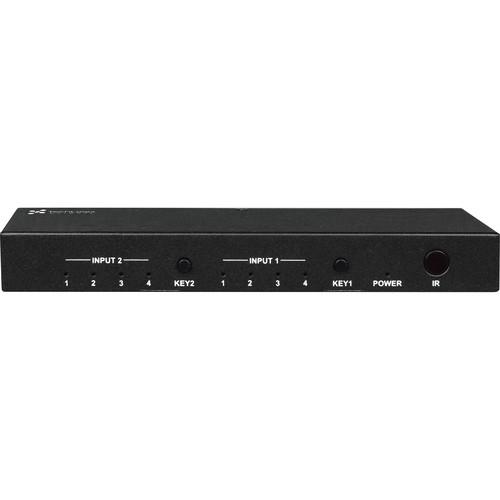

Product description The 4x2 4K HDMI Matrix Switcher from TechLogix Networx distributes four HDMI source signal to up to two HDMI displays. The HDCP compliant matrix supports resolutions up to 4K @ 30 Hz and 1080p @ 60 Hz. It features automatic EDID management, which provides copy/fixed EDID options for different output resolutions, and HDCP management, which authenticates HDCP encryption between all devices, ensuring the HDMI source reliably outputs correct content for display. The 4x2 HDMI Matrix is suitable for areas where the distribution of an HDMI source signal to multiple displays is required, including offices, schools, conferences rooms, shopping malls, hotels, and museums. -
- HDCP 1.4 compliant
- HDMI 4K transmission at a 49' distance
- IR remote control included
- Supports CEC TV power control
- Supports stereo audio output
UPC: 816927020058 In the Box TechLogix Networx 4x2 4K HDMI Matrix Switcher 2 x Mounting Ear IR Remote Power Adapter (12 VDC, 1A) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TechLogix Networx 4x2 4K HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechLogix Networx TL-4X2-HD Specs | Input/Output Connectors | 4 x HDMI in
2 x HDMI out
1 x Audio out
1 x IR remote | | Signal Type | HDMI 1.4 | | Resolution Support | 4096 x 2160 @ 30 Hz
3840 x 2160 @ 30 Hz
1920 x 1200 @ 60 Hz
1080p, 1080i
720p
576p, 576i
480p, 480i | | Input Video Signal | 0.5 to 1 Vpp | | Input DDC Signal | 5 Vpp | | Certification | CE, FCC, RoHS | | ESD Protection | Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90%, non-condensing | | Power Supply | 12 VDC, 1 A | | Power Consumption | 5 W maximum | | Dimensions | 7.2 x 0.7 x 3.0" (18.2 x 2.2 x 7.7 cm) | | Weight | 12 oz (340 g) | | | | Package Weight | 1.61 lb | | Box Dimensions (LxWxH) | 10.0 x 6.85 x 3.1" |
