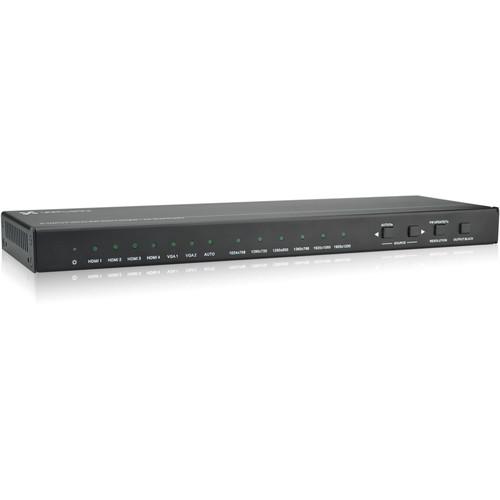

User Manual for TechLogix Networx 6x1 Compact HDMI VGA Scaler Switcher Click to enlarge the picture
Contents of the user manual for the TechLogix Networx 6x1 Compact HDMI VGA
- Product category: Routers & Switchers TechLogix Networx
- Brand: TechLogix Networx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TechLogix Networx Routers & Switchers
|
User manual for the TechLogix Networx 6x1 Compact HDMI VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TechLogix Networx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TechLogix Networx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TechLogix Networx product will considerably shorten its lifespan!
|
Product description The 6x1 Compact HDMI/VGA Scaler Switcher from TechLogix Networx features six video inputs (four HDMI and two VGA), two auxiliary audio inputs (switched following VGA), one HDMI output, and three audio outputs (one dual-mono analog audio, one 3.5mm stereo audio, and one optical audio). It switches VGA or HDMI/DVI input signal to HDMI output. The unit upscales VGA to HDMI output and supports six resolution adjustments. HDMI bypasses the scalers and provides comprehensive resolution capabilities up to 4K and 1080p 3D. The unit also supports RS-232/IR control, and EDID management. -
- Six switchable input sources to one HDMI output
- Transmits 4K signal for up to 49'
- Supports EDID management
- Two input switching modes: auto and manual switching
- Intuitive indicator for power connect states, source selection, and output resolution selection
- Supports audio and video output management via Output Black button
- Supports online software upgrading
- Can be controlled via buttons on the front panel, via RS-232 commands, or via IR remote
- Supports HDMI 1.4, 4K, and 1080p 3D
- HDCP 1.4 compliant
- Compact design for easy installation
- Supports power-off memory
- Hot-pluggable
UPC: 816927020072 In the Box TechLogix Networx 6x1 Compact HDMI/VGA Scaler Switcher 2 x Mounting Ear 4 x Screw 4 x Rubber Foot 2 x 3-Pin Pluggable Terminal Block IR Receiver RS-232 Cable IR Remote (Battery Not Included) Power Adapter (5 VDC, 3A) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TechLogix Networx 6x1 Compact HDMI VGA Scaler Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechLogix Networx TL-6X1-HDV Specs | | | Video Compatibility | Deep Color 48/36/30/24-bit at 1080p, 3D, and 4K | | Scaling | VGA @ 60 Hz:
1920 x 1200
1920 x 1080
1360 x 768
1280 x 800
1280 x 720
1024 x 768 | | EDID | HDMI:
Pass-through from display, 1080p and PCM 2-channel, 1080p and 5.1 channel, 1080p 3D and 5.1 channel, 1080i and PCM 2-channel, 4K and PCM 2-channel
VGA:
1360 x 768 | | Compliance | HDMI, HDCP, and CEC (Consumer Electronics Control) | | Embedded Audio | Up to 8-channel, Dolby Digital TrueHD, and DTS-HD master audio
Input/Output: Up to PCM 6-channel | | Audio Frequency Response | Digital (Optical):
PCM: 6-channel (5.1) at 16, 20, or 24-bit
Analog:
20 Hz to 20 kHz | | Input Impedance | Over 10 kOhms | | Output Impedance | 50 Ohms | | HDMI Distance | 49' (15 m) | | IR Range | 33 to 55 kHz at 5 V | | | | HDMI Input | 4 x Type A, female | | VGA Input | 2 x 15-pin VGA, female | | Audio Input | 2 x 1/8" (3.5 mm) TRS jack | | HDMI Output | 1 x Type A, female | | Audio Output | 1 x 3-pin captive screw connector
1 x 1/8" (3.5 mm) TRS jack
1 x Optical jack | | IR | Input: 1 x 1/8" (3.5 mm) TRS jack | | RS-232 | 1 x 3-pin captive screw connector | | Control Button | 4 x Button on front panel | | Firmware Updates | 1 x USB type A receptacle | | Power | 1 x Locking Barrel: 0.2" (5.5 mm) outside diameter / 0.1" (2.1 mm) inside diameter | | Indicators | 1 x Power
2 x Source select
6 x Resolution select | | | | Power Supply | 52 VDC; 3 A | | Power Consumption | 3.8 W | | | | ESD Protection | 15 kV | | Regulatory | CE, FCC | | Operating Temperature | Environment: 32 to 104° F (0 to 40°C)
Chassis: 113°F (45°C) | | Operating Humidity | 10 to 90%, non-condensing | | Storage Temperature | 5 to 158°F (-15 to 70°C) | | Storage Humidity | 10 to 90%, non-condensing | | | | Enclosure | Painted aluminum | | Dimensions | 13.8 x 1.1 x 4.3" (35.0 x 2.8 x 11.0 cm) | | Weight | Not specified by the manufacturer |
