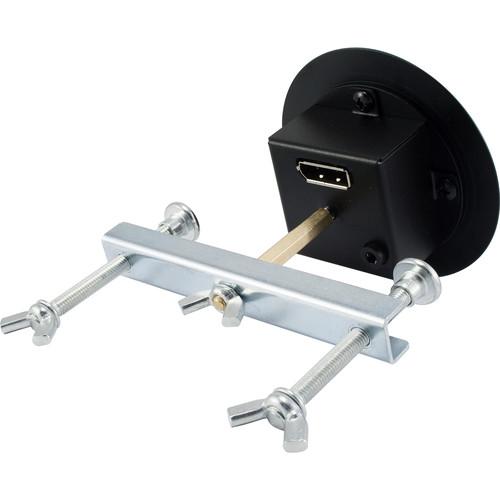

User Manual for TechLogix Networx Show-Me DisplayPort Table Grommet Click to enlarge the picture
Contents of the user manual for the TechLogix Networx Show-Me DisplayPort Table Grommet
- Product category: Router, Switcher & Patchbay Accessories TechLogix Networx
- Brand: TechLogix Networx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TechLogix Networx Router, Switcher & Patchbay Accessories
|
User manual for the TechLogix Networx Show-Me DisplayPort Table Grommet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TechLogix Networx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TechLogix Networx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TechLogix Networx product will considerably shorten its lifespan!
|
Product description Provided by third party: TechLogix SM Series table inserts redefine the usability, versatility and cost of huddle room, meeting room and classroom collaboration. When paired with a compatible presentation switcher, the SM Series system provides both AV switching and display control for the cost of most 40" displays.
Simply put, an entire meeting can be run with only two buttons: an "on/off" button which turns the switcher and the display on or off, and a "show-me" button which switches the active input channel to the table insert on which the button was pressed.
The system also features automatic switching for sources that are not connected to the table inserts, such as media players, fixed PCs, or document cameras. When a source is connected and/or powered on, the system will recognize the input and automatically switch to that channel.
The TechLogix SM Series is also designed for an extremely quick installation. Simply mount the switcher under the podium or conference room table, mount the table inserts in pre-cut holes sized from 36mm through 60mm, and connect the table inserts to the switcher using standard AV cables (HDMI, DisplayPort, or VGA) and a 3.5mm cable. All power and control commands are sent from the table inserts to the switcher via the 3.5mm cable, and all display on/off commands are sent from the switcher to the display via CEC over an HDMI cable.
- Key Features
-
- DisplayPort input on table top
- DisplayPort and 3.5mm control outputs on bottom
- Buttons for display on/off and switching
- Fits 2.25" (57mm) table grommet hole
- Fully powered through 3.5mm control cable
- Mounts securely to the table
UPC: 816927020706 Table of Contents
|
Upload User Manual
Have you got an user manual for the TechLogix Networx Show-Me DisplayPort Table Grommet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechLogix Networx TL-SMG-DP Specs | | | Product Type | Surface mount outlet | | Placing / Mounting | Desk mountable | | | | Connector Provided | 1 x 20 pin DisplayPort female | | | | Features | 57 mm diameter hole | | | | Service & Support | Limited warranty - 3 years |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
