Product description

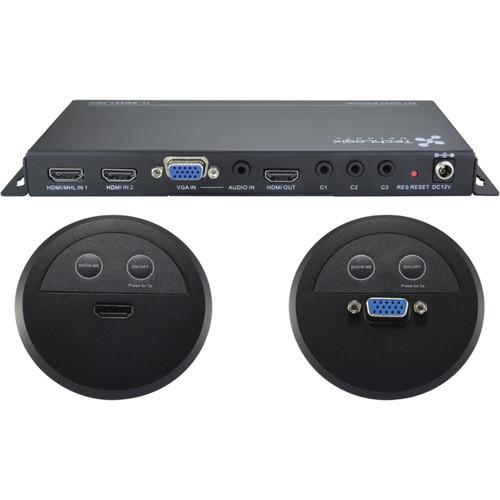

• 3x1 HDMI & VGA Collaboration Video Switcher The 3x1 HDMI & VGA Collaboration Video Switcher from TechLogix features two HDMI inputs, one VGA input, and one HDMI output. It supports HDMI video resolutions up to 4K@30 Hz, as well as multichannel audio.The switcher also supports two operating modes: auto-switch and manual switch. When in auto-switch mode, the unit automatically switches to a signal input as soon as a new source is connected. When the active source is removed, the unit will select the first source on the lowest numbered input. In manual switch mode, the switcher switches between connected inputs when a control command is sent to the unit via IR or through a command sent by compatible table inserts, or by using the buttons on the unit's front panel.In addition to controlling the switching of the source inputs, the switcher also controls an HDMI-connected display via CEC commands. This allows for automatic power on/off commands to be transmitted from the unit (as well as connected table inserts) to the display, thereby providing a complete room connectivity and control solution.
  Key Features
  • • Two HDMI inputs & one VGA input
    • One HDMI output
    • HDMI video resolution up to 4K@30 Hz 4:4:4
    • HDMI 1.4 & HDCP 1.4 compliant
    • MHL support on HDMI input channel 1
    • IR remote control & front panel control
    • Integration with TechLogix table inserts for signal pass-through & remote control
    • Built-in scaling up to 1080p/1920 x 1200 per channel
    • Micro-USB firmware port
    • EDID pass-through
    • CEC pass-through with display control
    • Hot-plug support
  UPC: 816927020775
• Show-Me HDMI Table Grommet Provided by third party: TechLogix SM Series table inserts redefine the usability, versatility and cost of huddle room, meeting room and classroom collaboration. When paired with a compatible presentation switcher, the SM Series system provides both AV switching and display control for the cost of most 40" displays.
  Simply put, an entire meeting can be run with only two buttons: an "on/off" button which turns the switcher and the display on or off, and a "show-me" button which switches the active input channel to the table insert on which the button was pressed.
  The system also features automatic switching for sources that are not connected to the table inserts, such as media players, fixed PCs, or document cameras. When a source is connected and/or powered on, the system will recognize the input and automatically switch to that channel.
  The TechLogix SM Series is also designed for an extremely quick installation. Simply mount the switcher under the podium or conference room table, mount the table inserts in pre-cut holes sized from 36mm through 60mm, and connect the table inserts to the switcher using standard AV cables (HDMI, DisplayPort, or VGA) and a 3.5mm cable. All power and control commands are sent from the table inserts to the switcher via the 3.5mm cable, and all display on/off commands are sent from the switcher to the display via CEC over an HDMI cable.

  Key Features
  • • HDMI input on table top
    • HDMI and 3.5mm control outputs on bottom
    • Buttons for display on/off and switching
    • Fits 2.25" (57mm) table grommet hole
    • Fully powered through 3.5mm control cable
    • Mounts securely to the table
  UPC: 816927020713
• Show-Me VGA Table Grommet Provided by third party: TechLogix SM Series table inserts redefine the usability, versatility and cost of huddle room, meeting room and classroom collaboration. When paired with a compatible presentation switcher, the SM Series system provides both AV switching and display control for the cost of most 40" displays.
  Table inserts are available for HDMI, VGA and DisplayPort source devices, providing connectivity for sources such as laptops and tablets, as well as display on/off and source selection control that is simple enough for any user to understand with virtually no training.
  Simply put, an entire meeting can be run with only two buttons: an "on/off" button which turns the switcher and the display on or off, and a "show-me" button which switches the active input channel to the table insert on which the button was pressed.
  The system also features automatic switching for sources that are not connected to the table inserts, such as media players, fixed PCs, or document cameras. When a source is connected and/or powered on, the system will recognize the input and automatically switch to that channel.
  The TechLogix SM Series is also designed for an extremely quick installation. Simply mount the switcher under the podium or conference room table, mount the table inserts in pre-cut holes sized from 36mm through 60mm, and connect the table inserts to the switcher using standard AV cables (HDMI, DisplayPort, or VGA) and a 3.5mm cable. All power and control commands are sent from the table inserts to the switcher via the 3.5mm cable, and all display on/off commands are sent from the switcher to the display via CEC over an HDMI cable.

  Key Features
  • • VGA input on table top
    • VGA and 3.5 mm control outputs on bottom
    • Buttons for display on/off and switching
    • Fits 2.25" (57 mm) table grommet hole
    • Fully powered through 3.5 mm control cable
    • Mounts securely to the table
• Show-Me 3.5mm to 3.5mm Plug Control Cable (6')
  Key Features
  • • Connects the 3x1 collaboration switchers to the table inserts
    • Pre-terminated 3.5 mm connections on both ends
    • Provides control and powers the inserts
  UPC: 816927020850

• IR Remote

• Power Adapter (12 VDC, 1A)

• 2 x Mounting Rails

• 8 x Mounting Screws for Rails

• 4 x Rubber Feet

• Limited 3-Year Warranty

Also Includes

• HDMI Cable (6')
• VGA Cable (6')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 3x1 HDMI & VGA Collaboration Video Switcher

  Video Input	1 x VGA 2 x HDMI
  Input Video Signal	HDMI
  Video Output	1 x HDMI
  Video output connector	Female HDMI port
  Output Video Signal	HDMI
  Output Resolution	HDMI video support HDMI 1.4 & HDCP 1.4; maximum resolution of 4K@30

  Control Port	3 x Dry contact (C1 to C3) 1 x Firmware
  Control Connector	3 x 3.5 mm mini jack 1 x Micro-USB
  Control Buttons	HDMI 1, HDMI 2, HDMI 3, Auto

  Temperature	32 to 122°F (0 to 50°C)
  Humidity	10 to 90%
  Power Supply	12 VDC, 1 A
  Power Consumption	2 W
  Dimension	7.9 x 0.9 x 3.3" (20.0 x 2.2 x 8.4 cm)
  Weight	8.7 oz (246 g)

  Box Dimensions (LxWxH)	12.45 x 9.55 x 3.15"

• Show-Me HDMI Table Grommet

  Product Type	Surface mount outlet
  Placing / Mounting	Desk mountable

  Connector Provided	1 x 19 pin HDMI Type A female

  Features	57 mm diameter hole

  Service & Support	Limited warranty - 3 years

  Box Dimensions (LxWxH)	4.5 x 3.75 x 0.55"

• Show-Me VGA Table Grommet

  Product Type	Surface mount outlet
  Placing / Mounting	Desk mountable

  Connector Provided	1 x 15 pin HD D-Sub (HD-15) female

  Features	57 mm diameter hole

  Service & Support	Limited warranty - 3 years

• Show-Me 3.5mm to 3.5mm Plug Control Cable (6')

  Cable Type	Audio cable
  Jacket Material	PVC
  Length	6 ft
  Color	Black

  CONNECTOR	Mini-phone stereo 3.5 mm - male
  Connector (Second End)	Mini-phone stereo 3.5 mm - male

  Box Dimensions (LxWxH)	3.0 x 0.5 x 0.05"
