User Manual for Technical Pro 12'' Portable Subwoofer Click to enlarge the picture
Contents of the user manual for the Technical Pro 12'' Portable Subwoofer
- Product category: PA Speakers Technical Pro
- Brand: Technical Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Technical Pro PA Speakers
|
User manual for the Technical Pro 12'' Portable Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Technical Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Technical Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Technical Pro product will considerably shorten its lifespan!
|

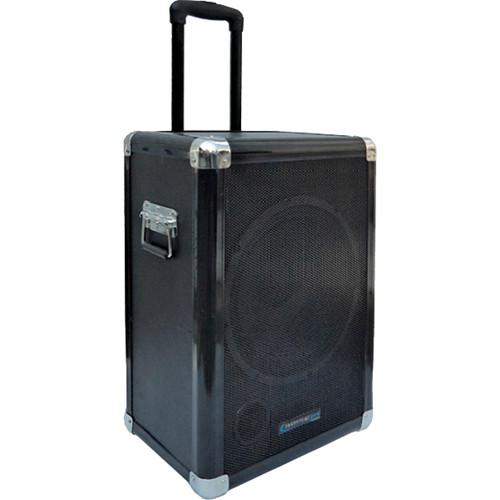

Product description The WASP12SUB 12" Portable Subwoofer from Technical Pro is an amplified, 1000 watt peak, powered bass transducer package designed to add powerful, low-end bass performance to your sound system. The portable subwoofer includes built-in wheels, a telescoping handle, and two heavy-duty carry-on handles and is ready to go at a moment's notice. The cabinet is outfitted with a full-length perforated steel grille and has reinforced steel corners to help add longevity to the amplified speaker.
The WASP12SUB features a built-in rechargeable battery that fully charges in approximately 8-10 hours and low battery and charging status indicators. The amplified subwoofer can also be powered by an optionally purchased 12 volt car adapter.
The speaker is designed to complement the WASP1250UiBT portable PA system but can be used to enhance just about any public address system. - 12" (30.5 cm) Woofer with 2.0" (5.1 cm) voice coil and 75.0 oz (2.1 kg) magnet
- 110 / 220 V powering options
- Full-length perforated steel grille
- Built-in wheels, telescoping handle, and carry handles
UPC: 817802011796 In the Box Technical Pro 12'' Portable Subwoofer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Technical Pro 12'' Portable Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechnical Pro WASP12SUB Specs | Active or Passive | Active | | Peak Power | 1000 W | | Low Frequency Driver | 12.0" Woofer (30.5 cm) | | Frequency Response | 30 to 350 Hz | | Sensitivity | 97 ±2 dB | | Impedance | 8 ohms | | Low-Pass Filter | Adjustable: 40 to 300 Hz | | Input Connections | RCA | | Output Connection | Pass-through: RCA | | Grille Material | Full-length perforated steel | | Voltage Options | 110 / 220 V | | Dimensions (L x W x H) | 15.0 x 11.0 x 22.5" (38.1 x 27.9 x 57.1 cm) | | Weight | 37.0 lb (16.8 kg) | | | | Package Weight | 39.0 lb | | Box Dimensions (LxWxH) | 25.5 x 16.5 x 13.5" |
