User Manual for Technical Pro L4Z4002 4-Channel Power Amplifier Click to enlarge the picture
Contents of the user manual for the Technical Pro L4Z4002 4-Channel Power Amplifier
- Product category: Power Amplifiers Technical Pro
- Brand: Technical Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Technical Pro Power Amplifiers
 |
User manual for the Technical Pro L4Z4002 4-Channel Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Technical Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Technical Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Technical Pro product will considerably shorten its lifespan!
|

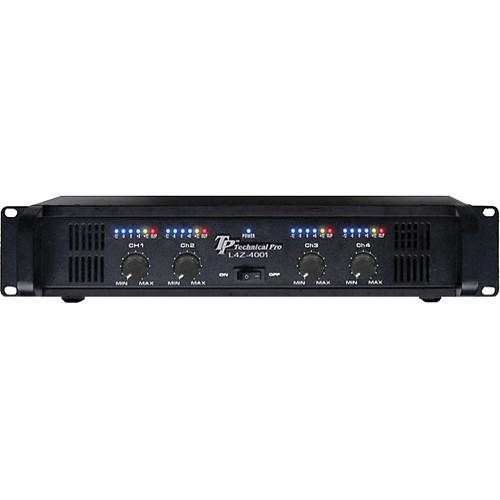

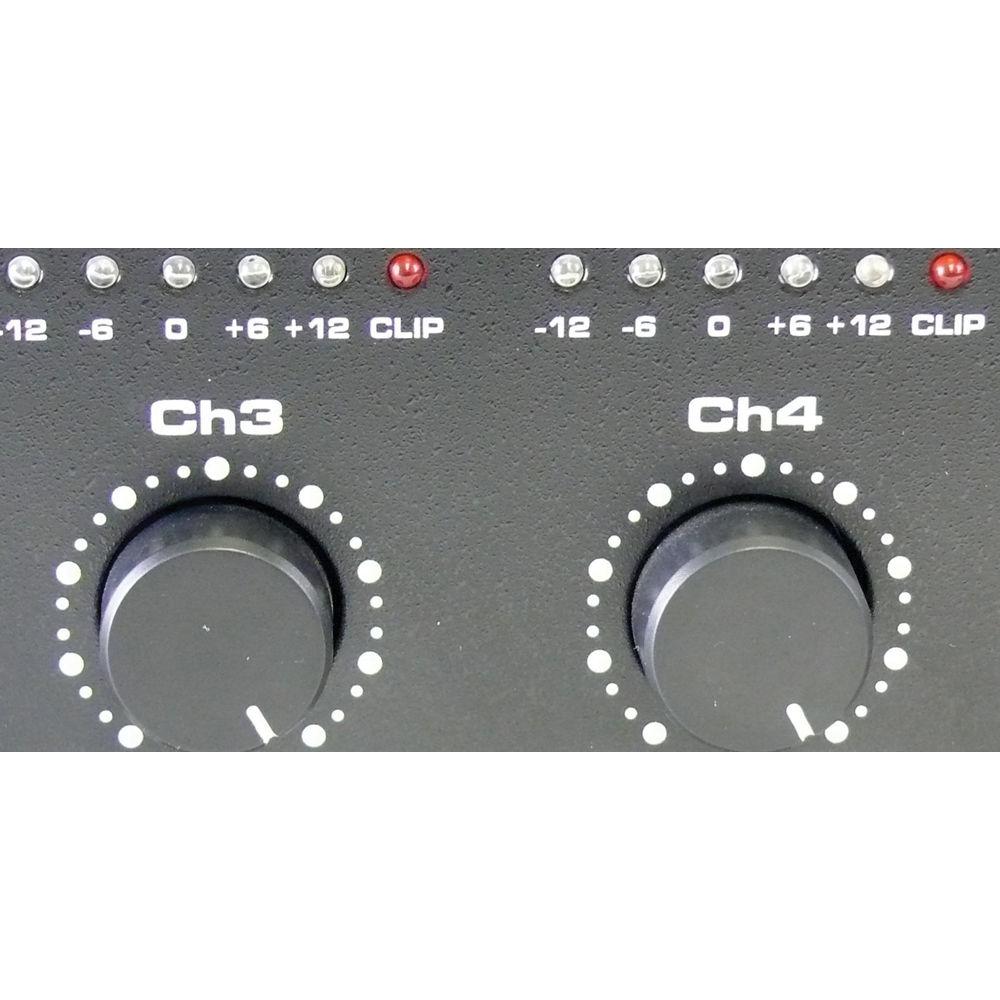

Product description The Technical Pro L4Z4002 4-Channel Power Amplifier is a 2 RU 19" rackmountable amplifier that delivers 4000W of peak power for live sound-reinforcement applications. Each channel is rated to 1000W at 2 Ohms, 660W at 4 Ohms, and 350W at 8 Ohms. The unit is capable of bridging 4 channels down to three or two channels for distributing the power as the application requires. The front panel of the unit features a power on/off switch, four gain knobs, and four sets of blue-LED meter-clipping indicator lights.

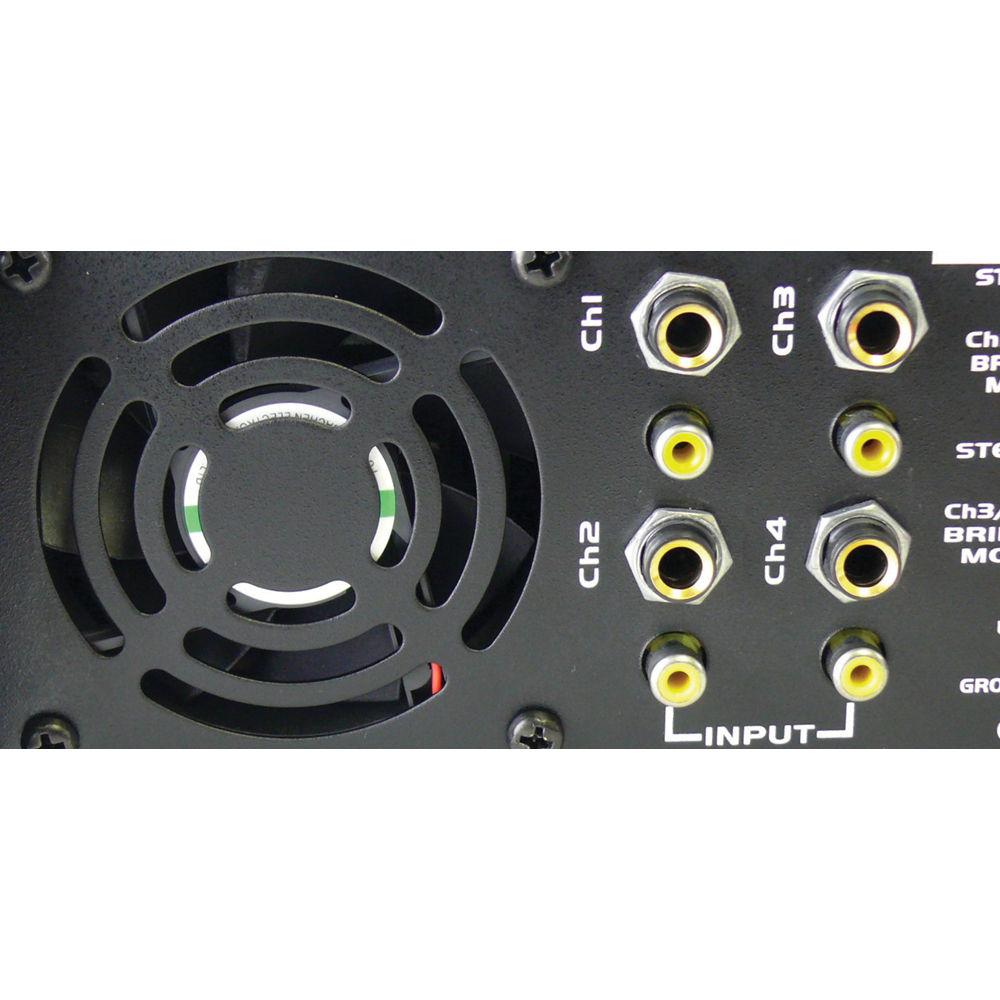

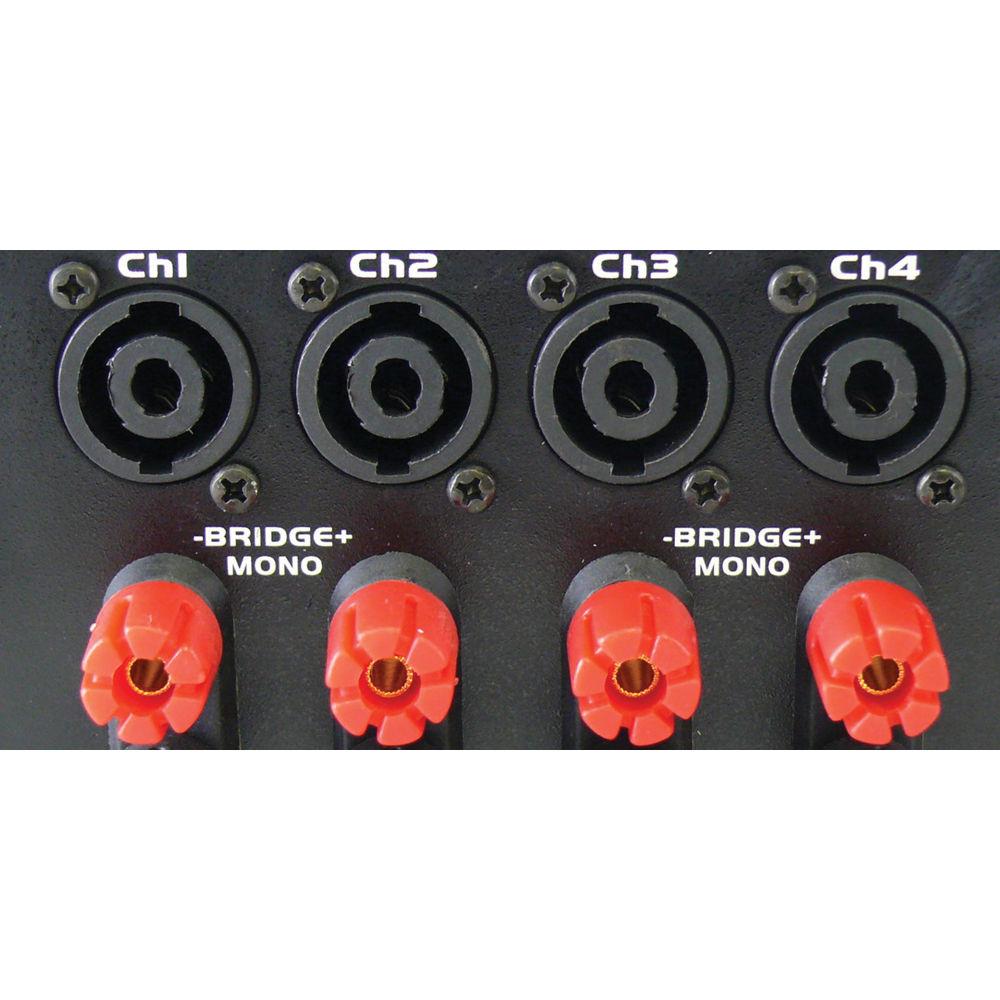

The unit features both 1/4" TRS and RCA inputs on each channel. For outputs, each channel features a pair of banana binding posts and a Neutrik Speakon connector. Channels 1 and 2 as a pair and channels 3 and 4 as a pair can be set to stereo or bridged-mono mode using the two stereo/bridged-mono switches on the back of the unit. A ground/lift switch can be turned on or off to eliminate the effects of ground loops. UPC: 817802011956 In the Box Technical Pro L4Z4002 4-Channel Power Amplifier Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Technical Pro L4Z4002 4-Channel Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechnical Pro L4Z4002 Specs | Power | 4000 W peak power
1000 W at 2 Ohms
660 W at 4 Ohms
350 W at 8 Ohms | | Inputs | 4 x 1/4", 4 x RCA | | Outputs | 4 x Neutrik Speakon connectors,
4 x sets of banana binding posts | | Power Supply | 110 to 240 VAC Switchable | | Dimensions (W x H x D) | 19.0 x 3.5 x 18.0" (482.6 x 88.9 x 457.2 cm) | | Weight | 33.0 lb (14.9 kg) | | | | Package Weight | 27.55 lb | | Box Dimensions (LxWxH) | 21.2 x 19.4 x 6.7" |
