Technical Pro Pro HDMI DVD Player

Search your instruction manual in PDF to download

User Manual for Technical Pro Pro HDMI DVD Player

Click to enlarge the picture
Technical Pro Pro HDMI DVD Player Contents of the user manual for the Technical Pro Pro HDMI DVD Player
  • Product category: CD/DVD/Blu-Ray Recorders & Players Technical Pro
  • Brand: Technical Pro
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Technical Pro CD/DVD/Blu-Ray Recorders & Players

Technical Pro Pro HDMI DVD Player Technical Pro Pro HDMI DVD Player Technical Pro Pro HDMI DVD Player
User manual for the Technical Pro Pro HDMI DVD Player contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Technical Pro product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Technical Pro user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Technical Pro product will considerably shorten its lifespan!



Product description

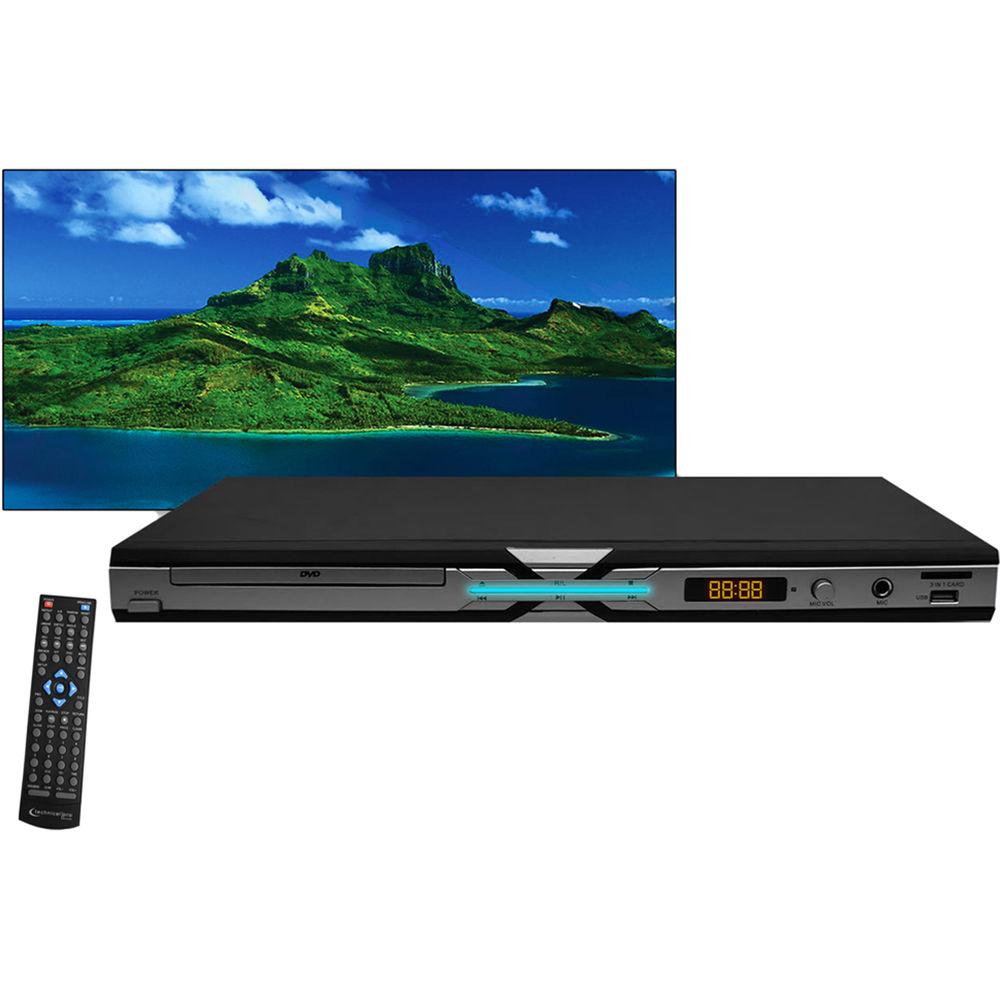

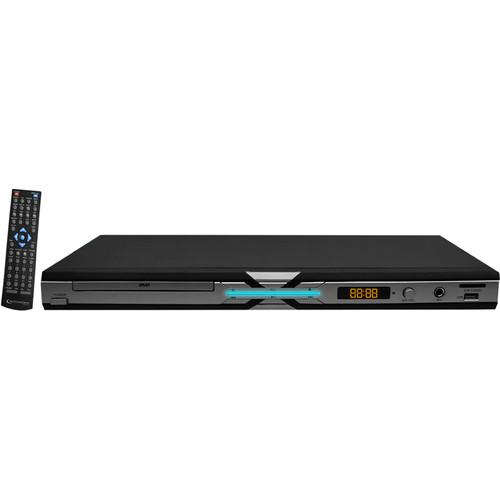

The Technical Pro DV90 is a region-free DVD player, capable of playing back discs from any country. DVD's and DVD systems are generally assigned regions, and normally you can't play a DVD from one region on a player from another. But with the DV90, you can play a DVD from anywhere in the world. Moreover, the DV90 is switchable between NTSC and PAL broadcast standards, so it can be used in most countries. Furthermore, it supports worldwide-compatible 110-220V power input so it can be connected into the power outlet of any country (with the right plug adapter).

In addition to the above, the DV90 is also designed with microphone ports and audio outputs that allow you create a karaoke system. And it also has a USB port and SD card slot so you can upload music.

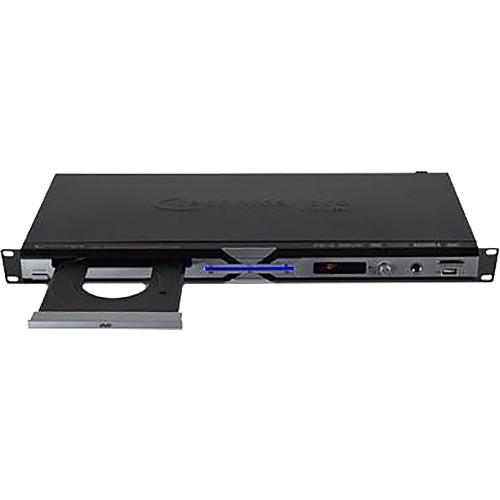

The DV90 comes with a remote control and rack mounting brackets in case you want to rack-mount it instead of use it tabletop.
    Key Features
    • Region-free DVD player, capable of playing back discs from any country
    • Two microphone ports and RCA audio outputs allow you to create a karaoke system
    • USB port and SD card slot for upload music files to send to your audio system
    • Remote control included
    • Rackmount brackets included if you want to rack-mount it instead of keep it on a stand/table
    • LCD screen
    • Switchable between NTSC and PAL broadcast standards
    • Supports worldwide-compatible 110-220V power input
UPC: 817802013530 In the Box Technical Pro Pro HDMI DVD Player
  • Remote Control
  • Rackmount Brackets
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Technical Pro Pro HDMI DVD Player in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Technical Pro Pro HDMI DVD Player can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Technical Pro Pro HDMI DVD Player can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Technical Pro Pro HDMI DVD Player can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Technical Pro Pro HDMI DVD PlayerDownload PDF User Manual - https://www.search-manual.com/ upload/ technical-pro-pro-hdmi-dvd-player-305140-user-manual.pdf
    (PDF file, 1.23 MB)


    Technical parameters

    Technical Pro DV90 Specs

    Voltage 110-220 VAC

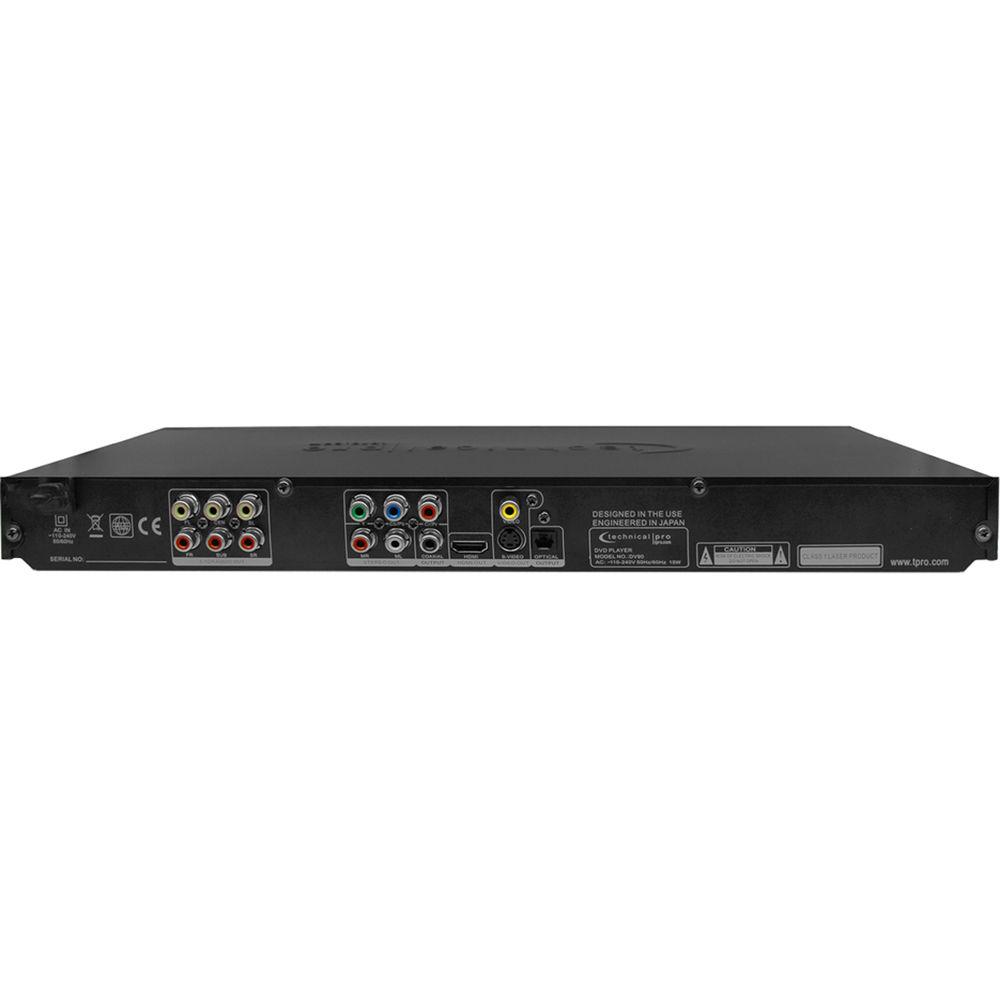

    Audio Outputs 2 x RCA (main) + 5.1 RCA
    1 x HDMI
    Video Outputs YCbCr/YUV, RF DIN, Coax, CVBS, Optic fiber
    Compatibility CD-G, CD+G, DVD, DVD-R, DVD-RW, CD-R, CD-RW, VCD, MP3, Kodak CD, MPEG4, DIVX, WVA
    Card Reader USB, SD cards
    Playback Auto region (region free)
    Standard NTSC / PAL switchable
    Decoder Dolby Digital AC - 3
    Mic Inputs Dual
    Mount Removable rackmount brackets
    Remote Yes
    Dimensions 19 x 10 x 2" (48 x 25 x 5 cm)
    Weight 6 lb (2.7 kg)
    Package Weight 3.75 lb
    Box Dimensions (LxWxH) 18.0 x 9.9 x 2.9"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4.0 of 5

    This product has already been rated by 40 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Technical Pro Pro HDMI DVD Player

    Subject: Technical Pro Pro HDMI DVD Player
    Date: 12.01.2022 05:50:03Name: Michael Kinnear
    Will this "Technical Pro HDMI DVD Player" play a MP4 file either on a DVD or a USB Jump Drive?
    Post reply

    Subject: No Sound
    Date: 07.01.2021 21:41:51Name: Michael Soto
    I have the DV90 connected to a Sanyo DP42849. All of my connections seem to correct. I am using the video #1 for Yellow, Red & White for audio output. I have set my input for the TV for Video #1. I get a great picture but no sound. I have tried everything. Any suggestions?
    Post reply

    Subject: Part
    Date: 29.10.2020 17:13:10Name: Genaro Rodriguez
    Yes what could I buy to make is bluetooth.
    Post reply
