User Manual for Technical Pro STUDIOPRO1 Rack-Mountable USB SD MP3 Recorder Click to enlarge the picture
Contents of the user manual for the Technical Pro STUDIOPRO1 Rack-Mountable USB SD
- Product category: Digital Recorders & Players Technical Pro
- Brand: Technical Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Technical Pro Digital Recorders & Players
 |
User manual for the Technical Pro STUDIOPRO1 Rack-Mountable USB SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Technical Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Technical Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Technical Pro product will considerably shorten its lifespan!
|

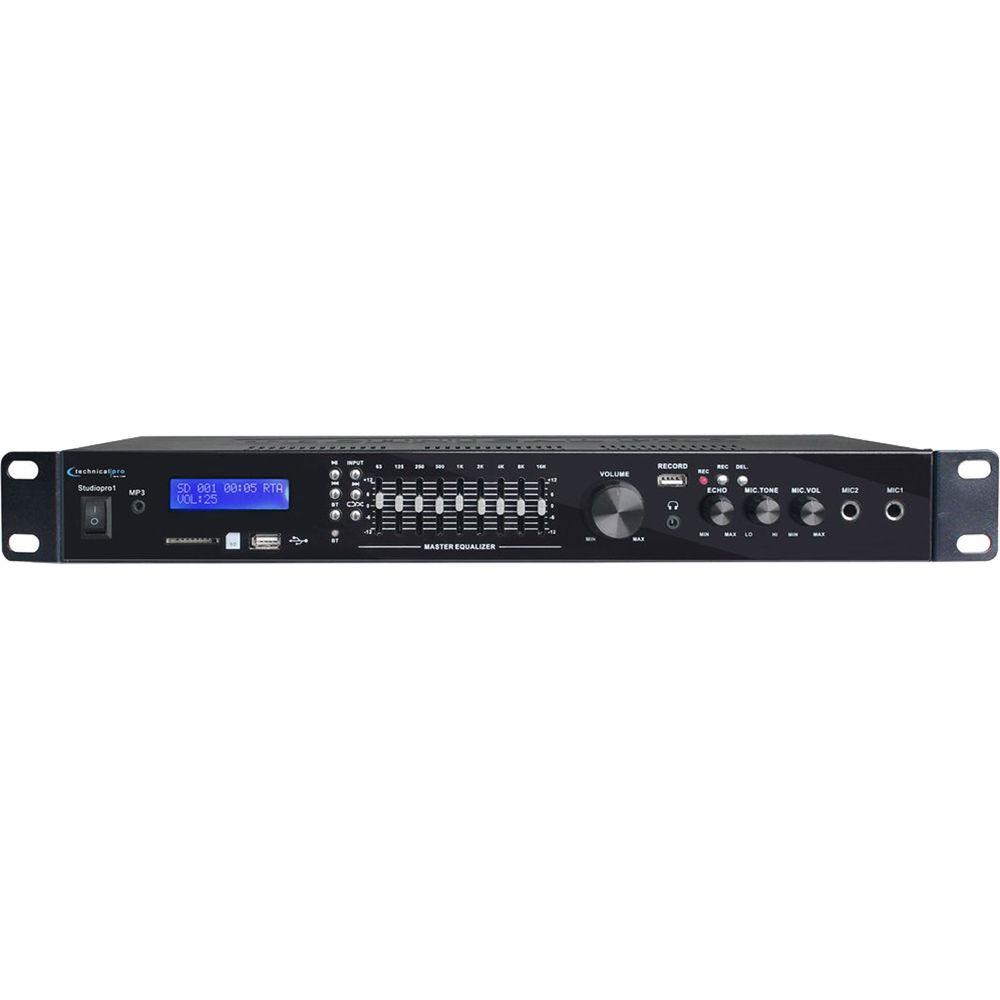

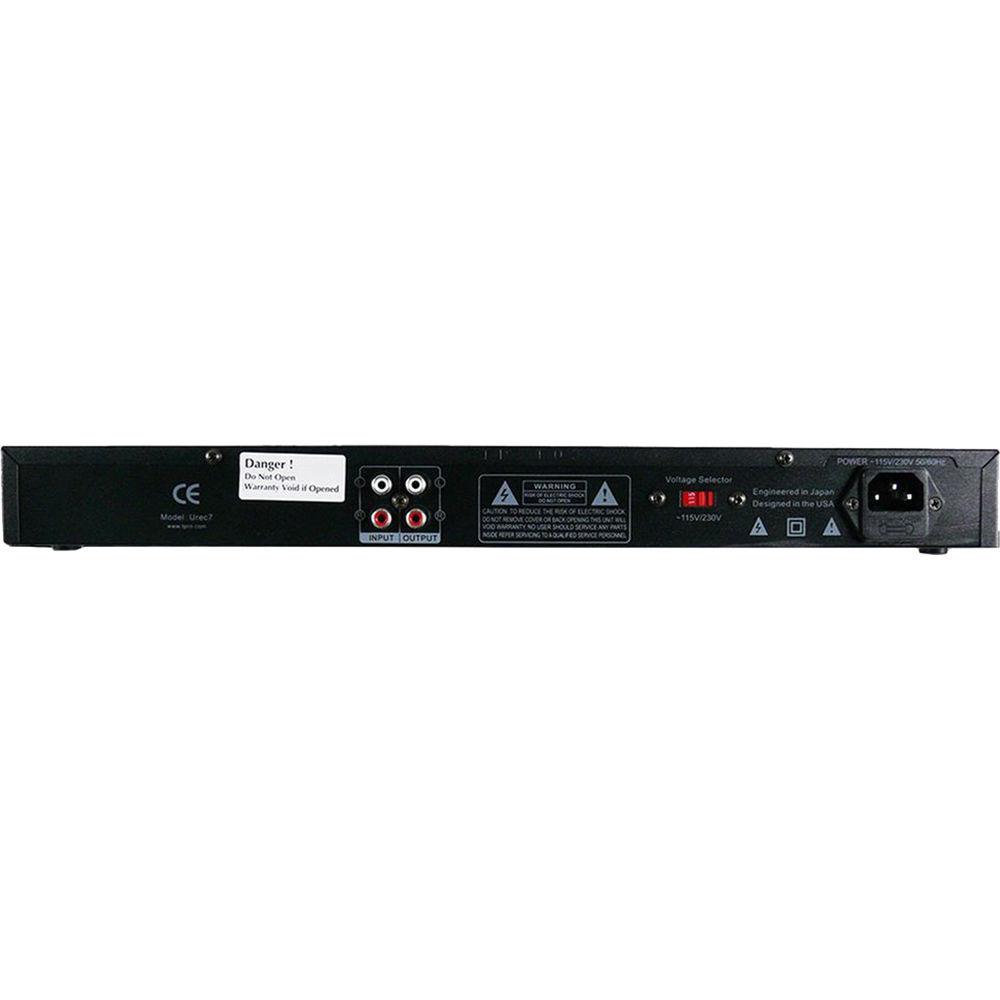

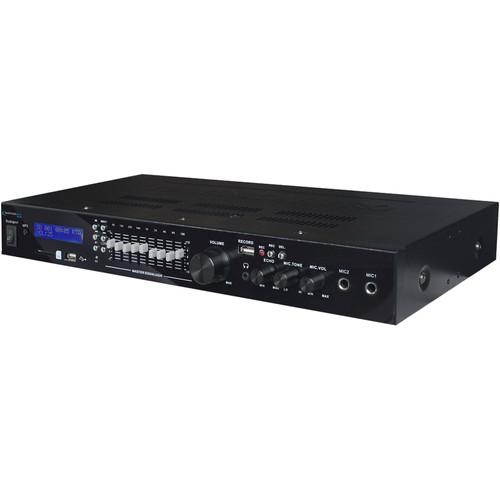

Product description The Technical Pro STUDIOPRO1 is a 1 RU rack-mountable USB/SD MP3 recorder designed to provide simple audio capture of analog and digital sources for singers, lecturers, musicians, and audio engineers in studios, clubs, conferences, and live stage applications. Record 128 kb/s MP3 files and play multiple file types via an SD card or USB flash drive up to 32 GB in capacity. The built-in mixer offers volume, tone, and echo controls for the mic inputs, plus 9-band EQ and volume for the master output. Hook up one or two dynamic microphones to the 1/4" jacks, your mobile device to the 1/8" stereo mini-jack, and a mixer or DJ deck to the RCA jacks. For easy monitoring, connect your headphones to the 1/8" stereo output and route the RCA outputs to a PA. The digital display, front-panel buttons, and included remote control deliver effective access to primary device functions. - Occupies 1 RU in a standard 19" equipment rack
- Record audio from analog or digital sources to an SD card or USB flash drive
- Record 128 kb/s MP3 files at 44.1 kHz resolution
- Utilize 32 GB media for up to 136 hours of recording time
- Play WAV, MP3, or WMA files from an SD card or USB flash drive
- Connect mic and line sources via RCA, 1/4" TS, and 1/8" aux inputs
- RCA outputs for connection to a mixer or PA system
- 1/8" headphone output with large volume dial
- 9-band graphic equalizer, tone knob, and echo control
- Front-panel controls for playback, shuffle, and repeat
- Includes remote control for playback functions
UPC: 817802014339 In the Box Technical Pro STUDIOPRO1 Rack-Mountable USB/SD MP3 Recorder Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Technical Pro STUDIOPRO1 Rack-Mountable USB SD MP3 Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechnical Pro STUDIOPRO1 Specs | Inputs | 2 x 1/4" TS mic inputs
1 x RCA stereo coaxial
1 x 1/8" / 3.5 mm stereo mini-jack | | Outputs | 1 x RCA stereo coaxial
1 x 1/8" / 3.5 mm stereo mini-jack | | Media Slots | 1 x SD card slot
2 x USB 2.0 Type-A ports | | Supported Storage Capacity | Up to 32 GB via SD card or USB flash drive | | Audio File Formats Supported | Playback: WAV, MP3, and WMA
Recording: MP3 | | Sampling Rate | 128 kb/s at 44.1 kHz for MP3 recording | | Frequency Response ± 3dB | 20 Hz to 20 kHz | | Signal to Noise Ratio | >90 dB | | Power Requirement | 110/220 VAC | | Dimensions (L x W x H) | 19.1 x 4.3 x 1.8" / 48.5 x 10.9 x 4.6 cm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 18.0 x 15.5 x 3.5" |
