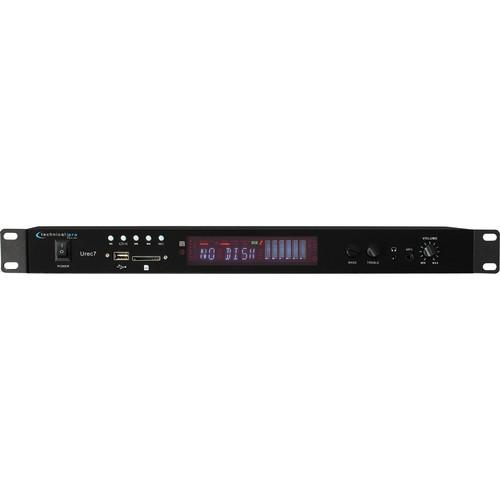

User Manual for Technical Pro UREC7 Professional Rack Mountable USB SD Recording Deck Click to enlarge the picture
Contents of the user manual for the Technical Pro UREC7 Professional Rack Mountable
- Product category: Digital Recorders & Players Technical Pro
- Brand: Technical Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Technical Pro Digital Recorders & Players
|
User manual for the Technical Pro UREC7 Professional Rack Mountable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Technical Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Technical Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Technical Pro product will considerably shorten its lifespan!
|
Product description The black Technical Pro UREC7 Professional Rack Mountable USB/SD Recording Deck is a recording device built to capture professional audio, and also play it back at a high level of quality. Record your DJ set, studio session or singer, a religious sermon, or a board meeting or conference with this recording deck.Plug in your USB flash drive or SD card of up to 32GB and record straight onto it. This will give you approximately 136 hours of recording time at 64 kb/s. If you need to record a long meeting or a series of meetings, you can put them all onto one USB flash drive. This unit allows you to record without the need to worry about any time limits as with CDs and tape recordings. Just hit record and you’re all set!
The UREC7 Recording Deck is also a playback device. By using the same USB flash drive or SD card ports, you will be able to playback your music and recordings. Input your recording device by using the RCA or 1/8” (AUX) inputs. This will allow you to easily transfer music from devices such as instruments, and DJ mixers, CD players, or cassette decks. The output consists of a stereo RCA to plug this unit into your sound system’s audio input and playback your recordings in stereo.The front panel of this unit hosts all user controls. They are all easily accessible and user friendly. The controls consist of playback / pause, stop, next track, and previous track. Organize your USB flash drive or SD card from the unit’s front panel interface; no need to jump back and forth from a computer! Use the bass and treble knobs to fine tune the sound output. Complete with a headphones output and removable rackmounts, this professional recording and playback device can be integrated into any studio or showroom or mobile rig.
The UREC7 unit also allows you to play your recording in either repeat or random playback. The unit is also equipped with a remote allowing you control playback from a USB flash drive or SD card from a distance. The built-in equalizer has 4 different settings, allowing you to choose the most suitable sound for your audio. - Record/Play: choose between recording onto the USB/SD card or playing from it
- Use remote to playback tracks from USB/SD card from a distance 1
Please Note: Remote will not function for making recordings close UPC: 817802010379 In the Box Technical Pro UREC7 Professional Rack Mountable USB/SD Recording Deck (Black) Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Technical Pro UREC7 Professional Rack Mountable USB SD Recording Deck in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechnical Pro UREC7 Specs | Inputs | USB flash drive / SD card (Up to 32 GB), RCA & 1/8" (3.5 mm) | | Outputs | RCA (line out) | | USB | USB 2.0 compatible | | Playback | Plays .mp3, .wav & .wma files from USB drives and SD cards | | Compatibility | iPod-compatible USB input allows for direct connection with an iPod Nano | | Recording | Record .mp3 files onto a USB flash drive or SD card from the RCA or 1/8" (3.5 mm) inputs | | Sampling Rate | 64 kb/s or 44.1 kHz sampling rate on recordings | | Display | LED Screen
Track title, track number & elapsed time will display for track on USB / SD card inputs | | Frequency Response | 20 Hz to 20 kHz, ±3 dB | | Signal to Noise Ratio | > 90 dB | | Controls | Bass and Treble Controls
Controls: next track, previous track, play / pause
Random, repeat, repeat all tracks selector | | Headphones | 1.8" (3.5 mm) headphones output | | Input Power | 110 to 220 VAC | | Dimensions (W x H x D) | 19.0 x 1.75 x 6.5" (482.6 x 44.4 x 165.1 mm) | | Weight | 5.0 lb (2.3 kg) | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 20.0 x 6.8 x 3.3" |
Rating68% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
