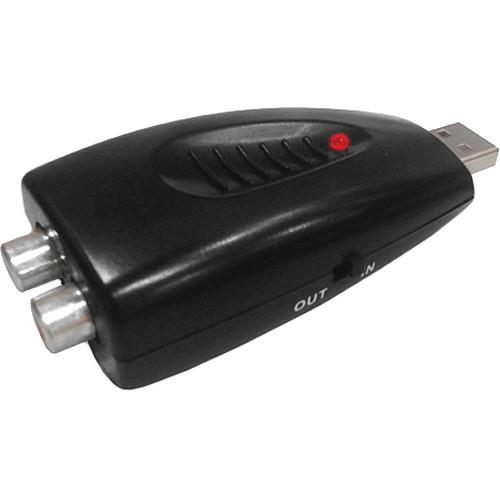

User Manual for Technical Pro USB2RCA - USB Digital Analog Converter Click to enlarge the picture
Contents of the user manual for the Technical Pro USB2RCA - USB Digital
- Product category: AD/DA Converters Technical Pro
- Brand: Technical Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Technical Pro AD/DA Converters
|
User manual for the Technical Pro USB2RCA - USB Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Technical Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Technical Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Technical Pro product will considerably shorten its lifespan!
|
Product description The compact USB2RCA from Technical Pro offers better-than-CD quality digital/analog conversion over USB. This USB class compliant device is bus powered and does not require drivers. The stereo RCA connections are switchable between input and output, allowing you to record audio to or playback audio from your Mac or PC. -
- Inputs / Outputs: RCA & USB
- Connect a stereo audio device to the RCA inputs / Connect the USB to the computer
- ''In/Out'' Selector allows you to determine the follow of the audio
- To record from an audio device (CD player, Tuner, Pre-Amplifier) set the ''In/Out'' selector to ''IN''
- To play files from your computer connect the RCA output to the input on an audio amplifier / receiver and set the ''In/Out'' selector to ''OUT''
- Fits in the palm of your hand
- Stereo audio Codec with USB interface
- Analog to digital and digital to analog audio converter
UPC: 817802010287 In the Box Technical Pro USB2RCA - USB Digital / Analog Converter Audacity Recording Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Technical Pro USB2RCA - USB Digital Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechnical Pro USB2RCA Specs | Inputs/Outputs | 2x RCA (switchable between inputs or outputs)
1x USB type A | | ADC | Sample Rate: 8, 11.025, 16, 22.05, 32, 44.1, and 48 kHz
Bit Depth: 16-bit | | DAC | 32, 44.1, 48 kHz
Bit Depth: 16-bit | | System Requirements | Windows 98, ME, 2000, XP, Vista, 7 | | USB | 2.0 / 1.1 | | Signal-to-Noise Ratio (SNR) | 50 to 65 dB | | Power Consumption | 0.3 W | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 1.6 x 3.5 x 1.0" / 4.0 x 8.8 x 2.5 cm | | Weight | 1.1 oz / 30.0 g | | | | Package Weight | 0.245 lb | | Box Dimensions (LxWxH) | 5.4 x 5.35 x 1.4" |
