User Manual for TecNec Connectronics OMX-SV4-AB 4-Pin S-Video Passive A B Switch Click to enlarge the picture
Contents of the user manual for the TecNec Connectronics OMX-SV4-AB 4-Pin S-Video Passive
- Product category: Routers & Switchers TecNec
- Brand: TecNec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TecNec Routers & Switchers
 |
User manual for the TecNec Connectronics OMX-SV4-AB 4-Pin S-Video Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TecNec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TecNec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TecNec product will considerably shorten its lifespan!
|

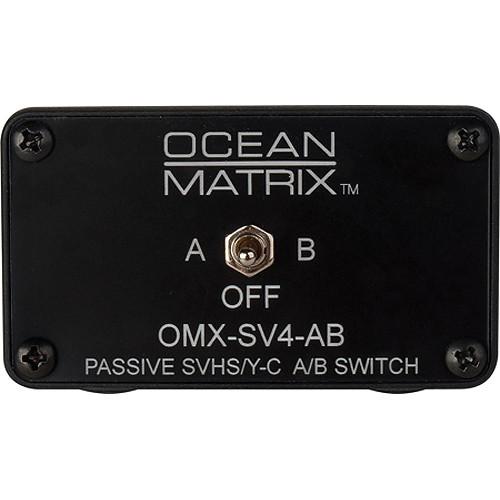

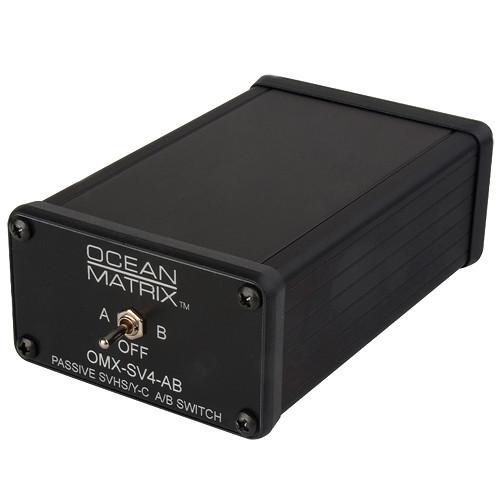

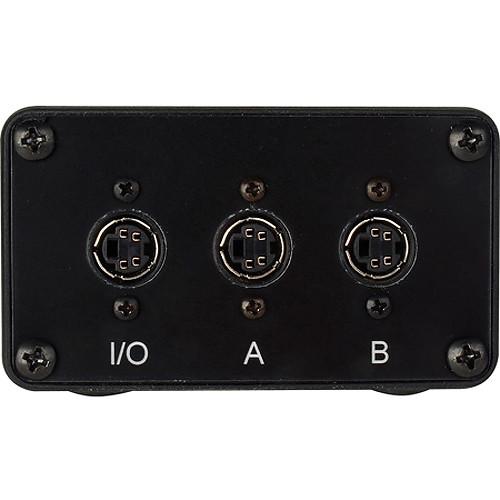

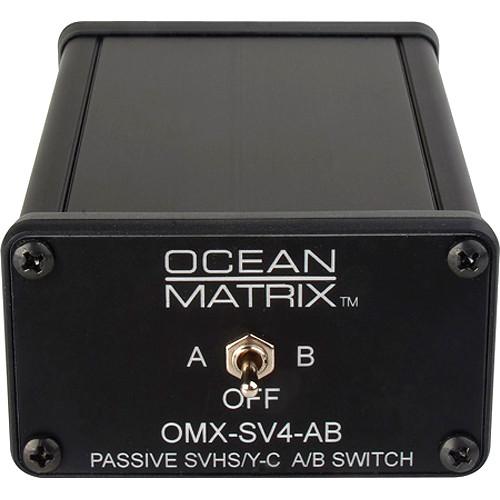

Product description The Connectronics 4-Pin S-Video Passive A/B Switch from TecNec is a simple Ocean Matrix S-Video (Y/C) A/B switch for your two signal sources or two signal destinations, and switches S-Video signals from a common input or output to either the A or B connector.
Designed to be passive, the switch has a center-off position adding one more feature to an otherwise simple design, allowing the user to completely disconnect from all connections by setting the selector switch to the center off position. Because it is fully passive, this A/B box can also be used in reverse and be cascaded to create other routing solutions, limited only by your imagination.This switch comes in a rugged, anodized, black aluminum housing measuring 3.25" wide and 1.875" tall with a depth of 5.5", including a switch bat (actuator lever). Aluminum housing also keeps internal wiring shielded from picking up video noise. - Three-position A-OFF-B selector switch
- Rugged, noise-shielding, aluminum housing
- Simple, intuitive design for all A/B applications requiring S-Video (Y/C) video switching
In the Box TecNec Connectronics OMX-SV4-AB 4-Pin S-Video Passive A/B Switch Limited 90-Day Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TecNec Connectronics OMX-SV4-AB 4-Pin S-Video Passive A B Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTecNec OMX-SV4-AB Specs | Input | 1 x S-Video | | Output | 2 x S-Video | | Dimensions (W x H x D) | 3.25 x 1.87 x 5.5" (82.55 x 47.49 x 139.70 mm) | | Weight | 1.20 lb (0.54 kg) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 9.7 x 4.5 x 3.3" |
