User Manual for TecNec Jackreel Deluxe BNC Reel Click to enlarge the picture
Contents of the user manual for the TecNec Jackreel Deluxe BNC Reel
- Product category: BNC to BNC Cables TecNec
- Brand: TecNec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TecNec BNC to BNC Cables
|
User manual for the TecNec Jackreel Deluxe BNC Reel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TecNec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TecNec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TecNec product will considerably shorten its lifespan!
|

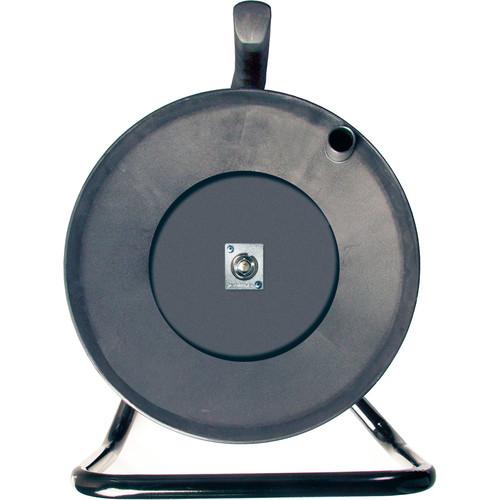

Product description This TecNec Jackreel Deluxe BNC Reel has 200' of Belden 1505A Cable reeled in, ready for deployment. With its handy rewind knob, the cable can be quickly re-spooled. The reel itself is constructed from injection-molded structural plastic to be lightweight and rugged for use in production. This cable reel is great for studios, houses of worship, rental houses, or any other institution that requires long cable runs. In the Box TecNec Jackreel Deluxe BNC Reel (Belden 1505A, 200') Limited Lifetime Warranty on Cable Limited 1-Year Warranty on Reel Table of Contents
|
Upload User Manual
Have you got an user manual for the TecNec Jackreel Deluxe BNC Reel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTecNec MKR-1-200 Specs | Cable Length | 200' / 60.96 m | | Conductor | Bare Copper | | Shielding | 100% Aluminum Foil
95% Tinned Copper Braid | | Wire Gauge | 20 AWG | | Outer Diameter | 0.32" / 8.13 mm | | Jacket Type | Polyvinyl Chloride (PVC) | | Coaxial Type | RG-59 | | Insulation Type | Polyethylene | | Maximum Impedance | 75 Ohms | | Capacitance | 16.3 pF/ft | | Maximum Signal Loss | 0.3 dB at 1 MHz over 100' / 30.48 m | | Bend Radius | 2.5" / 6.35 cm | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | -22 to 167°F / -30 to 75°C | | Weight | 23.6 lb / 10.70 kg | | | | Package Weight | 10.15 lb | | Box Dimensions (LxWxH) | 15.0 x 11.3 x 8.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
