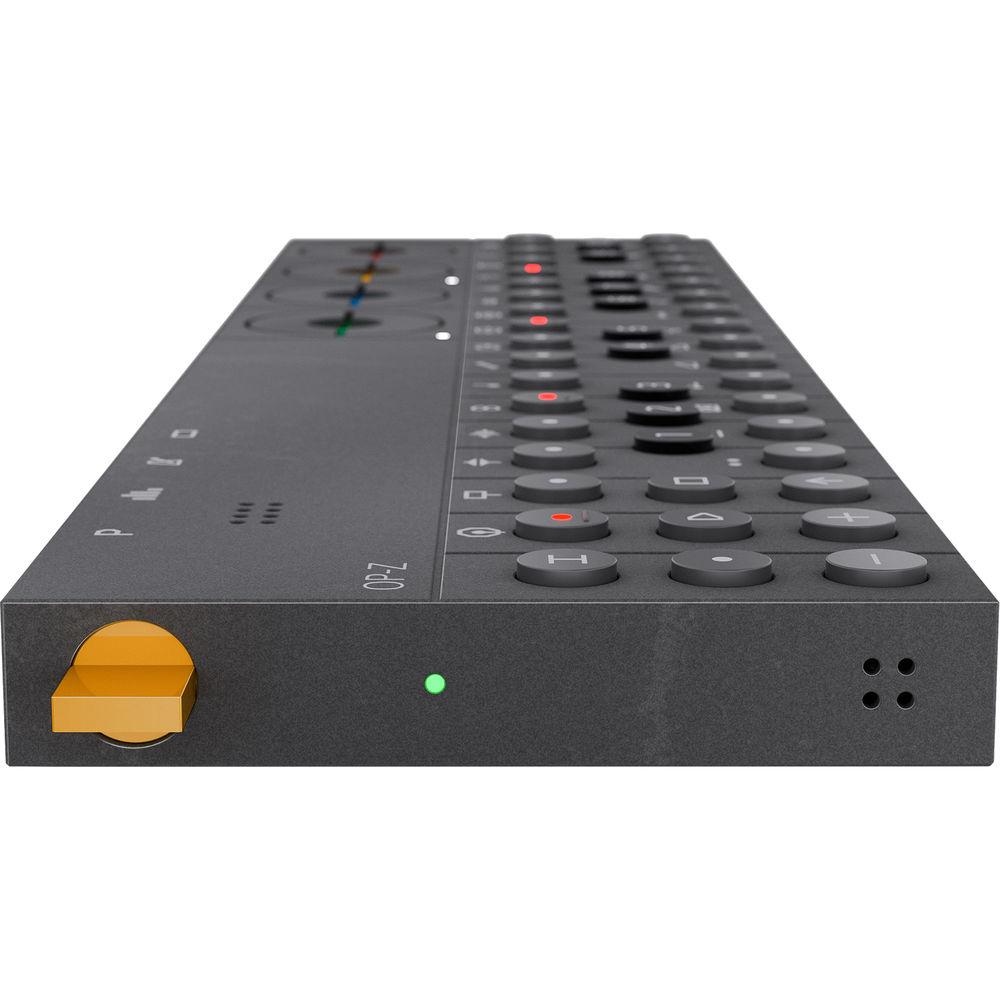

Product description Building upon the success of the OP-1, the Teenage Engineering OP-Z is a portable all-in-one synthesizer and 16-track multimedia sequencer. The device can not only produce complete music tracks and sound effects, but is also capable of MIDI, CV, & trigger track sequencing, image & 3D graphic sequencing, and DMX light sequencing.
All 16 tracks can run independently, allowing for individual track speed and length. What's more, each step of the sequencer offers component sequencing, which adds variations per cycle, note variations, micro-sequencing, direction, parameter changes, re-triggers, and more. There are 14 different components, and each has 10 values and behavior programs, which totals 140 ways to alter a single step.
All keys are backlit with multicolor LEDs with instant machine feedback, a convenient feature for dark stages and poorly lit environments. Even the print on the unit uses a special glow-in-the-dark paint to keep you on point during a performance. There is no built-in LED screen. Instead, the OP-Z connects to your iOS device and takes advantage of its high-resolution retina display. A free iOS application pairs the two devices and further expands the feature set. Photomatic allows you to capture and arrange photographs into synchronized stop-motion photography with effects or import custom graphics and animate them in pace with your music. Media can easily be imported into the system via Dropbox. To eliminate any latency between image and sound, the OP-Z sound engine is ported to run simultaneously on your iOS device, which enables dual-domain synthesis.
Teenage Engineering have worked closely with Keijiro Takahashi and the Unity Tokyo Studio to fully integrate the OP-Z with the Unity Game Engine, allowing for stunning 3D graphics that run at full speed on an iPhone or iPad. The included toolset allows you to create your own graphics and 3D animation projects that can be integrated into the OP-Z performance platform.
An updated tape feature secretly records everything that is programmed into the sequencer in real time. With its own dedicated track, it is possible to sequence the tape and trigger the in-point, length, and speed. There are several different tape reels with different characters, which allow you to scrub, scratch, wind-up, and mess-up any programming. The OP-Z ships with a USB charging and control cable. - Sequencing
-
- Advanced multispeed, 16-track sequencer
- Step-component composing
- Endless sequencing steps
- Track independent length
- Track independent speed
- Parameter locks
- Step recording
- Live recording
- MIDI, CV, and trig track sequencing
- Image and 3D graphics sequencing
- DMX light sequencing
- Instrument Tracks
-
- 16 individual and independent synthesis, sampler, and control tracks
- Kick
- Snare
- Percussion
- Sampler
- Bass
- Lead
- Arpeggio
- Chords
- FX slot 1
- FX slot 2
- Tape
- Mixer
- MIDI
- CV & trig
- Light
- Motion
- General Features
-
- Patterns: 160 user-programmable patterns with endless pattern-chaining
- Effects: Upgradeable modular effects architecture including delay, reverb, filters, tremolo, and more
- Step Components: 14 multi-program step components for advanced step sequencing
- Screen: When paired, or connected to an iOS device, the device will act as a screen for OP-Z
- iOS App: OP-Z iOS app will be free to download from app store
- Compatibility: Compatible with any iOS device that is Apple metal graphics specified
- Dual-Domain Synthesis: For extreme low-latency performance
- Hardware
-
- Analog Devices Blackfin 70X DSP
- Cirrus Logic audio coprocessor
- 1250 MMACS
- 48 kHz/24-bit DAC
- 115 dB dynamic range
- Sensors: 6 axis motion sensors (g-force) assignable to any synthesizer parameter
- Tactile Input
- 2 octaves of musical keys
- 51 mechanical keys in total
- Pressure-sensitive pitch bend
- 4 x multipurpose, color-coded, high-resolution encoders
- Volume knob / on switch
- Pairing button
- Encoder Design: Floating ball bearing, hall-sensor encoders for minimal stacking height and wear
- UI: 53 LED indicators
- Microphone: Integrated MEMS microphone
- Wireless: Bluetooth 5.0 LE
- Battery: 2 years standby time
- Connectors

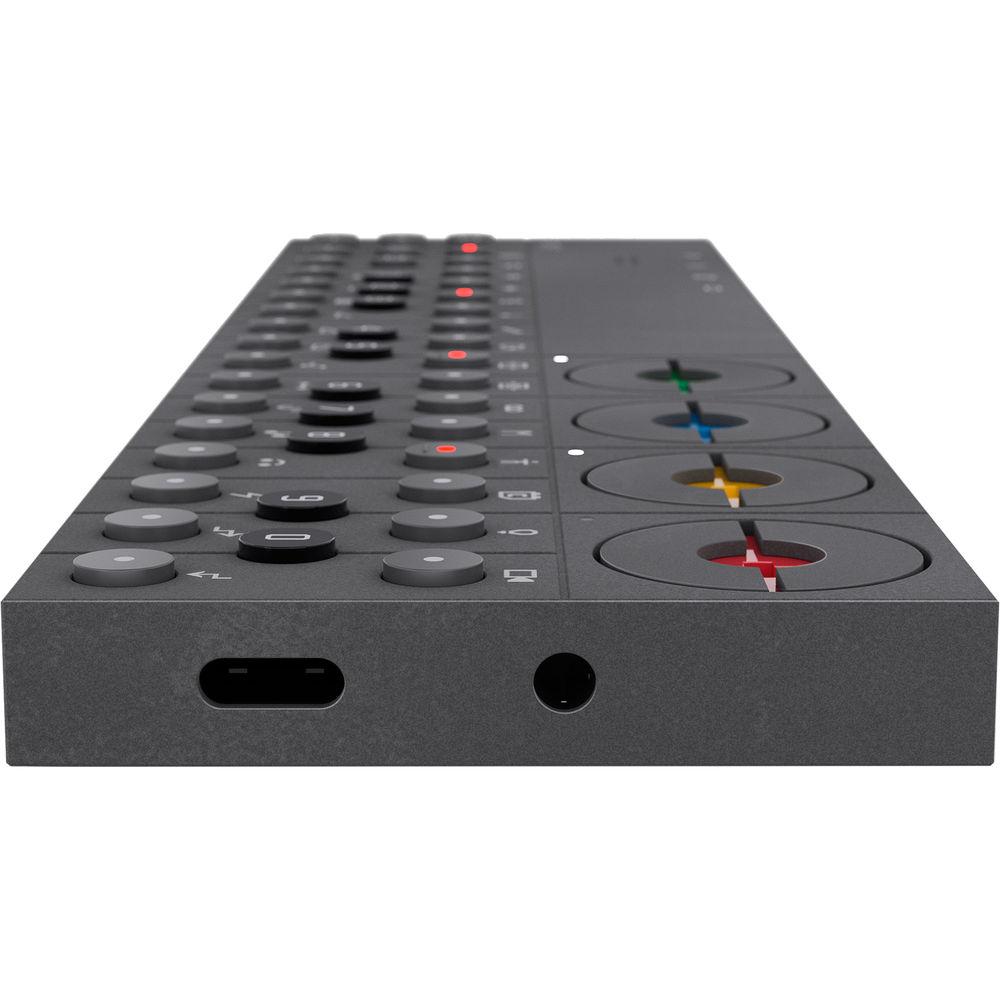

- USB Type-C
- 3.5mm 4-pole jack
- Durable Design: Ultra-rigid engineering plastic
- Housing: IXEF 1022 PARA + 50% glassfiber
In the Box teenage engineering OP-Z Synthesizer and Multimedia Sequencer USB Cable (Type-C to Type-A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the teenage engineering OP-Z Synthesizer and Multimedia Sequencer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersteenage engineering TE012AS001 Specs | | | USB | USB Type-C | | Line In/Out | 1/8" / 3.5 mm 4-pole jack | | Microphone | Integrated MEMS microphone | | | | Sensors | 6 x axis motion sensor (g-force) assignable to any synthesizer parameter | | Control Input | Tactile input
2 octaves of musical keys
51 mechanical keys in total
Pressure-sensitive pitch bend
4 x multipurpose, color-coded, high-resolution encoders
Volume knob / on switch
Pairing button | | Indicator LEDs | LED Indicators: 53 | | | | Type | Teenage Engineering-designed floating ball bearing, hall-sensor encoders for minimal stacking height and wear | | | | Battery Life | Standby: 2 years | | Charging | Via USB port | | | | Hardware | Analog Devices Blackfin 70X DSP
Cirrus Logic audio coprocessor
1250 MMACS
48 kHz/24-bit DAC
115 dB Dynamic Range | | Material of Construction | Ultra-rigid engineering plastic | | Housing | IXEF 1022 PARA + 50% glassfiber | | Dimensions (L x H x D) | 8.4 x 2.3 x 0.4" / 212.5 x 57.5 x 10.0 mm
Length for Volume Knob: 0.2" / 5.0 mm | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.1 x 2.9 x 1.0" |
