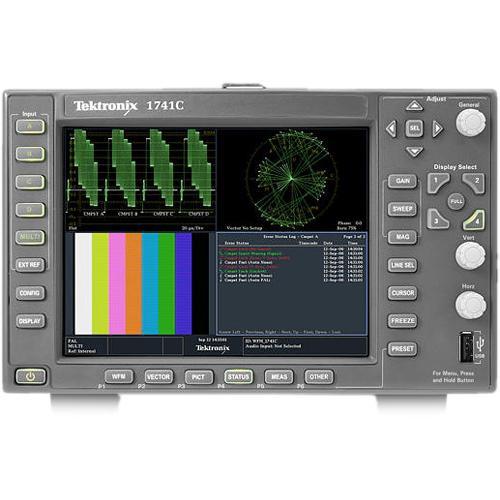

User Manual for Tektronix 1741C Analog Dual-Standard Waveform Monitor Click to enlarge the picture
Contents of the user manual for the Tektronix 1741C Analog Dual-Standard Waveform Monitor
- Product category: Waveform Monitors & Scopes Tektronix
- Brand: Tektronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tektronix Waveform Monitors & Scopes
|
User manual for the Tektronix 1741C Analog Dual-Standard Waveform Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tektronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tektronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tektronix product will considerably shorten its lifespan!
|
Product description The 1741C Analog Dual-Standard Waveform Monitor from Tektronix offers user interface tools that are designed to simplify operations. Its display provides monitoring of analog composite (PAL & NTSC) or component systems. This instrument supports (4) analog composite input signals with waveform, vector, SCH, and picture functions. The input ports can also be used for RGB signals. Other features include the 4-tile FlexVu display and picture thumbnail function. For camera alignment, the user can display one, two, three, or four waveforms simultaneously and overlay just as many vector displays, thus facilitating monitoring of multiple cameras during content acquisition. Other tools include timing display, VITC, or LTC decode, freeze capture, video session, alarm status, and error log allow for deeper signal inspection to enhance video production and delivery quality. - Inputs & Formats
-
- Analog Composite (PAL and NTSC) and Component Video Support with Auto Format Detection
- (4) Passive Loopthrough Analog Composite Signal Inputs
- Monitoring Capabilities
-
- Waveform Display Supports Composite or Component Video for White and Black Balance and Level Checking
- Vector Display for Analog Composite Signal Allows System Setup to Specific Chroma Values
- SCH Display for Color Subcarrier-to-Horizontal Sync Timing and Color Framing Matching among Edit Sources
- Additional Analysis Features
-
- Timing Display for Measuring Signal Timing between Each Input and the Reference
- VITC or LTC Time Code Decode and Display
- LTC Waveform Display for Longitudinal Time Code Amplitude and Synchronization Monitoring
- Screen Capture for Pictures and Traces Facilitate Reference Setting, Troubleshooting, and Documentation Tasks
- Video Session, Alarm Status, and Error Logging for Quick Identification and Easier Correction of Problems
- User Interface Tools
-
- (4)-tile FlexVu Display Capability
- XGA Display with Full-screen Picture Display and Picture Thumbnail for Easy Signal Source Verification
- Ethernet Interface for Convenient Freeze Capture and Error Log Download
- USB Port Enables Screen-capture Download
- (32) User Presets for Quick Recall of Commonly Used Configurations
- Additional XGA Output for Instrument Display on External Monitor
- Picture Monitor Output for Analog Composite Signal
- Ground-Closure for Remote Selection of Input or Preset Recall
- Applications
-
- Camera Alignment and Analog Video Equipment Setup
- Compliance Checking in Distribution and Broadcast
- Content QA of Composite and Component Video in Production and Postproduction
In the Box Tektronix 1741C Analog Dual-Standard Waveform Monitor Monitor Limited Lifetime Warranty:
(Lifetime is defined as a period ending five (5) years after Tektronix discontinues manufacturing the product (as determined by Tektronix), but the warranty period shall be at least ten (10) years from the date of purchase of the product by the original purchaser.) Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix 1741C Analog Dual-Standard Waveform Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix 1741C Specs | Specifications | COMPOSITE VIDEO INTERFACE
Inputs:
4
Input Type:
Passive loopthrough BNC, 75 Ohms compensated
Input Dynamic Range:
+/-6dB
Maximum Operating Amplitude:
-1.8V to +2.2V, DC + peak AC
Absolute Maximum Input Voltage:
-6.0V to +6.0V, DC + peak AC
DC Input Impedance:
20 kOhms, nominal
Return Loss:
>40 dB to 6MHz, power on
>40 dB to 10MHz (typical)
>46 dB to 6MHz (typical)
35 dB, power off (standard amplitude video)
Crosstalk Between Channels:
>60 dB to 6MHz
Loopthrough Isolation:
>70 dB to 6MHz
DC Offset with Restore Off:
<7 mV (typical)
Attenuation:
DC Restore 50 and 60Hz
Fast Mode >95% attenuation
Slow Mode <10% attenuation, <10% peaking
Slow Mode typical peaking 8% at 50 and 60Hz
Lock Range:
+/-50 ppm remains locked EXTERNAL REFERENCE
Input Type:
Passive loopthrough BNC, 75 Ohms compensated
DC Input Impedance:
20 kOhms, nominal
Return Loss:
>40dB to 6MHz, >35dB to 30MHz ANALOG COMPOSITE WAVEFORM VERTICAL CHARACTERISTICS
Vertical Measurement Accuracy:
+/-1% all gain settings
Gain:
X1, X2, X5, and X10
Frequency Response:
Flat to 5.75MHz,+/-1% WAVEFORM HORIZONTAL SWEEP CHARACTERISTICS
Sweep Timing Accuracy:
+/-0.5%, all rates, fully digital system
Sweep Linearity:
0.2% of time displayed on-screen, fully digital system | | Power | Mains Voltage Range: 90 to 250VAC
Mains Frequency Range: 50/60Hz
Power Consumption: 110VA maximum | | Power | 100 to 240VAC, +/-10%, 50/60Hz | | Dimensions (HxWxD) | 5.25 x 8.5 x 18.13" (133.4 x 215.9 x 460.4mm) | | Weight | 6.8 lbs (3.1kg) | | | | Package Weight | 15.25 lb | | Box Dimensions (LxWxH) | 15.2 x 15.0 x 14.2" |
