Product description The Tektronix ECO8020 Automatic Changeover Basic Unit is a versatile automatic sync and signal changeover unit with configurations and capabilities required to address modern master sync application and other advanced sync timing application. It supports optional high bandwidth input changeover capabilities for HD/SD-SDI and/or 3G-SDI signal environments. It can be used with the following optional signal generators to form the complete sync generator system, which offers extra redundancy for the critical timing and synchronization system in the facilities:
- A pair of Tektronix Master Sync / Master Clock Reference Generators (model # SPG8000) for most broadcast facility timing applications.
- A pair of Tektronix Test Signal Generators (model # TG8000) for more advanced post production facility timing applications.

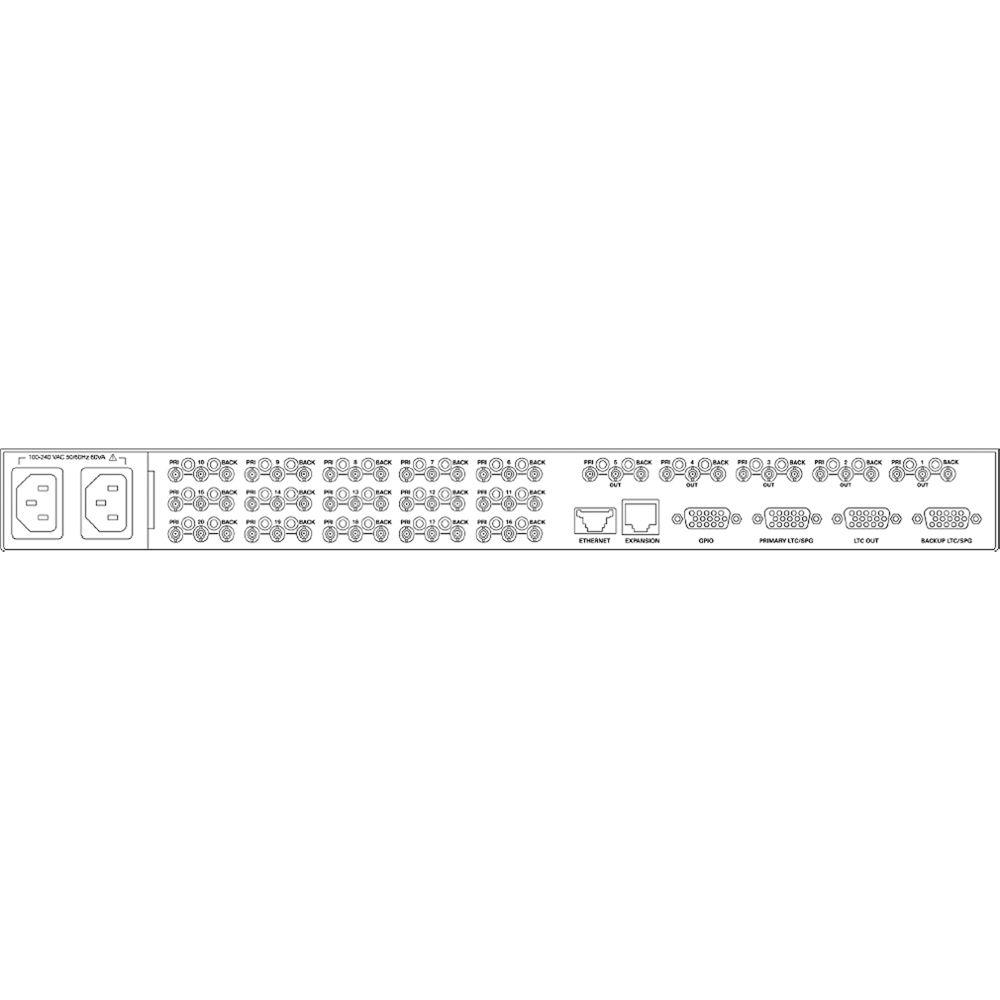

The ECO8020 features 20 mini BNC channels via a breakout cable, each consisting of primary and backup inputs and an output. - Features & Benefits
-
- Switch analog black burst, HD tri-level sync, AES/DARS, word clock, LTC, as well as SD/HD/3G-SDI signals
- Scalable product architecture to fit various application needs
- Electronic Fast Switch function for near glitch-less sync source switching, minimizing disruption in operations
- Automatic or Manual changeover mode

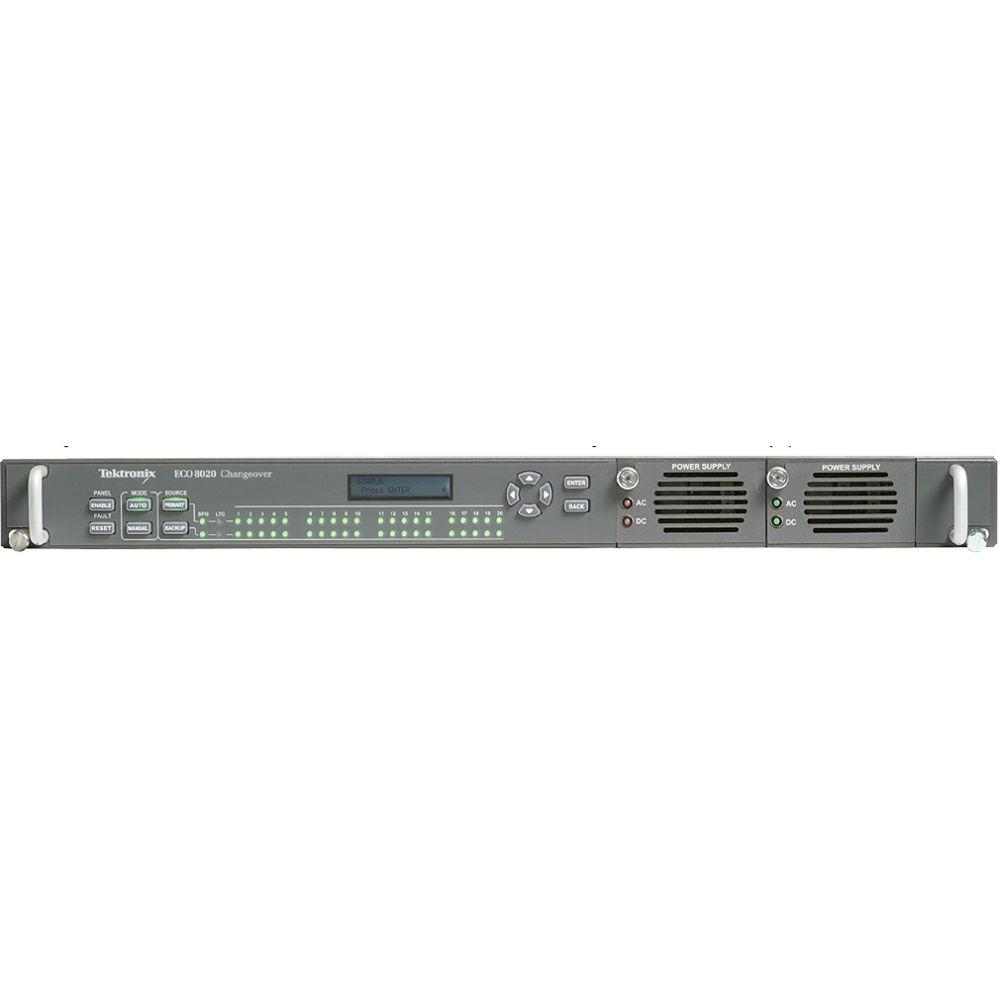

- Front panel LED fault indicators for each individual channel as well as the status of the power supplies

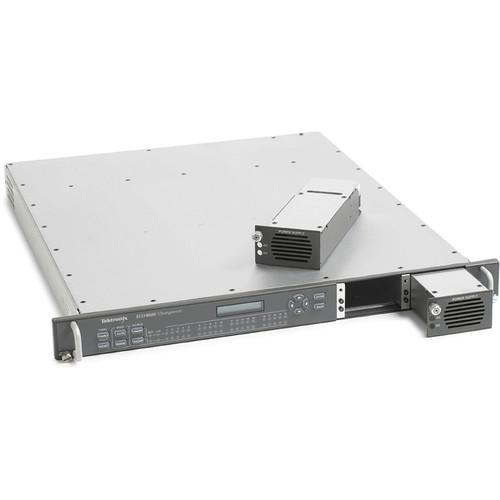

- Dual hot-swappable power supplies ensure continuous availability of reference signals
- Easy to manage with Web-based interface for configuration and SNMP for status and alert information
- Applications
-
- Sync generator and time reference generator system for broadcast, studio, mobile, and post-production facilities
- Master or slave (genlock) operation for distributed system architectures
- Instrument Configuration
- The ECO8020 provides 20 user-configurable mini BNC channels and four LTC channels via the breakout cable. Each channel consists of primary and backup inputs, and an output.
The base configuration has five 50 MHz Electronic Fast Switch channels with options for 15 more 50 MHz Electronic Fast Switch or 3 GHz Relay Switch channels in groups of five channels each, plus four optional LTC channels.
The 50 MHz Electronic Fast Switch channels support black burst, HD tri-level sync, AES/DARS, and word clock signals. The 3 GHz Relay Switch channels support SD/HD/3G-SDI signals as well as most analog reference signals.
For applications that require more than 20 high density BNC channels, two ECO8020 instruments can be configured to work as a single system which practically doubles the number of channels available (up to 40 high density BNC channels and eight LTC channels). In the Box Tektronix ECO8020 Automatic Changeover Basic Unit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix ECO8020 Automatic Changeover Basic Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix ECO8020 Specs | Channels | 20 x mini BNC (primary and backup) and 4 x LTC channels via breakout cable | | Typical Return Loss | Base and Option REF 50 MHz Electronic Fast Switch Channels:
35 dB, 300 kHz to 6 MHz
25 dB, 6 MHz to 30 MHz
Option HREF 3 GHz Relay Switch Channels:
40 dB, 300 kHz to 6 MHz
30 dB, 6 MHz to 30 MHz
15 dB, 30 MHz to 1.5 GHz
10 dB, 1.5 GHz to 3 GHz | | Insertion Loss | Base and Option REF 50 MHz Electronic Fast Switch Channels:
< ±0.2 dB DC to 10 MHz
Typical < -1 dB DC to 50 MHz
Option HREF 3 GHz Relay Switch Channels:
< -0.1 dB DC to 10 MHz
Typical < -3 dB DC to 3 GHz
Equivalent to approx. 16 ft (5 m) of Belden 1694 cable | | Maximum Switched Voltage | Base and Option REF 50 MHz Electronic Fast Switch Channels:
-3 to 5 V
Option HREF 3 GHz Relay Switch Channels:
±2.5 V peak, 1.5 V RMS
Option LTC Channels:
±5 V | | Maximum Switched Current | (Option HREF only): 100 mA | | Crosstalk | Base and Option REF 50 MHz Electronic Fast Switch Channels:
< -60 dB, 300 kHz to 6 MHz
< -40 dB, 6 MHz to 50 MHz
Option HREF 3 GHz Relay Switch Channels:
< -48 dB, DC to 1.5 GHz
< -40 dB, 1.5 GHz to 3 GHz | | Relay Switch Interruption Time | (Option HREF only):
Time for Relays to Switch and Settle:
Typically 0.5 ms to 2 ms | | Channel Switch Settling Time | (Base and Option REF only with identical signals on both inputs):
Time for Relays to Switch and Settle:
Bi-Level and Tri-Level Sync:
Typically 5 ns glitch, then 125 ns to 90% of final value
AES and 1 V Word Clock:
Typically 5 ns glitch, then 250 ns to 90% of final value
5 V Word Clock:
Typically 25 ns glitch, then 500 ns to 90% of final value | | Preset Threshold Signal Types | Base and Option REF 50 MHz Electronic Fast Switch Channels:
NTSC, PAL, Tri-level, AES, 1 V word clock, 5 V word clock, custom
Option HREF 3 GHz Relay Switch Channels:
NTSC, PAL, Tri-level, AES, 1 V word clock, SD-SDI, HD-SDI, 3G-SDI, custom | | Signal Level Range to Detect Fault | With preset thresholds:
-2 dB to -4 dB from the nominal level for the selected signal type | | LTC Channels | LTC Threshold Presets:
0.5 to 5 Vp-p in 0.5 V steps, differential or single ended
LTC Load Range:
600 Ω to open circuit
Crosstalk:
< -60 dB for LTC signals
Switching Interruption Duration:
Typically 1 ms | | Power Source | Mains Ranges:
Voltage: 100 to 240 VAC
Frequency: 50/60 Hz
Power Consumption: 50 VA maximum | | Operating Temperature | +32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Altitude | To 9842 ft (3000 m) | | Regulatory | EMC:
Complies with EMC Directive 2004/108/EC
Safety:
Approved to: UL61010-1, CAN/CSA-C22.2 No.61010-1
Complies with: EN61010-1, IEC61010-1 | | Dimensions | 1.7 x 19 x 22" (4 x 48 x 56 cm) | | Weight | 10 lb (4.5 kg) |
