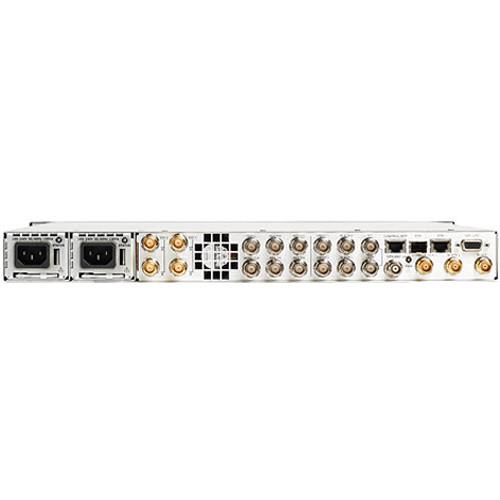

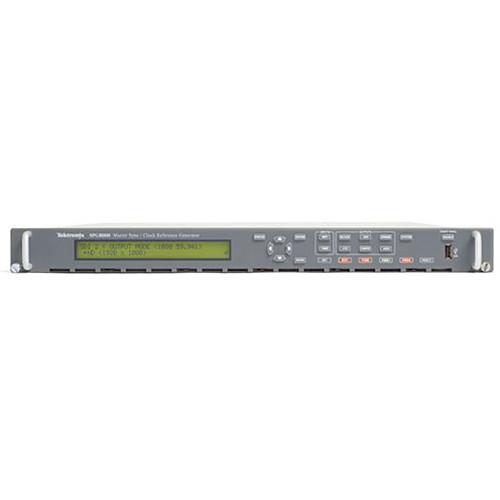

User Manual for Tektronix Master Sync Master Clock Reference Generator Click to enlarge the picture
Contents of the user manual for the Tektronix Master Sync Master Clock Reference
- Product category: Video & Audio Signal Generators Tektronix
- Brand: Tektronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tektronix Video & Audio Signal Generators
 |
User manual for the Tektronix Master Sync Master Clock Reference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tektronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tektronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tektronix product will considerably shorten its lifespan!
|
Product description Provided by third party: The SPG8000A is a precision multiformat video signal generator, suitable for master synchronization and reference applications. It provides multiple video reference signals, such as black burst, HD tri-level sync, and serial digital and composite analog test patterns, and it provides time reference signals such as time code, NTP (Network Time Protocol), and IEEE 1588 PTP (Precision Time Protocol).
- Key Features
-
- Multiple independent black burst and HD tri-level sync outputs provide all the video reference signals required in a video broadcast or production facility
- Four LTC outputs, VITC on black burst outputs, and NTP server provide time reference signals in a variety of formats
- PTP (IEEE 1588) support, including SMPTE ST 2059-2 and AES67 profiles
- GPS/GLONASS-based synchronization gives an accurate time-of-day reference and deterministic video phase reference across multiple independent systems
- Stay GenLock and Holdover Recovery prevent synchronization shock when the external reference input, PTP, or GPS/GLONASS signal is temporarily lost
- Wide selection of video test patterns in serial digital formats (SD, HD and 3G-SDI) and composite analog formats (NTSC and PAL)
- 4K/UHD formats support with full frame 100% and 75% color bars (Quad Link Square Division)
- Dual hot-swappable power supplies ensure continuous availability of reference signals
- Easy to manage with Web-based interface for remote configuration and SNMP for status and alert information
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix Master Sync Master Clock Reference Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix SPG8000A Specs | | | Type | Master timing generator | | Width | 19 in | | Depth | 22 in | | Height | 1.7 in | | Weight | 10.69 lbs | | | | Supported Video Standards | PAL, NTSC | | | | Nominal Voltage | AC 120/230 V | | Installed Qty | 2 | | Frequency | 50/60 Hz | | | | Terminals | (1) x USB - 4 pin USB type A
(1) x REF input - BNC - with loop through
(1) x DARS reference output - BNC
(1) x wordclock output - BNC
(4) x SDI output - BNC
(4) x AES / EBU output - BNC
(7) x composite video output - BNC
(1) x GPS input - BNC
(1) x GPI - 15 pin HD D-Sub (HD-15) | | | | Min Operating Temperature | 32
Rating100% users recommend this product to others. And what about you?
