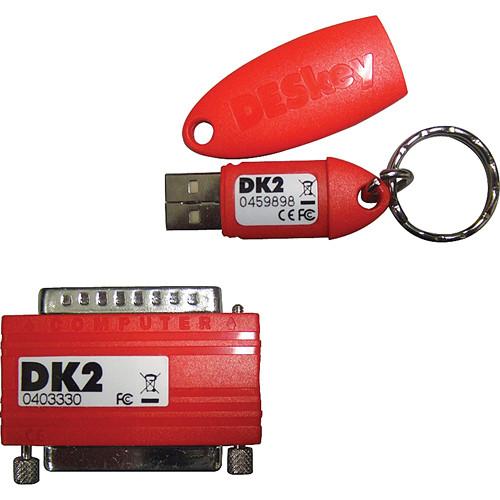

User Manual for Tektronix MTS4SA ES Security Dongle Key for Elementary Stream Analyzer Click to enlarge the picture
Contents of the user manual for the Tektronix MTS4SA ES Security Dongle Key
- Product category: Signal Measurement Tektronix
- Brand: Tektronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tektronix Signal Measurement
|
User manual for the Tektronix MTS4SA ES Security Dongle Key contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tektronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tektronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tektronix product will considerably shorten its lifespan!
|
Product description The Tektronix MTS4SA ES Security Dongle Key for Elementary Stream Analyzer allows you to add the individual Elementary Stream Analyzer module to the MTS4SA MPEG test system. Using the ES Analyzer module, you can perform Codec design, optimization, and conformance tests. You can also view the moving picture from within a PES (Packetized Elementary Stream) and carry out tests on the lower layers of an elementary stream within a transport stream. - Security dongle key for MTS4SA MPEG test system
- Allows you to add the individual Elementary Stream Analyzer module to the MTS4SA MPEG test system
- Elementary Stream Analyzer - performs Codec design, optimization, and conformance tests
- Allows you to view the moving picture from within a PES (Packetized Elementary Stream) and carry out tests on the lower layers of an elementary stream within a transport stream
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix MTS4SA ES Security Dongle Key for Elementary Stream Analyzer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix MTS4SA Specs | Supported Standards | Video
- H.264/AVC/MPEG-4 Part 10 - Baseline, Extended, Main, High 10, High 4:2:2, and High 4:4:4 profiles all levels 1 to 5:1
- MPEG-2 - Main Profile at Main, High, and High 1440 levels, 4:2:2 Profile at Main and High Levels
- VC-1 - All Profiles, all Levels
- MPEG-4 Part 2 - Simple Profile at Levels 0-5 and Advanced Simple Profile at Levels 0-5
- H.263 Baseline
- Uncompressed YUV, RGB, or grayscale color models, 8-16 bit sample depth, various chroma subsampling formats
Audio
- MPEG-1 Part 3 Layers I and II
- MPEG-2 Part 3 Layers I and II
- MPEG-2 Part 7 (AAC ) Main (Excludes LC and SSR)
- MPEG-4 Part 3 (HE-AAC) AAC Main, AAC LC (Low complexity, AAC LTP (Long-term prediction), SBR (Spectral Band Replication)
- Dolby Digital (AC-3) Baseline Standard, Annex D: Extended/alternate bit stream (playback and waveform only)
System Layer
Elementary streams contained within:
- MPEG-2 Transport Stream / Program Stream
- MP4 Parts 1, 12, and 15
- ASF
- 3GPP
- DVD VOB
- Quicktime MOV |
