User Manual for Tektronix P2221 Passive 1x 10x Voltage Probe Click to enlarge the picture
Contents of the user manual for the Tektronix P2221 Passive 1x 10x Voltage
- Product category: Waveform Monitor & Scope Accessories Tektronix
- Brand: Tektronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tektronix Waveform Monitor & Scope Accessories
|
User manual for the Tektronix P2221 Passive 1x 10x Voltage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tektronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tektronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tektronix product will considerably shorten its lifespan!
|

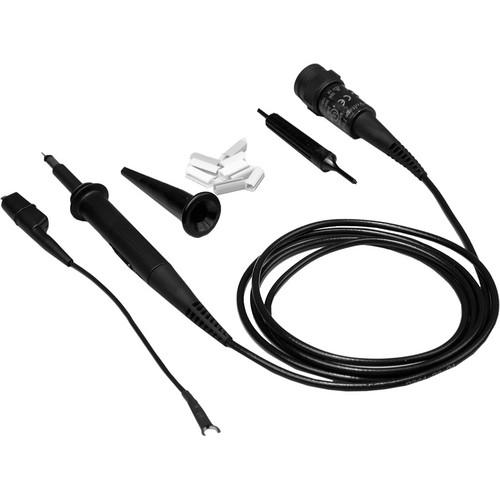

Product description The P2221 Passive 1x/10x Voltage Probe from Tektronix is a 200MHz passive voltage probes that permits the selection of 1x or 10x attenuation using a switch located on the probe head. This solution is well suited for use in relative low-frequency measurements, low-frequency computer and telecom measurements, power supplies, and low-frequency amplifiers. This model is compatible with MSO2000 and DPO2000 Series oscilloscopes. - This unit offers 1x/10x attenuation
- It supports bandwidth up to 200MHz
- It is 3.28' (1.5m) in length
- This unit is compliant with the following standards: UL3111-1, CSA1010.1, EN61010-1, EN61010-2-031, and IEC61010-2-031
In the Box Tektronix P2221 Passive 1x/10x Voltage Probe One-Year Warranty Against Defects in Materials & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix P2221 Passive 1x 10x Voltage Probe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix P2221 Specs | Specifications | 10x Position
Bandwidth: DC to 200MHz
Probe Length: 1.5m
Attenuation Ratio: 10:1
Compensation Range: 10 to 25pF
Input Capacitance: 17.0pF (typical)
Input Resistance: 10MOhms
Maximum Input Voltage: 300V CAT II
Maximum Voltage Between Reference Lead and Earth Ground: 30VRMS*1 1x Position
Bandwidth: DC to 6MHz
Probe Length: 1.5m
Attenuation Ratio: 1:1
Compensation Range: all oscilloscopes with 1 MOhms input
Input Capacitance: 110 pF (typical)
Input Resistance: 1 MOhms
Maximum Input Voltage: 150 V CATII
Maximum Voltage Between Reference Lead and Earth Ground: 30VRMS |
