Product description The P5050B 500 MHz Passive Probe with TekProbe Interface for TDS5000 from Tektronix is a high bandwidth, high impedance 10x passive voltage probe with a 10 MOhm input resistance. This probe features a small probe head and a sharp tip that makes it easier to probe dense circuitry. - Performance
-
- 500 MHz probe bandwidth
- Large input impedance at the probe tip (10 MOhm, 8 pF)
- 10X attenuation factor
- 300 V CAT II input voltage
- Ease-of-Use
-
- Compact probe head for probing small geometry circuit elements
- Small probe body for enhanced visibility to the Device-Under-Test
- Replaceable probe tip cartridges
- Large accessory set for versatile connectivity
- Connectivity
-
- TekProbe interface for direct BNC connection for oscilloscopes with 1 MOhm inputs
- Integrated oscilloscope and probe measurement systems feature intelligent communication that automatically scales and adjusts units on the oscilloscope display
- Applications
- Low power devices
- Service
- Manufacturing engineering
- Test research and development

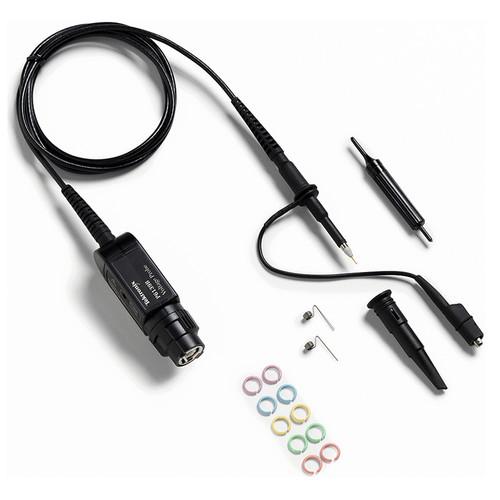

In the Box Tektronix P5050B 500 MHz Passive Probe with TekProbe Interface for TDS5000 2 x Long Ground Spring 6" Alligator Ground Lead Standard Hook Tip Universal IC Cap 3.8mm Marker Band Set (10) Adjustment Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix P5050B 500 MHz Passive Probe with TekProbe Interface for TDS5000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix P5050B Specs | Compatibility | TDS5000 Oscilloscope | | Attenuation | 10x | | Bandwidth | 500 MHz @ -3 dB | | Connector | BNC | | Input Resistance | 10 MOhm | | Input Capacitance | 8 pF | | Input Impedance | 10 MOhm, 11 pF (at probe tip) | | Maximum Voltage | 300 V rms CAT II | | Compensation | 16 to 22 pF | | Tip Size | 3.5 mm (comp) | | Cable Length | 4.3' (1.3 m) |
