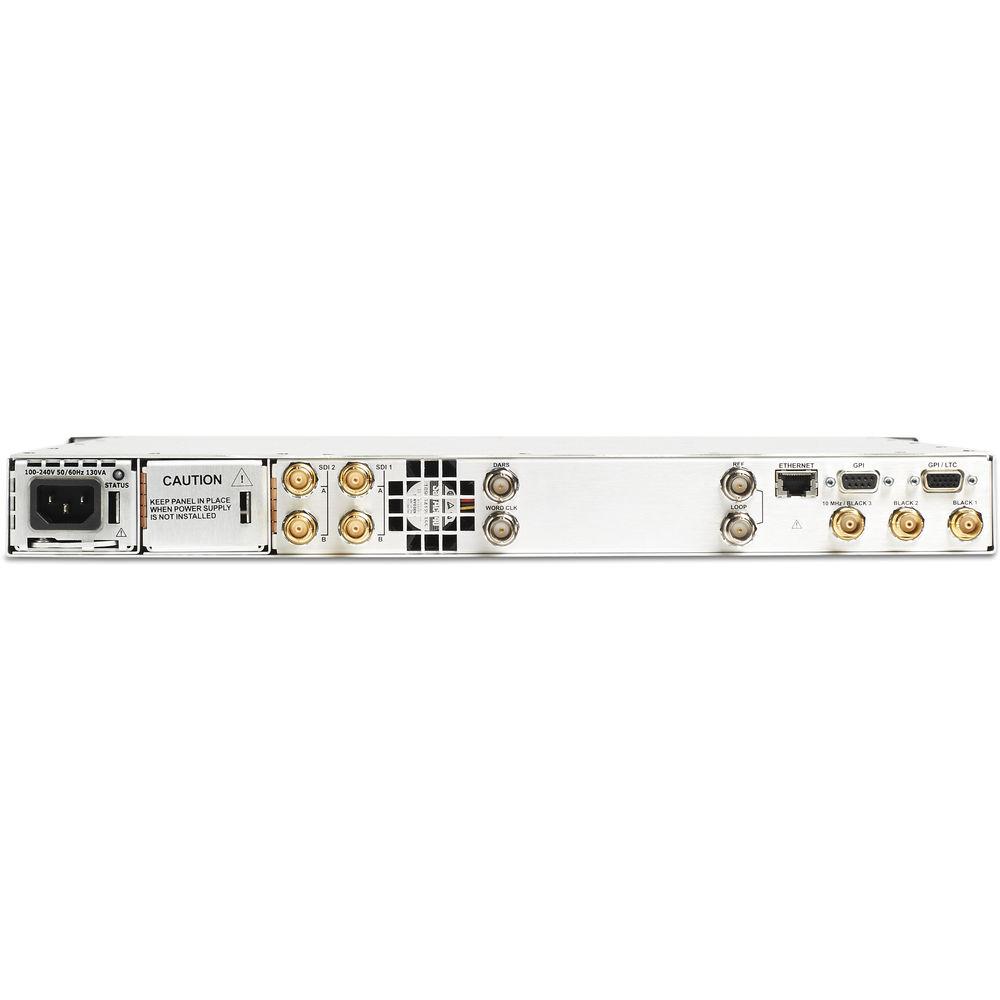

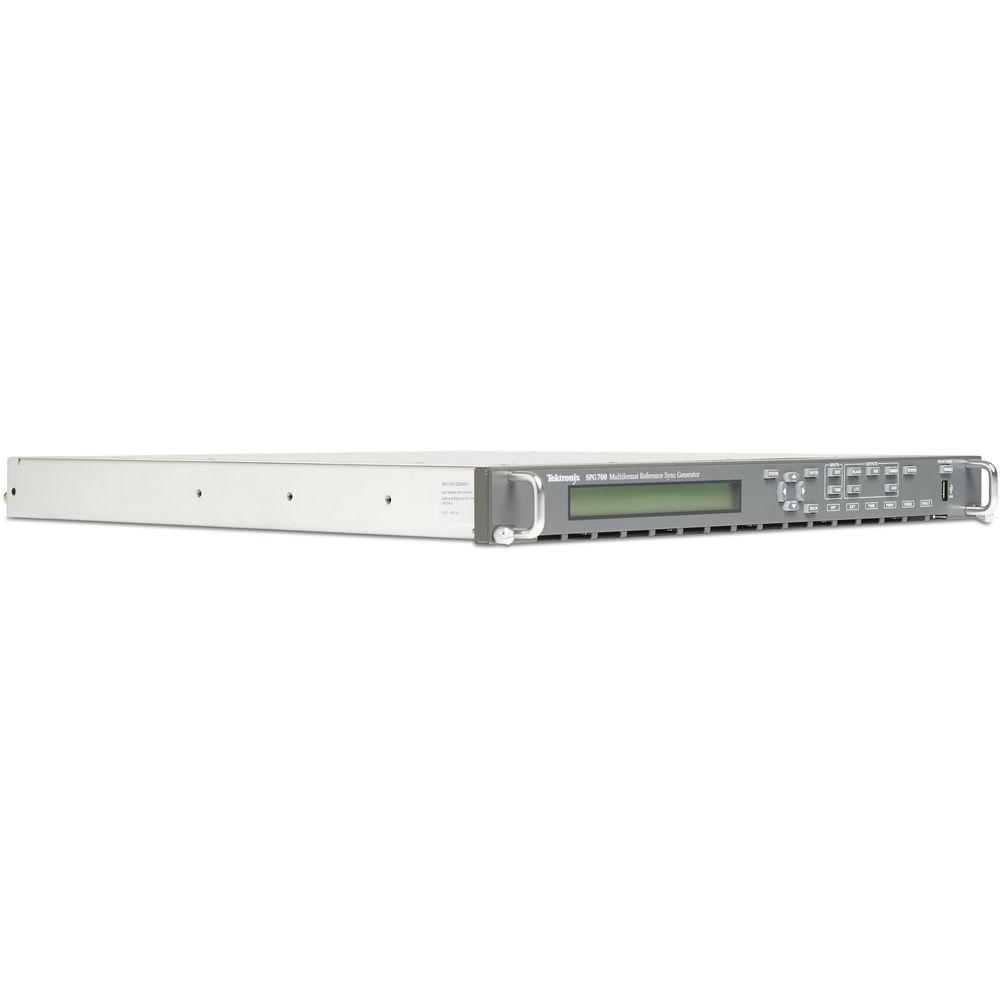

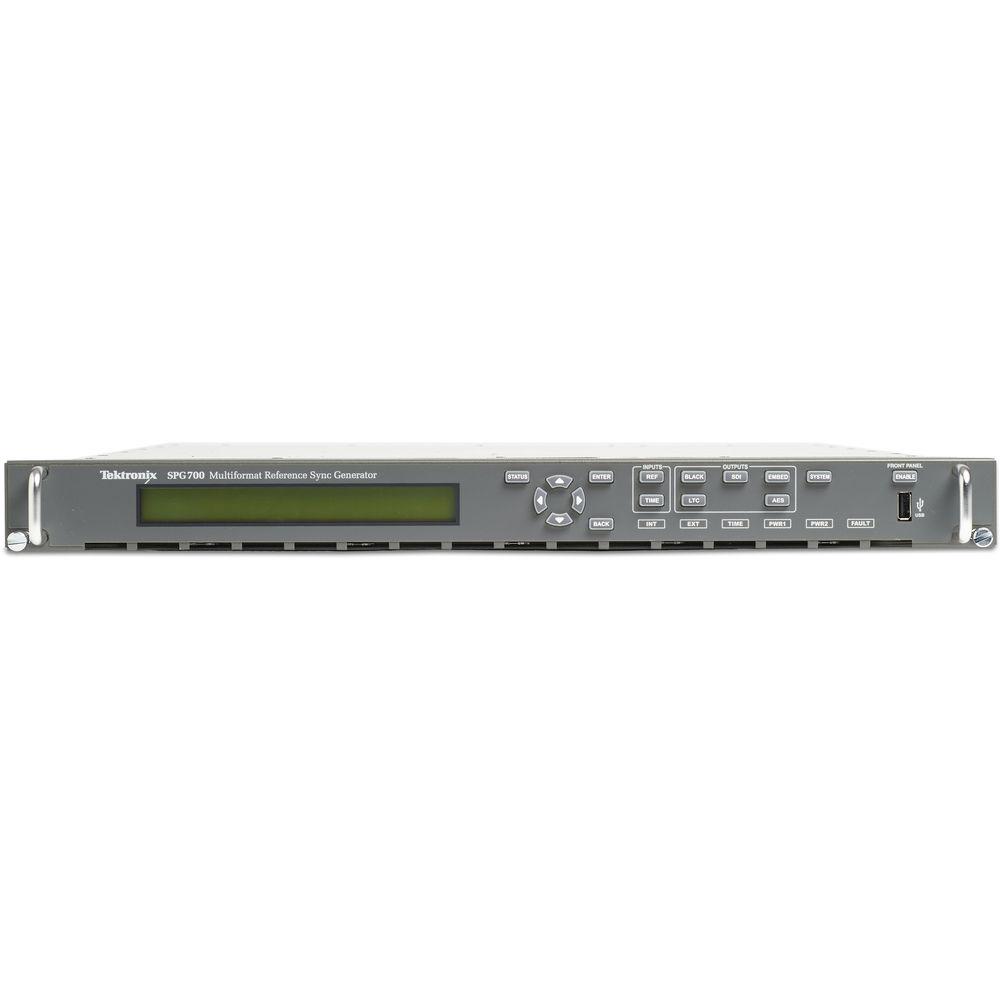

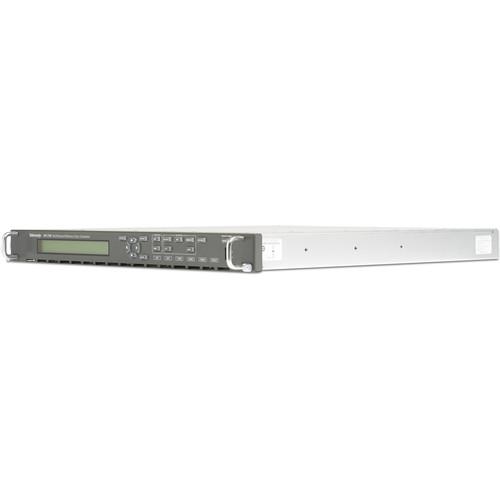

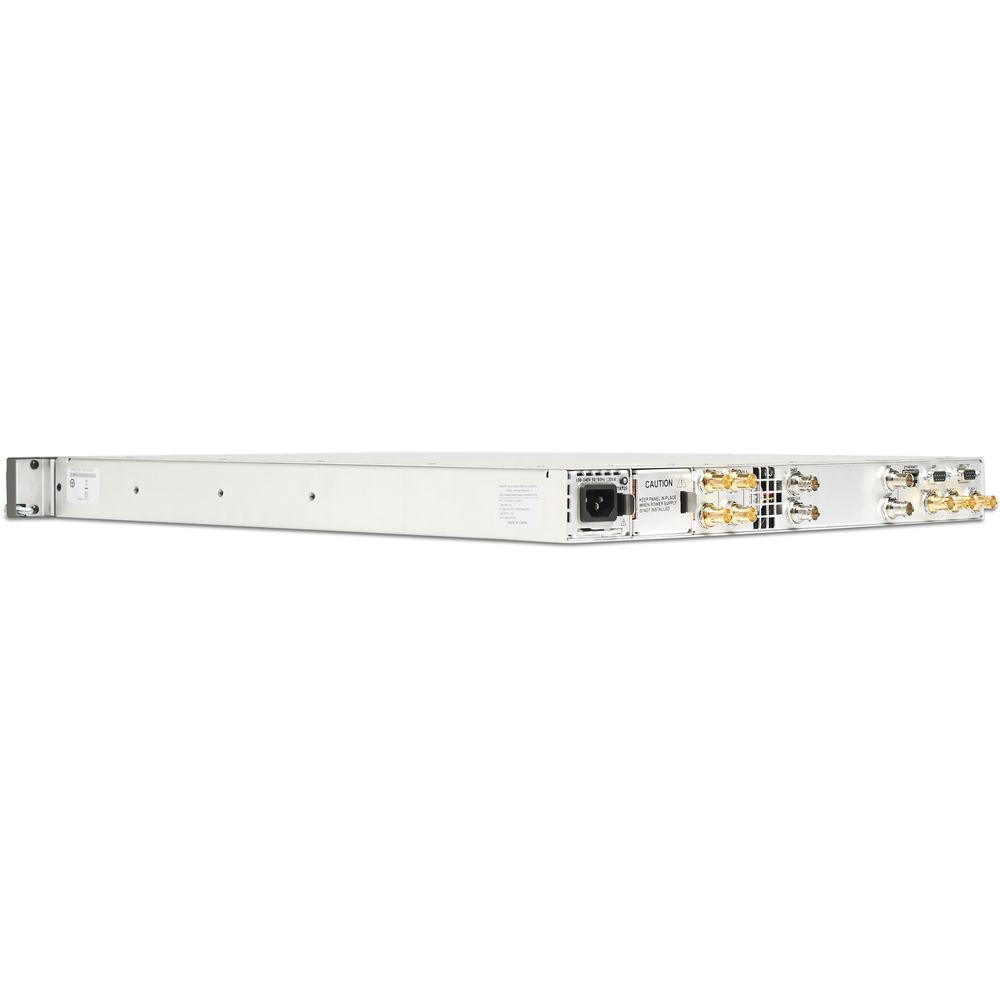

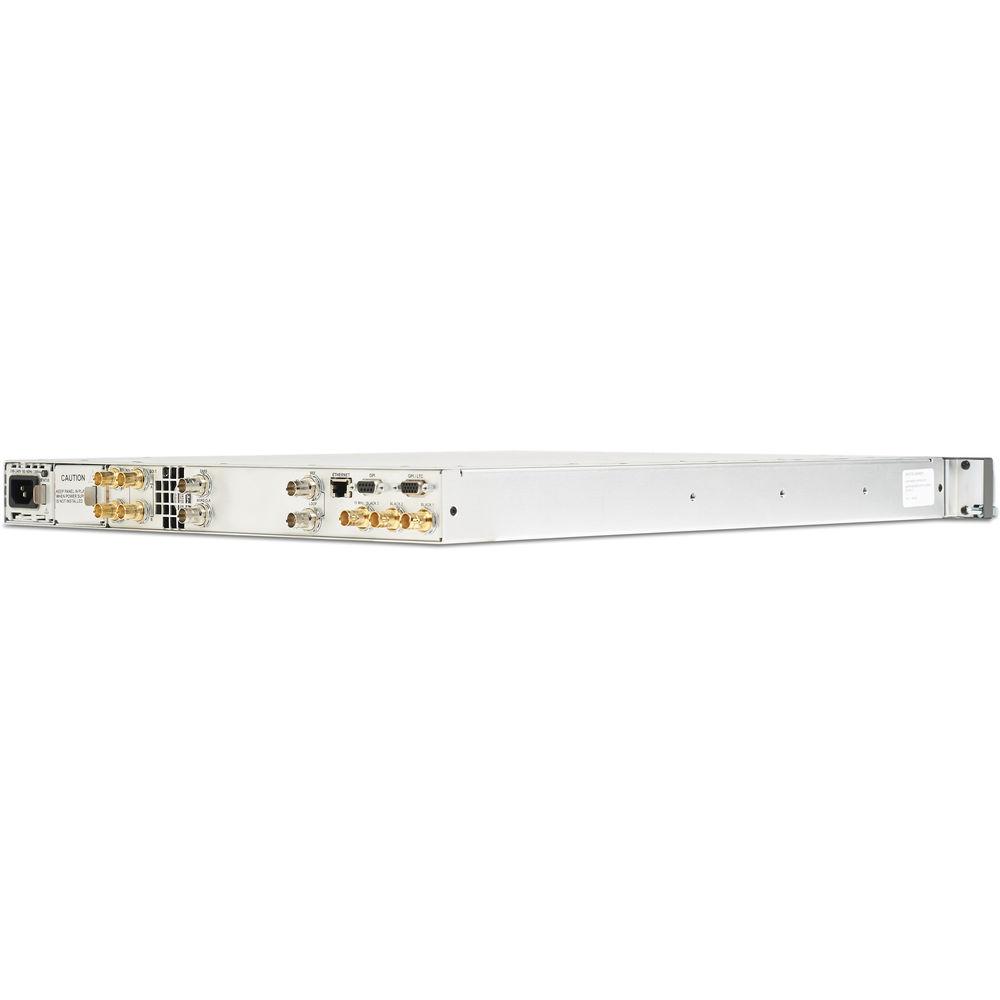

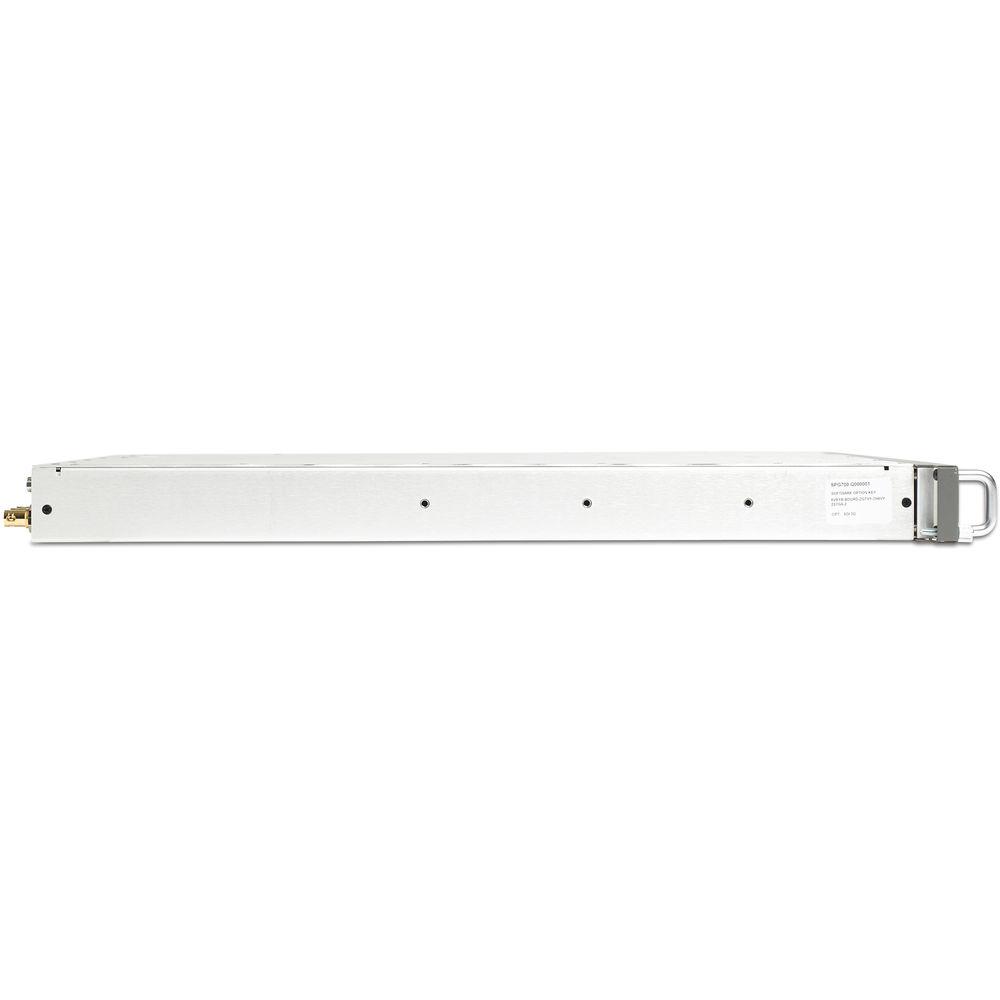

User Manual for Tektronix SPG700SDI Multiformat Reference Sync Generator with SDI Click to enlarge the picture
Contents of the user manual for the Tektronix SPG700SDI Multiformat Reference Sync Generator
- Product category: Video & Audio Signal Generators Tektronix
- Brand: Tektronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tektronix Video & Audio Signal Generators
|
User manual for the Tektronix SPG700SDI Multiformat Reference Sync Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tektronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tektronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tektronix product will considerably shorten its lifespan!
|
Product description The SPG700SDI Multiformat Reference Sync Generator from Tektronix comes with a 3G/HD/SD-SDI test signal generator support for traditional SDI-based video infrastructure. It provides multiple video reference signals, such as black burst and HD tri-level sync, audio reference signals such as DARS and 48 kHz wordclock, and it supports various timecode formats for time reference generator applications.The base configuration includes three sync outputs that can be configured with independent output formats (NTSC/PAL black burst and/or HD tri-level sync) and independently adjustable timing offsets. A high-accuracy, oven-controlled crystal oscillator provides a stable frequency reference for the system, or the pass-through GenLock input can be used to lock to an external video reference or 10 MHz continuous wave signal.The SPG700’s Stay GenLock feature avoids synchronization shock if the external reference suffers a temporary disturbance, by maintaining the frequency and phase of each output signal. When the external reference is restored, Stay GenLock ensures that any accumulated clock drift is removed by slowly adjusting the system clock within standard limits instead of jamming back to the correct phase.Time reference outputs are available in multiple formats. Three independent linear time code (LTC) outputs are available, and a fourth LTC connection can be used as input or output. Each LTC output has independent frame rate selection, time source (time-of-day or program time) and time zone offset. Vertical interval time code (VITC) is available on each NTSC or PAL black output, also with independent time sources and offset. - General Features
-
- Multiple independent black burst and HD tri-level sync outputs provide all the video reference signals, while DARS and 48 kHz wordclock provide all the audio reference signals required in a broadcast or production facility
- Four LTC outputs and VITC on black burst outputs provide time reference signals in a variety of formats
- Stay GenLock prevents synchronization shock when the external reference input is temporarily lost
- Wide selection of video test patterns in serial digital formats (SD, HD and 3G-SDI)
- 4K/UHD formats support with full frame 100% and 75% color bars (Quad Link Square Division)

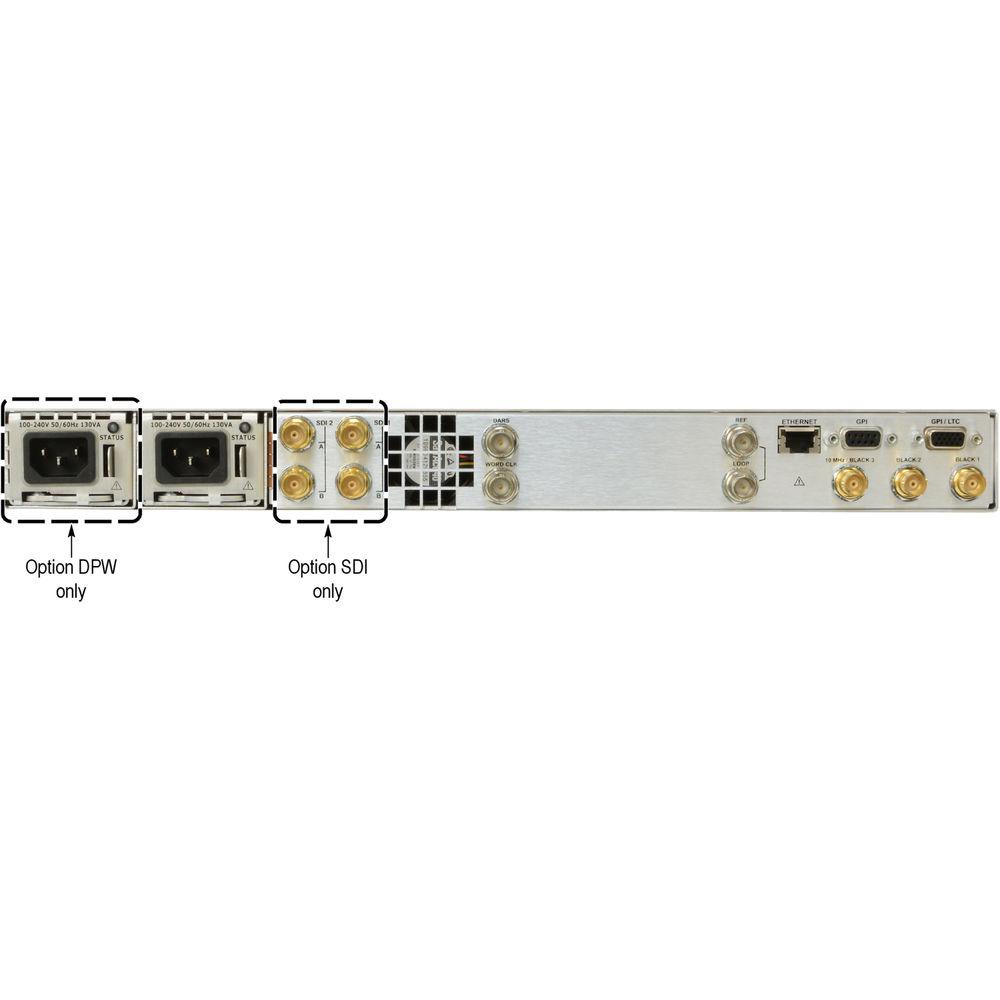

- Dual hot-swappable power supplies ensure continuous availability of reference signals
- Easy to manage with Web-based interface for remote configuration and SNMP for status and alert information
Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix SPG700SDI Multiformat Reference Sync Generator with SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix SPG700 SDI Specs | Connector | 2 x BNC, passive loop-through | Input Impedance | 75 Ohms | Input Signal | NTSC/PAL black burst HD tri-level sync: 1080/60/59.94/50i, 1080/30/29.97/25/24/23.98p, 1080/24/23.98psF, 720/60/59.94/50p 10 MHz continuous wave | Amplitude | -8 to 6 dB | S/N Ratio | >40 dB | SC/H Phase (free-run) | 0 ±40° | Return Loss | ≥30 dB at 300 kHz to 10 MHz | Lock | Lock Stability

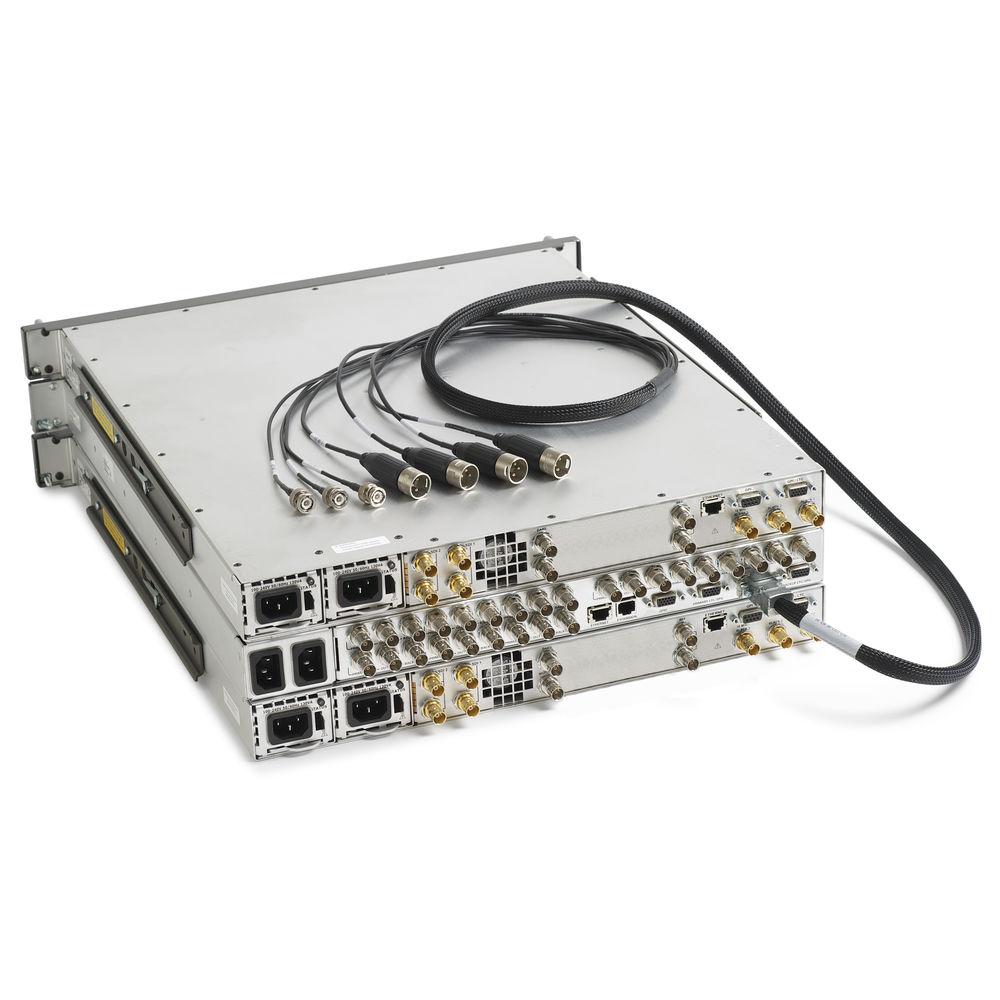

±3 dB Amplitude Change: <1 ns Jitter with Burst Lock: <0.5° Jitter with Sync Lock: <1 ns Jitter with CW Lock: <1 ns (typ. 1°) | | Timing | Timing Adjustment Resolution: <0.5° of NTSC/PAL subcarrier, 1 ns with tri-level sync input | Framing | Color Framing: Keeps accuracy even with ±45° SCH error of input reference signal | Range | Genlock Range: ±7.5 × 10-6 | | Source | LTC input or VITC read from NTSC/PAL genlock input | Time Zones | Time Zone Offset: −23:59 to 23:59 | Daylight savings | Daylight Saving Adjustment: Start/end from recurring calendar or manually scheduled, with adjustable offset | Second Order | Leap Second Adjustment: Inserted at 00:00 UTC on the scheduled date, or deferred up to 24 hours | | Type | LTC | Connector | Available through D-sub 15-pin connector. Optional break-out cable to XLR connector available | Formats | 24 fps (24 Hz or 23.98 Hz), 25 fps, 30 fps, 30 fps drop-frame (29.97 Hz) per SMPTE 12M | Timing | Timing to Video: Compliant with SMPTE 12M and continues to operate over at least 90% of possible timing range | Signal Voltage | 0.5 to 10 V p-p differential, 1 to 5 V p-p single ended | Tolerance | Noise Tolerance: -30 dB SNR RMS white noise with 10 kHz BW to the p-p signal level, or -10 dB SNR for 5 MHz white noise | Hum & Noise | Hum Tolerance: 0 dB hum-to-signal ratio | Immunity | Error Immunity: 100 consecutive frames with consistent time code must be detected for time to be considered valid | Input Impedance | Nominal 600 Ohms differential, 300 Ohms single ended | | Number of Outputs | 3 x Analog sync | Connector | 3 x BNC | Formats | NTSC/PAL black burst, HD tri-level sync, or 10 MHz continuous wave | Combination | NTSC/PAL Black Burst: Available on all outputs (BLACK 1-3) HD Tri-Level Sync: Black outputs 1-3 can independently produce any of the formats from the integer rate group (24, 25, 30, 50, 60 Hz) or the non-integer rate group. (23.98, 29.97, 59.94 Hz) 10 MHz CW: BLACK 3 output only | Output Impedance | 75 Ohms | Return Loss | ≥40 dB from 300 kHz to 5 MHz ≥25 dB from 5 MHz to 30 MHz | Black Burst Out | Standards: SMPTE 170M, ITU-R BT.1700-1, EBU N14, SMPTE RP154, RP318M-B Formats: NTSC-M (7.5 IRE black), NTSC-J (0 IRE black), PAL-B Timecode: Optional VITC insertion Line: One or two lines, user selectable Source: Time-of-day with adjustable offset, or program (elapsed) time counter Amplitude Accuracy: ±2% SCH Phase: < ±5° Timing Adjustment: Independent per output Range: Anywhere in the color frame Resolution: Clock resolution 18.5 ns (1/54 MHz) Fine resolution 0.1 ns on BLACK 1-3 | Sync Output | Type: HD tri-level Standards: SMPTE 240M, 274M, 296M, RP211 Formats: 1080 / 60 / 59.94 / 50i 1080 / 30 / 29.97 / 25 / 24 / 23.98p 1080 / 24 / 23.98 psF 720/ 60 / 59.94 / 50p Amplitude Accuracy: ±2% Timing Adjustment: Independent per output Range: Anywhere in the color frame Resolution: Clock resolution 13.5 ns (1/74.25 MHz) Fine resolution 0.2 ns for BLACK 1-3 | LTC Outputs | Number of Outputs: 3 or 4 (LTC1 is selectable as input or output) Connector: Available through D-sub 15-pin connector Formats: 24 fps (24 Hz or 23.98 Hz), 25 fps, 30 fps, 30 fps drop-frame (29.97 Hz) per SMPTE 12M Source: Time-of-day with adjustable offset, or program (elapsed) time counter Output Amplitude: 5 V ±10%, adjustable from 0.5 V to 5 V in 0.5 V steps | Word Clock | Connector: 1 x BNC Output Level: 5 VDC (CMOS compatible) or 1 V AC into 75 Ohms (AES level) Frequency: 48 kHz | SDI Output | Number of Outputs: 2 x independent test pattern generators with 2 outputseach Video Signal: Test pattern on both outputs or test pattern on one output and digital black on the second output Connector: 4 x BNC Output Impedance: 75 Ohms Output Amplitude: 800 mV p-p ±3% Overshoot: ≤1% (typical) Rise/Fall Time HD, 3G: ≤70 ps (typical) (20 to 80%) SD: ≤700 ps (typical) (20 to 80%) Jitter HD, 3G: ≤40 ps (typical) (alignment) ≤80 ps (typical) (timing) SD: ≤200 ps (typical) (alignment) ≤200 ps (typical) (timing) Timing Adjustment: Independent per generator channel Range: Anywhere in the frame Resolution: One clock cycle at the Y, G, or X pixel rate Return Loss: ≥15 dB from 5 MHz to 2.5 GHz (typical) ≥10 dB from 2.5 GHz to 3 GHz (typical) | SDI Formats Supported | Standards: SMPTE 259M, 272M, 291M Bit Rate: 270 Mb/s Formats: 720 x 486/59.94i (525 lines) 720 x 576/50i (625 lines) | HD Format Support | Standards: SMPTE 274M, 291M, 292M, 296M Bit Rate: 1.485 Gb/s and 1.485 / 1.001 Gb/s Formats: 1280 x 720: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98p 1920 x 1080: 60 / 59.94 / 50i 1920 x 1080: 30 / 29.97 / 25 / 24 / 23.98p 1920 x 1080: 30 / 29.97 / 25 / 24 / 23.98psF | Formats Supported | 3 Gb/s
Standards: SMPTE 291M, 424M, 425-1 Bit Rate: 2.97 Gb/s and 2.97/1.001 Gb/s Alpha Channel: Same as Y/G channel or flat field (0% to 100% in 10% steps) | Formats | Level A 1280 x 720: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98p
1920 x 1080: 60 / 59.94 / 50p 60 / 59.94 / 50i 30 / 29.97 / 25 / 24 / 23.98p 30 / 29.97 / 25 / 24 / 23.98psF 2048 x 1080: 30 / 29.97 / 25 / 24 / 23.98p 30 / 29.97 / 25 / 24 / 23.98psF
Level B Dual-Stream 2 x 1920 x 1080: 60 / 59.94 / 50I 30 / 29.97 / 25 / 24 / 23.98p 30 / 29.97 / 25 / 24 / 23.98psF
2 x 1280 x 720: 60 / 59.94 / 50i 30 / 29.97 / 25 / 24 / 23.98p | 4K Support | Outputs Output Mode: Quad Link Square Division Standards: All supported 3G/HD-SDI standards Formats: All supported 2048 x 1080 and 1920 x 1080 3G/HD-SDI formats Test Signals: Full Frame 75% & 100% color bars only | Test Patterns | Color Bars: 100%, 75%, SMPTE EG1, SMPTE RP219, SMPTE EG432-1 Flat Field: Full field 0% (Black), 50%, 100% (White), Red, Green, Blue, Cyan, Magenta, Yellow Linearity Test: Ramp, Limit Ramp, Valid Ramp, Shallow Ramp Matrix, 5/10 Step Staircase Monitor: Checkerboard, Clean Aperture, Convergence, Black-White Step Scale, Black-Dark Gray Step Scale, Pluge and Luma Reference, Production Aperture, Window, SMPTE 303M Color Reference, ChromaDuMonde SDI Pathological: Equalizer Test, PLL Test, SDI Matrix per SMPTE RP178/RP198 Frequency Response: Multiburst, Real-time parametric moving zone plate Pulses: 2T Pulse and Bar, Color Pulses, Co-siting Pulse Full-frame Picture: User-defined bitmap files (BMP format) can be downloaded to flash memory and displayed in any format | Overlay | Logo: 24-bit color bitmap file(BMP format)or 32-bit with transparency, up to 1920 x 1080 pixel size. Adjustable on-screen position. ID Text: Programmable string from front-panel entry (printable ASCII characters) or downloaded text file (UTF-8 encoding) for any Unicode characters. A preinstalled TrueType font is provided for Latin, Greek, and Cyrillic characters; an alternate TrueType font file may be downloaded to support other character sets. Character size is adjustable (%APH, 0.1% resolution). Burnt-in Time Code: On-screen display of the current time code value (HH:MM:SS:FF) for the output, updated every field. Character size is 10% APH. Circle: Adjustable diameter (%APH) Border: Text and circle overlays are rendered as near-white objects, with a selectable enclosing near-black bounding area. Blink: Text and circle overlays can blink on and off for dynamic on-screen activity Position: All overlay objects have adjustable on-screen position. | Embedded Audio | Standards: SMPTE 272M (SD), 299 (HD/3G) Active Channels: 16 channels (SD, HD, 3G-A), 32 channels (3G-B) Sample Frequency: 48 kHz Digital Coding: 24-bits (HD, 3G), 20-bits (SD) Signal Alignment: Async. and Sync. (no frame #), Synchronous (frame #) Tone Frequency: 10.0 Hz to 20000.0 Hz, 0.5 Hz resolution Level: -60 to 0 dBFS, 1 dB steps Channel Identification: Audible click, AES channel origin bytes | Ancillary Data | Error Detection and Handling: EDH packet inserted in SD-SDI signals per SMPTE RP165 Format: ATC-LTC and/or ATC-VITC Source: Time-of-day with adjustable offset, or program (elapsed) time counter
User-programmable ANC Packet Content: DID, SDID, DC, UDW (255), CS. Automatically calculate checksum and/or parity, or manual override. Location: Line number, sample offset, luma/chroma channel, virtual link (3G) Mode: Continuous insertion or single packet | Output | DARS Output Outputs: 2 channels (1 AES/EBU pair) Output Impedance: 75 Ohms, unbalanced Connector: 1 x BNC Output Amplitude: 1 ±0.2 V Sampling Frequency: 48 kHz (lock on video signal) Quantization: Linear PCM, 20 or 24 s (2's complement) Transfer Coding: Bi-phase mark | Internal Oscillator Performance | Frequency Accuracy in Internal Mode: ±135 × 10-9 over 1-year calibration interval Typically ±10 × 10-9 just after adjustment Frequency Accuracy over Temperature: ±2 × 10-9 for ±5 °C variation ±10 × 10-9 for 0 to 50 °C Frequency Variation from Vibration and Shock: ±25 × 10-9 from 6 ms half-sine shocks over 20g Frequency Drift: < ±100 × 10-9 per year for internal and Stay GenLock modes at constant temperature | Remote Access | Network Interface: 10/100/1000Base-T Configuration: Web-based user interface, HTML with JavaScript Management: SNMPv2 | GPI | Connector: 1 x 9-pin D-sub connector for all input/output lines, 2 x outputs and one input on the same 15-pin D-sub connector as the LTC signals Outputs: 3 x User-selectable to assert on specific events 1,2- Assert on one of: loss of lock, near loss of lock, loss of input signal, or timer expiry 3- Assert on logical OR of any of: fan fault, loss of lock, nearloss of lock, loss of genlock input Output Level: 0.5 to 5 V Inputs: 2 x Using 4 pins on connector 1 x User-selectable to jam sync or restart timer 2 x Three pins on connector to recall preset 1-7 Input Level: 0.8 to 2.4 V | Environmental | Power Consumption: 60 W (max) on active power supply input 60 W on backup supply input during 5 s daily load test Temperature: 32 to 122°F (0 to 50°C) Altitude: 9842' / 3000 m Source Voltage: 100 to 240 V, 50/60 Hz | Dimensions | 1.7 x 19 x 21.5" / 4.4 x 48.3 x 55.9 cm | Weight | 10.7 lb / 4.85 kg |
