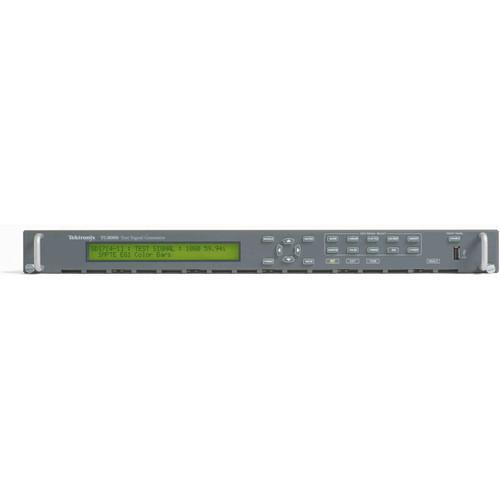

Product description The Tektronix TG8000 Multiformat Video Generator is a precision multi-format analog and digital signal generation platform designed for sync pulse and timecode generation in broadcasting applications and reference test signal generation in video equipment testing applications. It is a modular system, which can accommodate up to 4 user-changeable generator modules and one power supply module in a full-width 1RU form factor. A total of 12 different, separately sold modules are available for the Multiformat Video Generator, covering a wide range of interfaces and functions such as GPS synchronization and genlock, SD /HD/3G-SDI test signal generation, composite and component analog test signal generation, and audio test signal generation.
The TG8000 mainframe has a high-precision oscillator for master operation or for stable holdover operation when the genlock or GPS reference is interrupted. A 10/100/1000BASE-T Ethernet interface provides connectivity to the local network for remote operation, test pattern download, and an NTP server (when the GPS7 module is present). A General Purpose Input/Output (GPIO) interface is available to recall one of 7 user-configured presets and to report system alarms. The front-panel USB port can be used to easily download user-created test patterns and system preset information, and can be used for system upgrades. - Features & Benefits
-
- Multi-format analog and digital test signal generation
- Ideal channel configuration and performance to support reference generator needs Modular configurable platform
- Stay GenLock: Unique, robust genlock mode provides stable synchronization signals for digital and traditional broadcast facilities
- Can be used as a sync pulse generator and test signal generator for post-production and broadcast facilities, test signal generator for research and development, for equipment design and maintenance
In the Box Tektronix TG8000 Multiformat Video Generator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix TG8000 Multiformat Video Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix TG8000 Specs | Frequency | Frequency Accuracy in Internal Mode: ±110 × 10–9 over 1-year calibration interval. Typically ±10 × 10–9 just after adjustment.
Frequency Accuracy over Temperature: ±2 × 10–9 for ±41°F (±5°C) variation ±10 × 10–9 for 32 to 122°F (0 to 50°C).
Frequency Drift: < ±100 × 10–9 per year for internal and stay current frequency / stay genlock modes at constant temperature. | | Genlock | Range: ±50 × 10–6 | | Number of Slots | 4 x slots for modules
1 x Power Supply Slot | | Communication | USB 2.0 on front panel, 1000/100/10BASE-T on power supply module, GPIO interface for preset recall input, alarm output on power supply module | | Power Consumption | 135 W (maximum) | | Temperature | 32 to 122°F (0 to 50°C) | | Dimensions (H x W x D) | 15,000' (4,500 m) | | Source | Voltage: 100 to 240 V, 50/60 Hz | | Dimensions (HxWxL) | 1.7 x 19.0 x 21.5" (44.0 x 482.6 x 546.1 mm) | | Weight | 13 lb (6 kg) |
