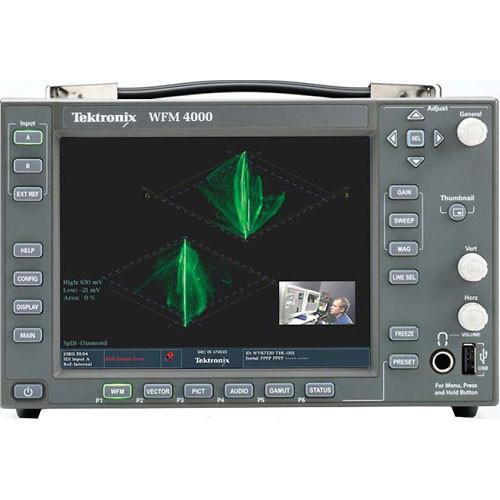

User Manual for Tektronix WFM4000 Multi-Format Portable Waveform Monitor Click to enlarge the picture
Contents of the user manual for the Tektronix WFM4000 Multi-Format Portable Waveform Monitor
- Product category: Waveform Monitors & Scopes Tektronix
- Brand: Tektronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tektronix Waveform Monitors & Scopes
|
User manual for the Tektronix WFM4000 Multi-Format Portable Waveform Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tektronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tektronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tektronix product will considerably shorten its lifespan!
|
Product description The WFM4000 Multi-Format Portable Waveform Monitor from Tektronix provide a basic video and audio monitoring solution with an integrated LCD high-brightness display. This unit supports SD-SDI (ITU-R BT.601) monitoring only. Audio functionality includes (16) channels of embedded audio and (1) input for (2) channels of digital AES audio.
The monitor offers CRT-like traces, patented gamut displays, picture thumbnail, display freeze, and an error log for 10,000 events for content compliance verification. Digital audio monitoring support includes audio bars, lissajous displays, and a front-panel headphone port. It can accept power from a 12VDC source, a battery, or a 100 to 240VAC converter.
Possible applications for this unit include confidence monitoring of SDI video and uncompressed digital audio, compliance checking in distribution and broadcast, content QA in production and post-production work, and portable monitoring on camera and field production. The unit is housed in a 3RU half-rack width short-depth chassis to accommodate space-constrained environments. - Interface
- This unit features an intuitive user interface with backlit buttons and online help and furthermore offers (32) user-configurable presets that can be used for custom functions.
- Display
- Its display offers sharp CRT-like trace quality for clear waveform monitoring with the look and feel of an analog display.
- Gamut
- Tektronix's patented displays alow colorists, editors, and operators to visualize whether content is compliant at a glance.
- Selectable View
- A range of display options lets users choose how they want information displayed on the monitor, allowing you to customize your display to meet your preferences and needs.
- Multiple Status Parameters
- The unit offers a breadth of statistical information to gauge status, including but not limited to alarms, quality statistics, and logging.
- Audio
- Controls for multiple audio parameters allows you to manage both embedded and digital AES audio signals.
In the Box Tektronix WFM4000 Multi-Format Portable Waveform Monitor Monitor Limited Lifetime Warranty:
(Lifetime is defined as a period ending five (5) years after Tektronix discontinues manufacturing the product (as determined by Tektronix), but the warranty period shall be at least ten (10) years from the date of purchase of the product by the original purchaser.) Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix WFM4000 Multi-Format Portable Waveform Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix WFM4000 Specs | Serial Digital Video Interface | Inputs: (2) only one active at a time
Input Type: passive loopthrough BNC, 75 Ohms compensated
Input Level: 800 mVp-p, +/-10%
Return Loss:
>25 dB from 1MHz to 270MHz, power on
>15 dB from 1MHz to 270MHz, power off
>15 dB from 1MHz to 1.5GHz, power on or off
Loopthrough Isolation: >50dB to 300MHz
Receiver Equalization Range: typically for SD, to 250m of type 8281 cable | | External Reference | Sync Formats: NTSC and PAL and tri-level sync
Input Type: passive loopthrough BNC, 75 Ohms compensated
DC Input Impedance: 20 kOhms, nominal
Return Loss:
>40dB to 6MHz
>35dB to 30MHz
Lock Range: +/-50 ppm | | Serial Digital Waveform Vertical Characteristics | Vertical Measurement Accuracy:
at x1 gain, +/-0.5% of 700mV full scale; at 5x gain, +/-0.2% of 700mV full scale
Gain:
1x, 5x, variable range 0.25x to >7.5x
Frequency Response:
SD Luminance (Y) channel +/-0.5% to 5.75MHz, color difference channels (Pb, Pr) +/-0.5% to 2.75MHz | | Waveform Horizontal Deflection | Sweep Timing Accuracy: +/-0.1%
Sweep Linearity: +/-0.1% | | Audio | Level Meter Resolution:
0.056 dB steps at 30 dB scale from full scale to -20dBFS;
0.20 dB steps at 70 dB scale for signals above -20dBFS
Meter Ballistics:
true peak, PPM type 1, PPM type 2, BBC PPM, extended VU
Defined/Programmable Level Detection:
Mute, clip, user programmable silence, over
Level Meter Accuracy Over Frequency:
-0.5 dB (for analog)
-0.2 dB (for digital) from 20Hz to 20KHz
0 to -40 dBFS sine wave, peak ballistic mode
AES Inputs: 1 set of 2 channels, 32KHz, 44.1KHz, 48KHz, 96KHz, 192KHz, 24 bit
AES Input Characteristics: BNC, 75 Ohms terminated, unbalanced, 0.2V to 2Vp-p
AES Input Return Loss: >30 dB relative to 75 Ohms from 0.1 to 6MHz | | Power | General:
12VDC input
Power adapter accepts 100 to 240 VAC -10%, 50/60 Hz
Voltage Range:
12 to 15 VDC nominal
10.75 to 18 VDC min to max operating
Supply Connection:
XLR 4 pin male connector
Pin 1 = V(-)
Pin 4 = V(+)
Pin 2,3 NC
Power Consumption:
22W typical
30W maximum
Surge: 6A at 12V
Fuse Rating: 4A internal self-resetting fuse
Transient, Over & Reverse: reverse and over voltage protected to +/-30VDC
Voltage Protection: unit may power itself down in the presence of high transient voltages. This prevents damage to the unit and is not a failure | | Dimensions (HxWxD) | 5.2 x 8.4 x 5.5" (13.2 x 21.34 x 13.97cm) | | Weight | 3.7 lbs (1.45kg) | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 17.5 x 14.5 x 12.5" |
