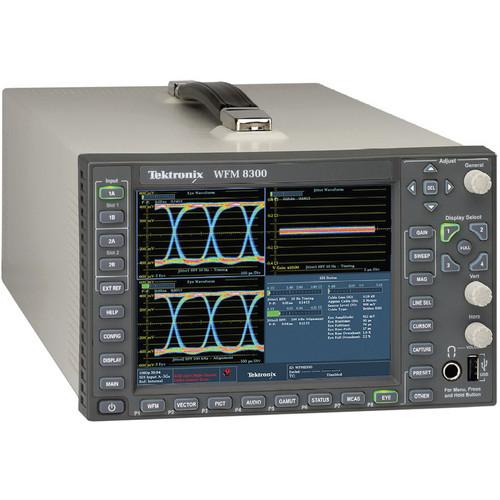

User Manual for Tektronix WFM8300 Advanced Analog SD HD 3G-SDIWaveform Monitor Click to enlarge the picture
Contents of the user manual for the Tektronix WFM8300 Advanced Analog SD HD
- Product category: Waveform Monitors & Scopes Tektronix
- Brand: Tektronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tektronix Waveform Monitors & Scopes
 |
User manual for the Tektronix WFM8300 Advanced Analog SD HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tektronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tektronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tektronix product will considerably shorten its lifespan!
|

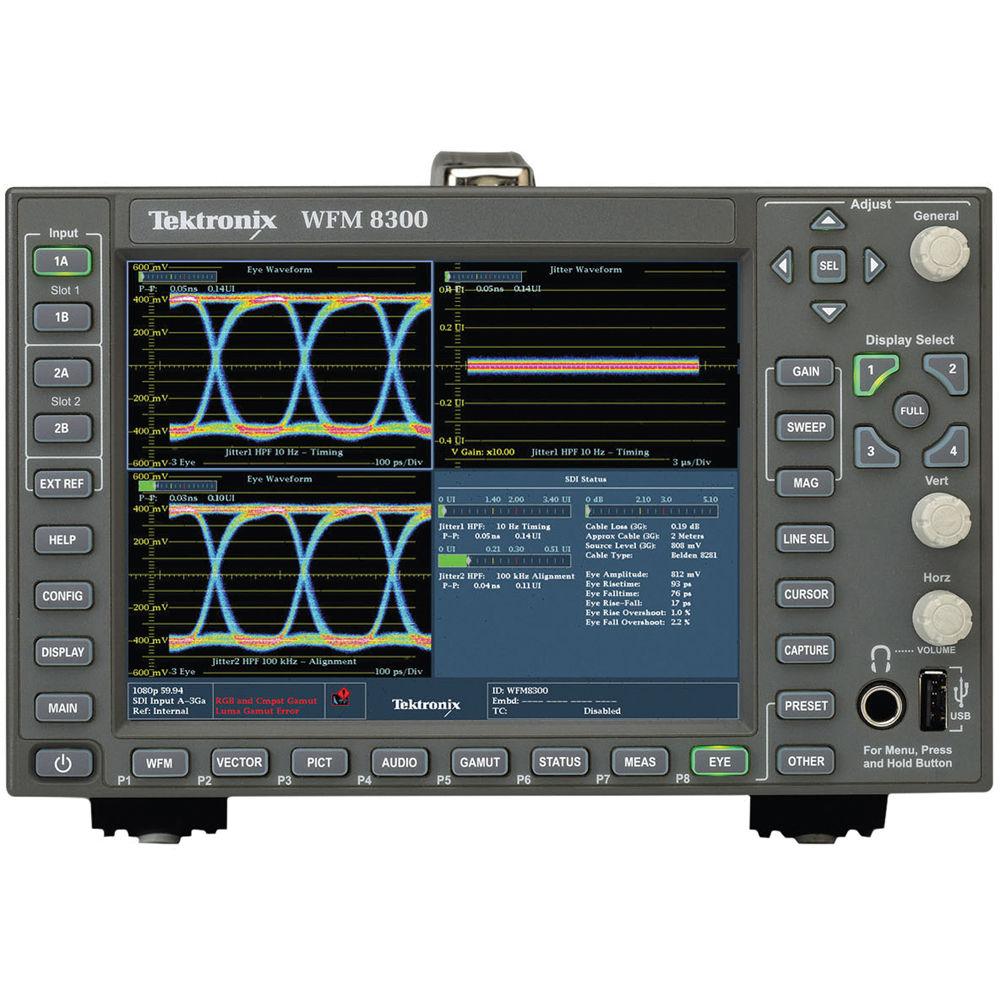

Product description The WFM8300 Advanced Analog/SD/HD/3G-SDIWaveform Monitor from Tektronix is designed to provide an array of measurement and monitoring capabilities for both video and audio signals. This model features the complete range of options of the product family and comes standard with HD/SD-SDI and dual-link video format support. The unit's performance can be enhanced with separate add-on options to include support for additional signal formats. It can provide monitoring and measurement for applications in a wide range of video formats, including composite analog, SD-SDI, HD-SDI, dual-link video formats, and 3G-SDI signals. It also offers support for a variety of audio formats, including analog, digital AES/EBU, digital embedded, Dolby Digital, and Dolby E. Video/Audio/Data Monitor & Analyzer All-in-One Platform - This unit comes standard with auto-detection of HD/SD-SDI and multiple dual-link video formats, including RGB and XYZ color space support.
- Optional capabilities include 3G-SDI (Level A and Level B) format support (Opt. 3G), composite analog video support (Opt. CPS), as well as analog and digital audio (Opt. AD), and Dolby E and Dolby Digital Audio (Opt. DDE) decoding and monitoring.
- This model comes standard with simultaneous input monitoring capability, ANC data inspector, and numerical/graphical display of A/V delay for analog, digital (with Opt. AD), and Dolby audio formats (with Opt. DDE).
Physical Layer Signal Integrity Analyzer - High-performance real-time eye pattern display, jitter measurements, and patented cable length measurement are separately available (Opt. PHY)
- Comprehensive eye pattern measurements are available, including eye amplitude, rise/fall time, and overshoot/undershoot measurements as well as Tektronix jitter waveform display (Opt. PHY)
- Field-upgradeable HD/SD-SDI eye pattern input module to full 3G-SDI and HD/SD-SDI support can be added with the purchase of an upgrade key (Opt. 3G)
Black Picture and Tektronix-Patented Frozen Picture Detection - Tektronix-patented timing and lightning displays facilitate accurate adjustment of critical plant timing.
- New Tektronix-patented Spearhead Display and Luma Qualified Vector Display facilitate precise color adjustment for post production applications (Opt. PROD)
Comprehensive Audio Monitoring - Multichannel surround sound display and flexible lissajous display is available (Opt. AD or Opt. DDE).
- Audio loudness monitoring can be added (Opt. AD or Opt. DDE).
- Comprehensive Dolby Metadata Decode and Display including VANC Metadata is available (Opt. DDE).
- User-selectable Dolby E Guard Band limits with intuitive Dolby E Guard Band meter can be added (Opt. DDE).
Comprehensive ANC Data Monitoring - Simultaneous CEA708/608 closed-caption monitoring, teletext, and OP47 subtitle monitoring are available.
- Detect and decode ANC data, including: AFD, WSS, Video Index, TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC, and ANC TC.
- ARIB STD-B35/B37/B39, TR-B22, and TR-B23 support are included.
Display Versatility - FlexVu provides flexible four-tile display and can be customized to various application needs to increase productivity.
- Standard and user-definable safe area graticules facilitate editing and format conversions tasks, reducing the need for reworks.
- Active Format Description (AFD) detects, decodes, and automatically adjusts graticule on picture display to enable easy identification of aspect-ratio related issues.
Usability - CaptureVu advanced video frame data capture simplifies troubleshooting and equipment setup.
- 32 instrument presets are available for quick recall of commonly used configurations tailored to engineers or operators.
- A front-panel USB port enables easy transfer of presets, captured video frame data, and screenshots.
- A front-panel headphone port enables quick verification of selected audio pair.
- Intuitive menu structure and context-sensitive help are designed to facilitate management.
- Extensive alarms, status reporting, and error logging are standard features.
- It features a high-resolution LED backlight display.
- SNMP and Ethernet remote interface capabilities and GPI control facilitate centralized monitoring and control.
In the Box Tektronix WFM8300 Advanced Analog/SD/HD/3G-SDIWaveform Monitor One-Year Warranty Against Defects in Materials & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix WFM8300 Advanced Analog SD HD 3G-SDIWaveform Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

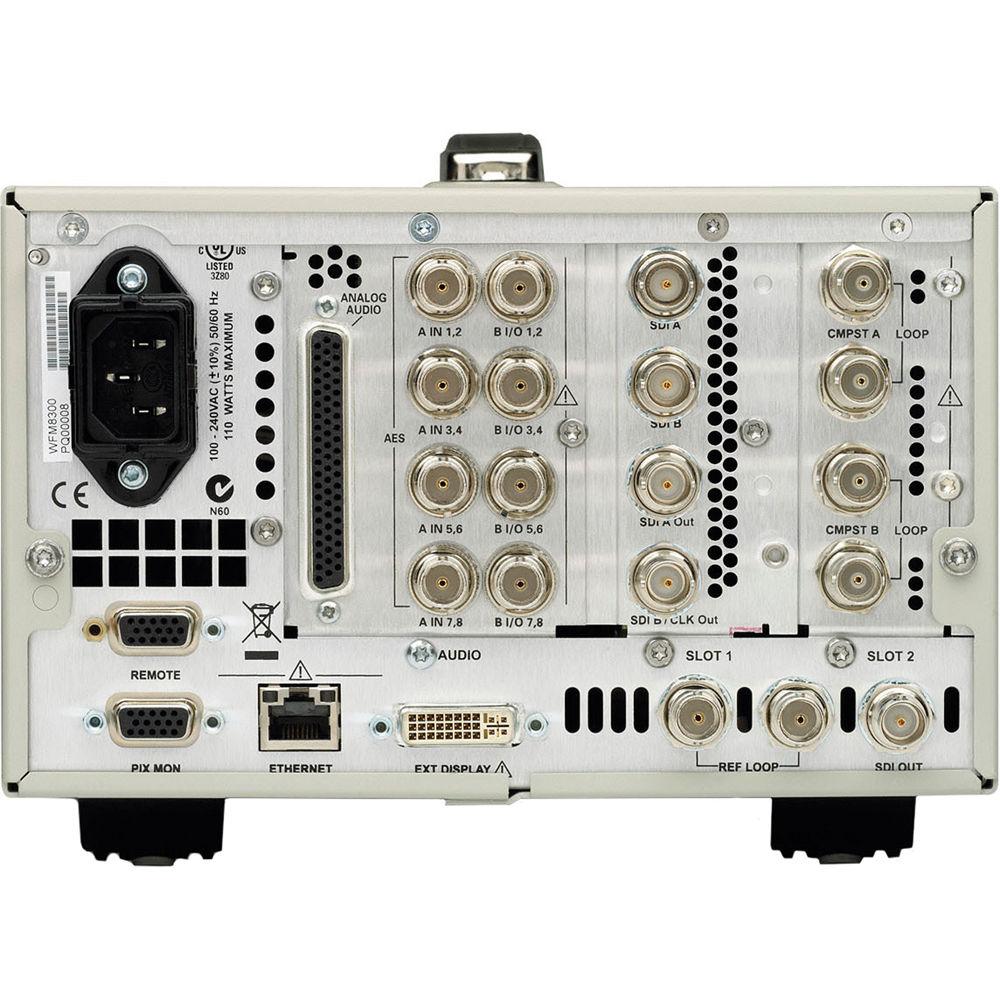

Technical parametersTektronix WFM8300 Specs | Inputs/Outputs | The following are the capabilities for this model. However, functionality may be dependent upon the purchase of separately available add-on options: Video Formats and Inputs
SD-SDI
HD-SDI
Dual Link
3G-SDI
Composite
Audio Formats and Inputs
Embedded and AES
Analog
Dolby E / Dolby D
Physical Layer Measurement Capabilities
Jitter
EYE
PHY
Other Capabilities
Advanced Gamut
A/V Delay
Simultaneous Monitoring
Advanced Data Analysis | | Power | 100 to 240VAC, +/-10%, 50/60Hz | | Dimensions (HxWxD) | 5.25 x 8.5 x 18.13" (133.4 x 215.9 x 460.4mm) | | Weight | Net: 12 lbs (5.5kg)
Shipping: 9.7 lbs (21kg) | | | | Package Weight | 13.34 lb | | Box Dimensions (LxWxH) | 25.59 x 14.96 x 13.78" |
