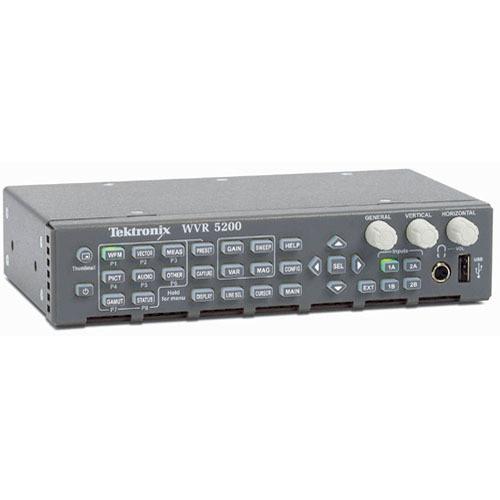

Product description The WVR5200 Waveform Rasterizer from Tektronix is a basic video Waveform Rasterizer that is equally at home in production studio control rooms, mobile trucks, editing and color correction suites, field production and QC. The WVR5200 accepts and loops-through reference sync signals via discrete Reference In/Out connectors for easy integration into a video facility. The unit can display the reference signal as an aid in troubleshooting facility sync. The WVR5200 can also provide its own internal sync when used as a standalone unit.

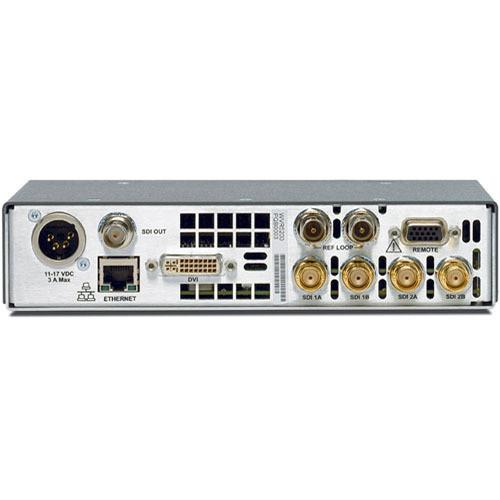

The WVR5200 comes standard with four SDI inputs. Each input features auto-detection of HD/SD-SDI and multiple Dual Link video formats for signal analysis and display on a monitor via SDI output or a DVI-I connector for flexibility. The CRT-like trace quality of the WVR5200 provides an analog look and feel to the waveform display screen. For audio monitoring the unit is equipped with a 1/4" headphone jack on the front.

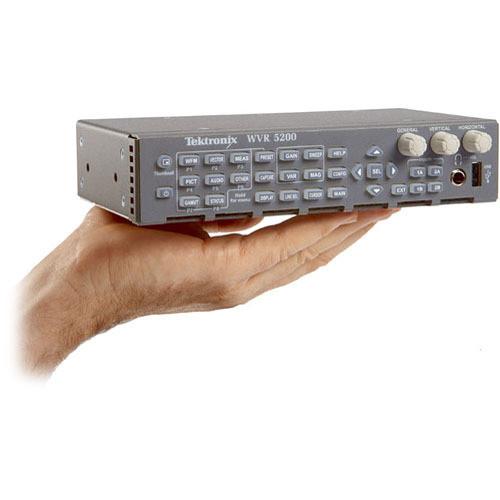

Designed to be flexible and portable, this unit is lightweight, small in size, and does not draw an excessive amount of power. At 8.4 x 5.5" the WVR5200 is about half the size of a sheet of paper and one rack unit in height. It draws a maximum of 35 watts at 12VDC, making it extremely portable with flexible powering options through its 4-pin XLR connector. The WVR5200 comes enabled with a variety of options to display the signal including Waveform display of external reference, Black Picture, Flexible Quad Tile Display and TandemVu. Also enabled are Tektronix's patented display technologies Diamond display, Arrowhead/Split Arrowhead display, Timing display, and Lighting display.
The WVR5200 comes with 32 user-configurable instrument presets which allow users to recall commonly used configurations. These configurations can be transferred to and from other WVR5200 units via a USB memory device, such as a flash drive, available separately. Screenshots and error logs can also be saved through the USB port. Feeding an LTC signal to the remote connector on the back of the unit allows for display of the LTC signal. The WVR5200 is controllable by SNMP over the Ethernet port on the back of the unit. In addition software upgrades for added features are available through both the USB and Ethernet ports. - Multiformat / Multistandard
- The WVR5200 auto detects and supports various video signals from SD-SDI Pal and NTSC up to Dual Link HD-SDI on each of its four SDI inputs. 3G-SDI support is available as an option. Multiple formats can be connected to the unit via the four discrete inputs and toggled through for display and analysis.
- Multiple Display and Analysis Options
- The WVR5200 is a digital device without a built-in monitor. It can display the full input signal on an output monitor and it can also display various diagnostic signal measurements on an output monitor.
Display Options:
Waveform:
RGB, YPbPr, YRGB, or pseudo-composite - in either Parade or Overlay mode. The WVR5200 waveform display has an analog feel, and sharp traces such as those found on a traditional CRT Waveform monitor.
Vector:
User selectable graticules, color targets and color axis.
Black and Frozen Frame Detection:
Used to alert the operator to issues with the transmission chain, can be automatically logged in an Error Log.
Patented Tektronix Gamut Display Technologies:
Diamond and Split Diamond color gamut display allow the operator to verify at a simple glance if the signal is RGB or Composite compliant. The Arrowhead display is able to monitor Composite gamut compliance from an SDI Component signal avoiding the need for a separate encoder.
Timing and Lighting Display for Facility and Interchannel calibration.
Quad Tile:
Allows the user to configure up to four different display options on one monitor screen. - Status Display
- The WVR5200 can present a variety of signal status displays that users can view and save to a USB memory device available separately.
Status Display Examples
- Current Alarm
- Alarm History - up to 10,000 entries
- Video Error Statistics
- User Programmable and Transferable Presets
- 32 User programmable presets allow you to configure your display options to monitor various parameters. Presets can be saved to a USB device and imported to any other WVR5200 providing for a speedy set up and consistent user experience.
Preset Examples
- Quad Tile specific settings
- Measurement assigned to each tile
- Input selection
- SDI input Settings
- External reference settings
- Alarm setting
- Gamut thresholds
- Display settings
- Graticule settings
- Upgradeable
- The WVR5200 has various upgrade options to further expand on the capabilities of the unit.
Option 3G
Support for 3G-SDI signal formats (Level A and Level B)
Option GEN
3G/HD/SD-SDI Color Bar and Pathological Signal Generation Capability
Note: Requires Option 3G for 3G-SDI Signal Generation
Option CAM
Simultaneous monitoring of up to 4 camera inputs
Option Prod
Advanced Gamut Monitoring Package including Spearhead Display and Luma Qualified Vector Display
Option Data
ANC Data Inspector, and advanced Data Analysis capabilities. Ancillary Data Monitoring which includes decoding of 708 and 608 Closed Captions, Teletext and OP47 Subtitles, AFD, and CGMS-A
Option AUD
16-channel Embedded AES Audio Monitoring
Including Multichannel Surround Sound Display
Option LOUD
Audio Loudness Monitoring Capabilities
Loudness Meter
Loudness Trend Chart
Loudness Data Logging
Note: Requires Option AUD to be installed In the Box Tektronix WVR5200 Waveform Rasterizer Power Supply US Power Cord 4-pin Power Cord Instructions Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tektronix WVR5200 Waveform Rasterizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTektronix WVR5200 Specs | | | Input Type | 4 x BNC: Internally Terminated 75Ω
Auto-detection between 3G, Dual Link, HD and SD Signals
3G support optional | | Input Level | 800 mVp-p, ±10% | | Input Equalization | Maximum Cable Run Using Type 1694A Cable
270 Mb/s = 705' (215 m)
1.5 Gb/s = 656' (200 m)
3 Gb/s = 426' (130 m) | | Output | SDI Switched Output
Selected, Active Input or Test Signal | | Return Loss | Inputs and Outputs - Power On or Off
>15 dB from 1 MHz to 1.5 GHz
>10 dB from 1.5 GHz to 3 GHz | | | | Monitor/Headphone Out | 1/4" Phono | | Monitor Output | Signal Format
DVI-I Output XGA
1024 x 768, 60 Hz Vertical Rate | | | | Internal/External | Selectable | | | | Sync Formats | NTSC
Pal
Tri-Level Sync | | DC Input Impedance | 20kΩ, Nominal | | Return Loss | >40 dB to 6 MHz
>35 dB to 30 MHz | | Lock Range | ±50 ppm | | | | Serial Digital Waveform Vertical Characteristics | Vertical Measurement Accuracy
At 1 x Gain, ±0.5% of 700 mV Full Scale
At 5 x Gain, ±0.2% of 700 mV Full Scale
Gain
1x, 5x, Variable Range 0.25 x to >7.5x
Freqency Response
SD
Luminance (y) Channel ±0.5% to 5.75 MHz
Color Difference Channels (Pb, Pr) ±0.5% to 2.75 MHz
HD
Luminance (Y) Channel ±0.5% to 30 MHz
Difference Channels (Pb, Pr) ±0.5% to 15 MHz | | Horizontal Waveform Characteristics | Sweep Timing Accuracy
±0.1%
Sweep Linearity
±0.1% | | | | Optional Mounting Accessory Notes | Optional 1U Rack Mount Kits Available
VTSRACK-L1: Full-depth 1RU rack to fit a single WVR5200
VTSRACK-L2: Full-depth 1RU rack to fit one or two
WVR5200, WVR5000, SPG300 side by side
VTSRACK-S2: Short-depth 1RU rack to fit one or two WVR5200
side by side | | | | USB | 1x USB 2.0 Port on Front Panel
Supports Transfer of the below:
Presets
Screenshots
Error Logs | | Ethernet | 1x RJ-45 10/100/1000
Note: Supports Manual and DHCP Address Modes | | Remote | LTC
1x 15-pin D-SUB Female
LTC Input Signal
Longitudinal Time Code - per IEC Publication 461
LTC Signal Amplitude Range
0.2V[p-p] to 5.0V[p-p] balanced differential or single-ended
Ground Closure Input Signal
TTL Thresholds, 5V Max Input, -0.5 Min Input; Pull Low to Assert
Ground Closure Output Signal
One Open Collector Output | | | | Power Connector | 1x XLR 4-Pin Male | | Voltage Range | 12 to 15 VDC Nominal
10.75 to 18 VDC Min-Max Operating Voltage | | Power Consumption | 27 W
35 W Max | | Fuse Rating | 4A Internal Self-Resetting Fuse | | Protection Rating | ±30V DC Overvoltage and Reverse Voltage
Note: Unit Powers Down in Presence of High Transient Voltage. | | Power Supply (AC) | 100V to 240VAC ±10%, 50/60Hz | | Temperature & Humidity | Operating Conditions
Temperature: 32 to 104°F (0 to 40°C)
Humidity : 20% to 80%
Storage Conditions
Temperature: -4 to 140°F (-20 to 60°C)
Humidity : 55 to 90% | | Dimensions (H x W x D) | 1.7 x 8.4 x 5.5" (43 x 213 x 140 mm)
1U | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 8.55 lb | | Box Dimensions (LxWxH) | 17.4 x 14.9 x 12.4" |
