User Manual for Tele Vue Accessory Package for NP127is Telescope Click to enlarge the picture
Contents of the user manual for the Tele Vue Accessory Package for NP127is
- Product category: Other Telescope Accessories Tele Vue
- Brand: Tele Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tele Vue Other Telescope Accessories
 |
User manual for the Tele Vue Accessory Package for NP127is contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tele Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tele Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tele Vue product will considerably shorten its lifespan!
|
Product description This Tele Vue Accessory Package gives you valuable mounting and observation gear for your TV-NP127is Nagler-Petzval APO refractor optical tube assembly (OTA). It includes a 5" ring set that can be used to mount the OTA onto a variety of heads or mounting adapter plates and dovetails. For observation purposes, you get an 18.2mm DeLite eyepiece that yields a low 36x power on the NP127 OTA and a 2" Everbrite diagonal that comes with an eyepiece reducer adapter to use the smaller eyepiece in the telescope's large focuser drawtube. - DeLite Series 18.2mm Eyepiece (1.25") Tele Vue engineered this long focal length DeLite Series 18.2mm Eyepiece to produce a low magnification on most OTAs, and be as sharp and clear as their venerable Delos line, but smaller and more lightweight. The eyepiece features fully multi-coated optics that maximize light transmission and improve color and contrast across its entire wide 62° field of view. An exceptionally-long 20mm eye relief allows users to back off the eyecup for a more comfortable viewing experience with a greatly reduced risk of interfering vibrations caused by accidental contact with the eyepiece lens. The eyepiece is outfitted with their proprietary locking eyeguard which lets you set the eye relief in the perfect position whether you wear glasses or not. This DeLite has a barrel diameter of 1.25" to fit into the most common size focusers and accessories, and is parfocal with all Tele Vue Group 'B' eyepieces, allowing you to change compatible eyepieces without having to refocus - saving time and limiting vibrations.
- Compatible Parfocal Group 'B' Eyepieces
-
- 8 - 32mm Plossl eyepieces
- All DeLite eyepieces
- 19 & 24mm Panoptic eyepieces
- 3.5 - 12mm Delos eyepieces
- 16mm Nagler 5 eyepiece
- All 1.25" Nagler 6 series eyepieces

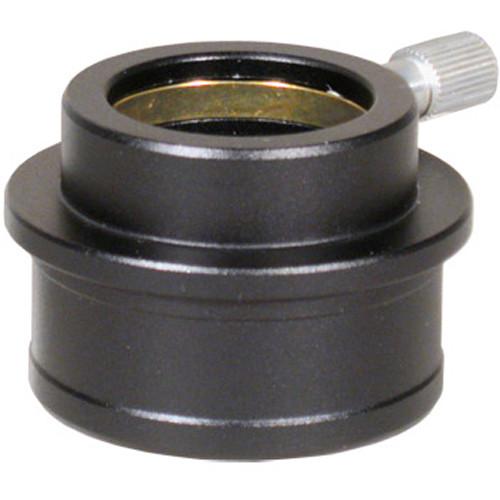

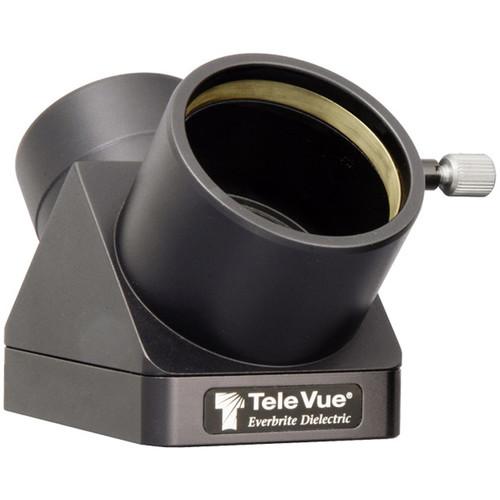

- Everbrite 90° Star Diagonal Reducer Kit (2") Built to the exacting standards that define the brand, the 2" Tele Vue Everbrite 90° Star Diagonal is outfitted with a Pyrex optical glass mirror that has been coated with the proprietary Everbrite coatings that bring reflectivity to an amazing 99%. This virtually eliminates light loss and produces bright and clear images across the entire visual spectrum so colors are rendered accurately and resolution remains tack sharp. This version of the Everbrite is outfitted with a 2" barrel and eyepiece holder for use with larger equipment, and a 1.25" reducer adapter is included to allow the smaller and more popular-sized eyepieces to also be usedThis diagonal is machined from a single block of aluminum to ensure permanent alignment of the incoming and outgoing light and to eliminate heavy accessories from forcing the diagonal body to "unscrew" from the barrel—as can occur with two-piece diagonals. A non-marking or marring brass clamp ring holds the eyepiece firmly in place without damaging it, and the diagonal is outfitted with blackened anti-reflection 48mm filter threads. Placing the filter threads on the diagonal body makes observations easier by allowing users to change eyepieces without having to move the filter every time magnification is changed.

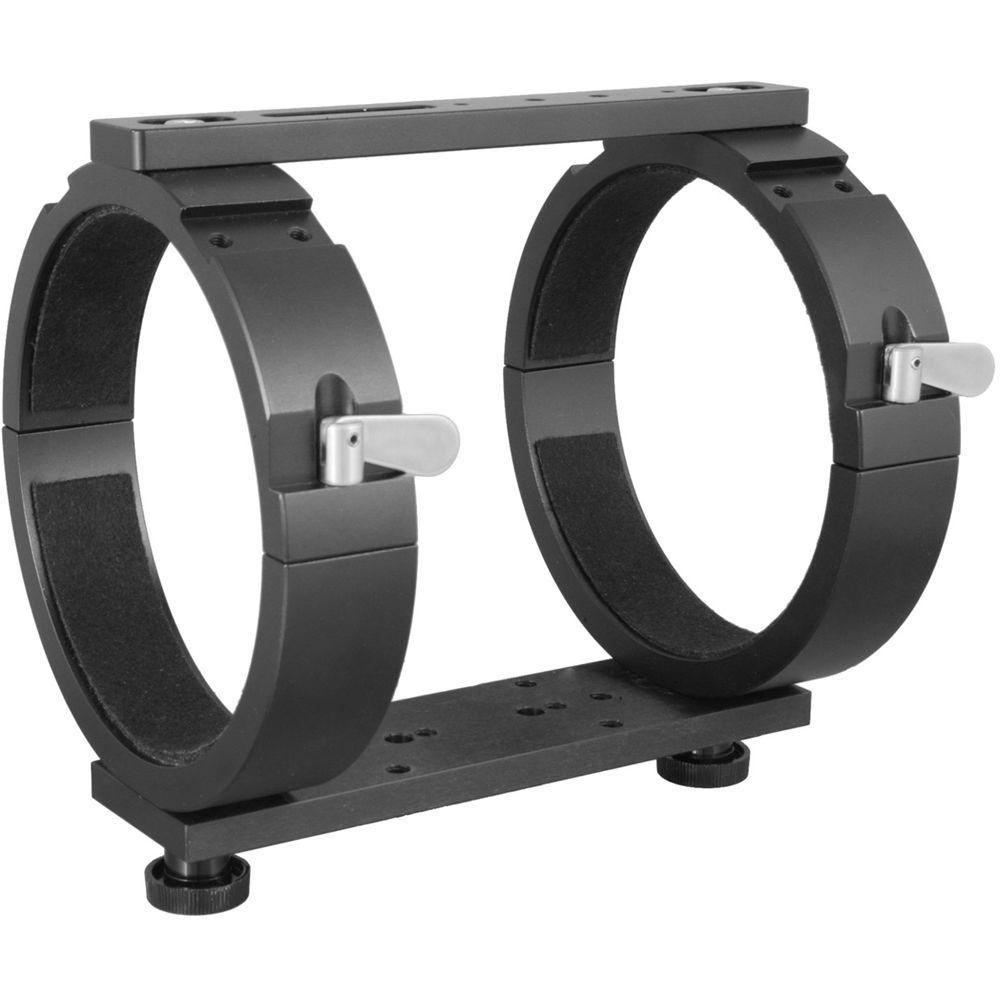

- Mount Ring Set for 5" OTAs The 5" Tele Vue Mount Ring Set provides a rigid and stable means of attaching any compatible optical tube assembly (OTA) to most mounts or heads. Its individual rings can be spaced from 5.5" to 6.5" apart to allows the Mount Ring Set to accommodate a variety of OTAs and mounts. Each ring has 2 accessory channels with #10-32 tapped holes, and 1/4"-20 tapped holes on the top and bottom of each ring to accept the accessory bar, the bottom plate, a stud, or a bolt as necessary. The included bottom plate is drilled to mate to a variety of mounts or mounting adapter plates, including Tele Vue's Vixen Mount Adapter and Gibraltar5 Head.
In the Box Bundle Items DeLite Series 18.2mm Eyepiece (1.25") rwewfwyqzxvccfartves - Limited Lifetime Warranty
Everbrite 90° Star Diagonal Reducer Kit (2") Mount Ring Set for 5" OTAs Table of Contents
|
Upload User Manual
Have you got an user manual for the Tele Vue Accessory Package for NP127is Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DeLite Series 18.2mm Eyepiece (1.25")
| Focal Length | 18.2mm | | Apparent Field of View | 62
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
