Product description

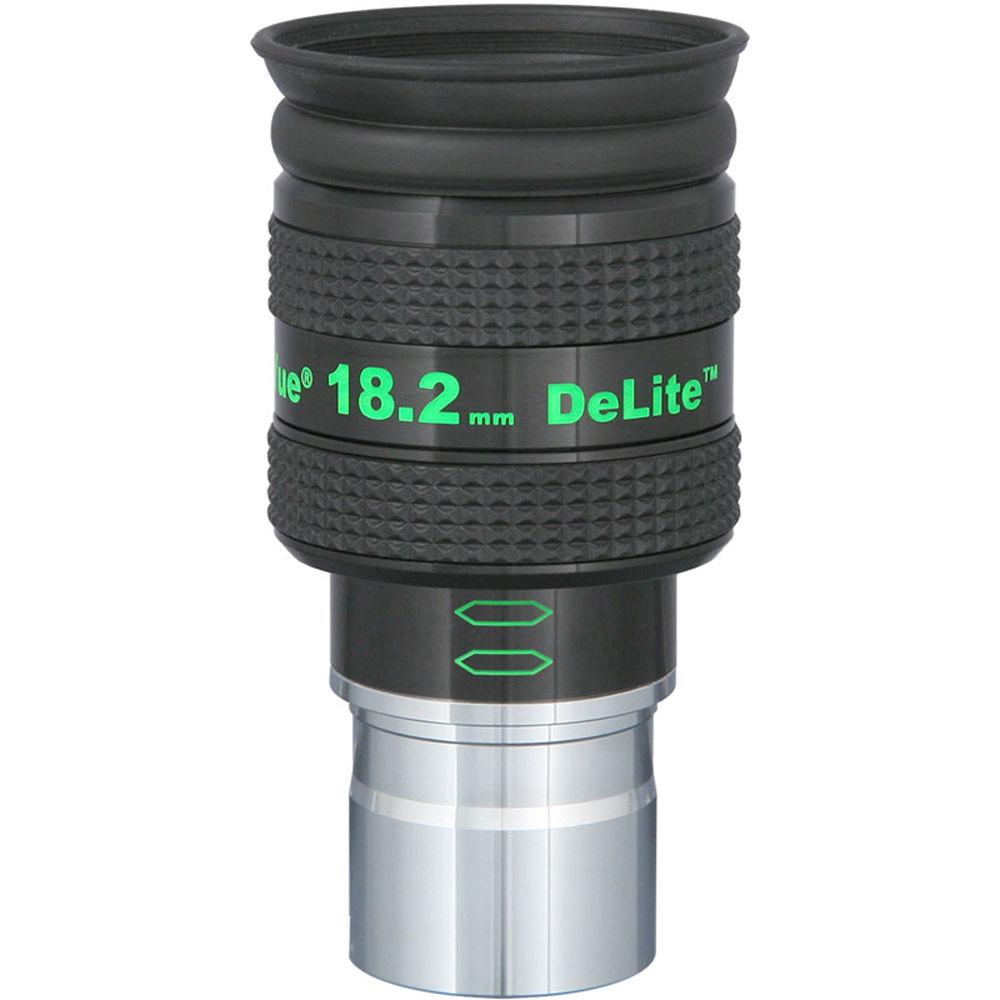

• DeLite Series 18.2mm Eyepiece (1.25") Tele Vue engineered this long focal length DeLite Series 18.2mm Eyepiece to produce a low magnification on most OTAs, and be as sharp and clear as their venerable Delos line, but smaller and more lightweight. The eyepiece features fully multi-coated optics that maximize light transmission and improve color and contrast across its entire wide 62° field of view. An exceptionally-long 20mm eye relief allows users to back off the eyecup for a more comfortable viewing experience with a greatly reduced risk of interfering vibrations caused by accidental contact with the eyepiece lens. The eyepiece is outfitted with their proprietary locking eyeguard which lets you set the eye relief in the perfect position whether you wear glasses or not. This DeLite has a barrel diameter of 1.25" to fit into the most common size focusers and accessories, and is parfocal with all Tele Vue Group 'B' eyepieces, allowing you to change compatible eyepieces without having to refocus - saving time and limiting vibrations.
  Compatible Parfocal Group 'B' Eyepieces
  • • 8 - 32mm Plossl eyepieces
    • All DeLite eyepieces
    • 19 & 24mm Panoptic eyepieces
    • 3.5 - 12mm Delos eyepieces
    • 16mm Nagler 5 eyepiece
    • All 1.25" Nagler 6 series eyepieces

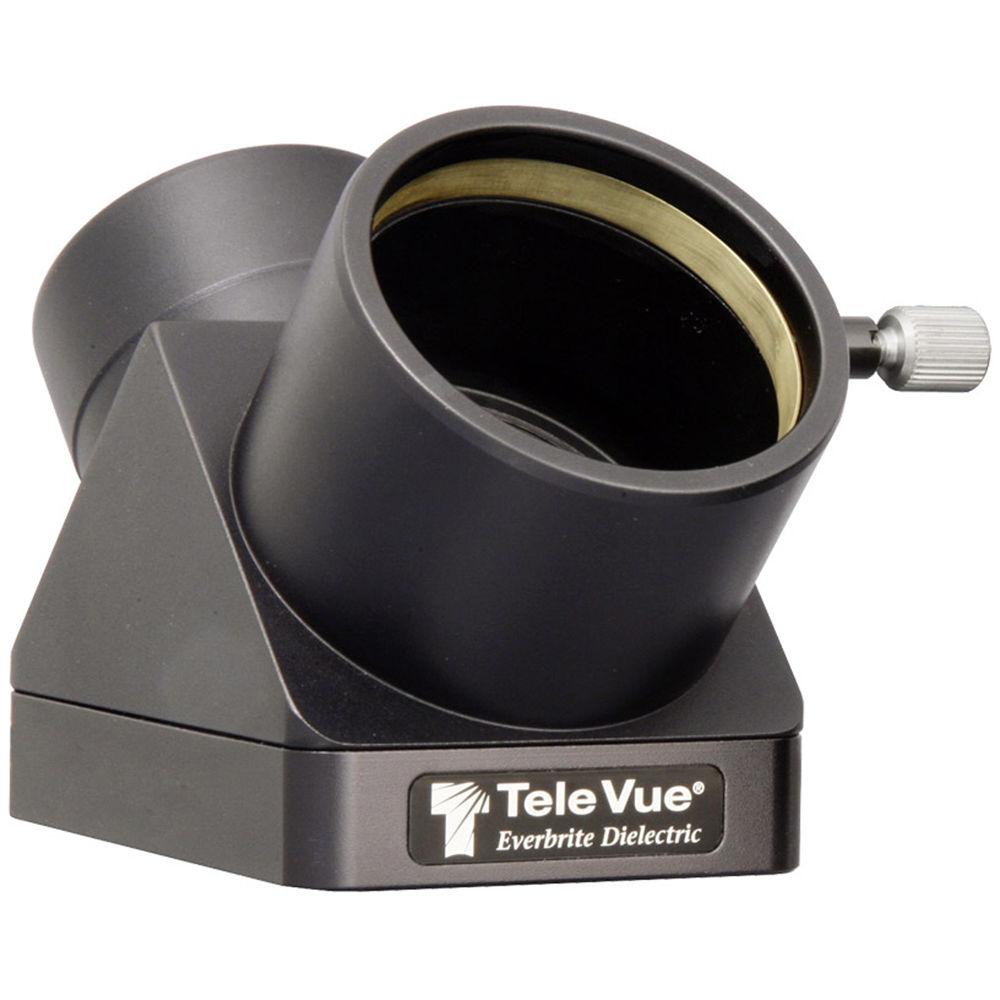

• Everbrite 90° Star Diagonal Reducer Kit (2") Built to the exacting standards that define the brand, the 2" Tele Vue Everbrite 90° Star Diagonal is outfitted with a Pyrex optical glass mirror that has been coated with the proprietary Everbrite coatings that bring reflectivity to an amazing 99%. This virtually eliminates light loss and produces bright and clear images across the entire visual spectrum so colors are rendered accurately and resolution remains tack sharp. This version of the Everbrite is outfitted with a 2" barrel and eyepiece holder for use with larger equipment, and a 1.25" reducer adapter is included to allow the smaller and more popular-sized eyepieces to also be usedThis diagonal is machined from a single block of aluminum to ensure permanent alignment of the incoming and outgoing light and to eliminate heavy accessories from forcing the diagonal body to "unscrew" from the barrel—as can occur with two-piece diagonals. A non-marking or marring brass clamp ring holds the eyepiece firmly in place without damaging it, and the diagonal is outfitted with blackened anti-reflection 48mm filter threads. Placing the filter threads on the diagonal body makes observations easier by allowing users to change eyepieces without having to move the filter every time magnification is changed.

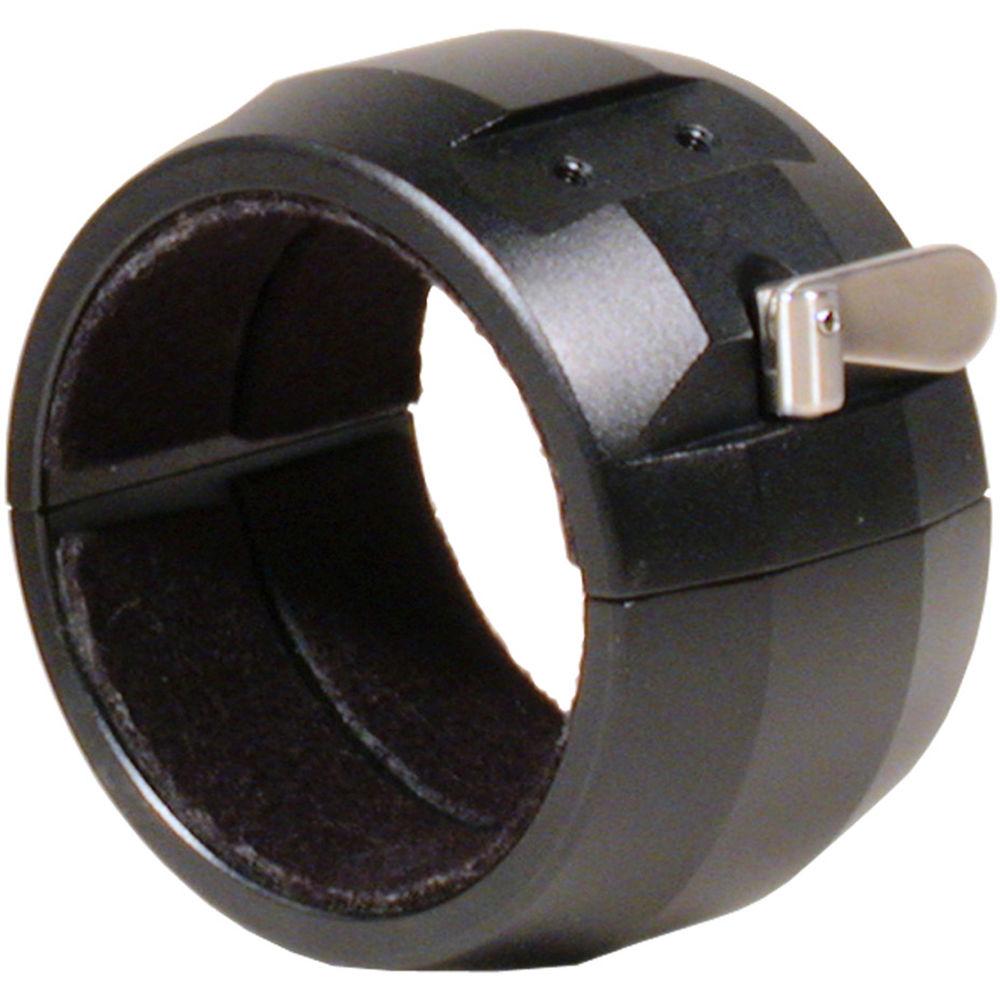

• 3" Ring Mount (Satin) The Tele Vue 3" Ring Mount attaches to specific Tele Vue optical tube assemblies, and has a tension clamp which allows you to quickly adjust the position of the optical tube assembly within the ring.  This allows an ideal balance point, which moves depending upon the weight of visual/imaging accessories and the angle of the scope relative to the ground.

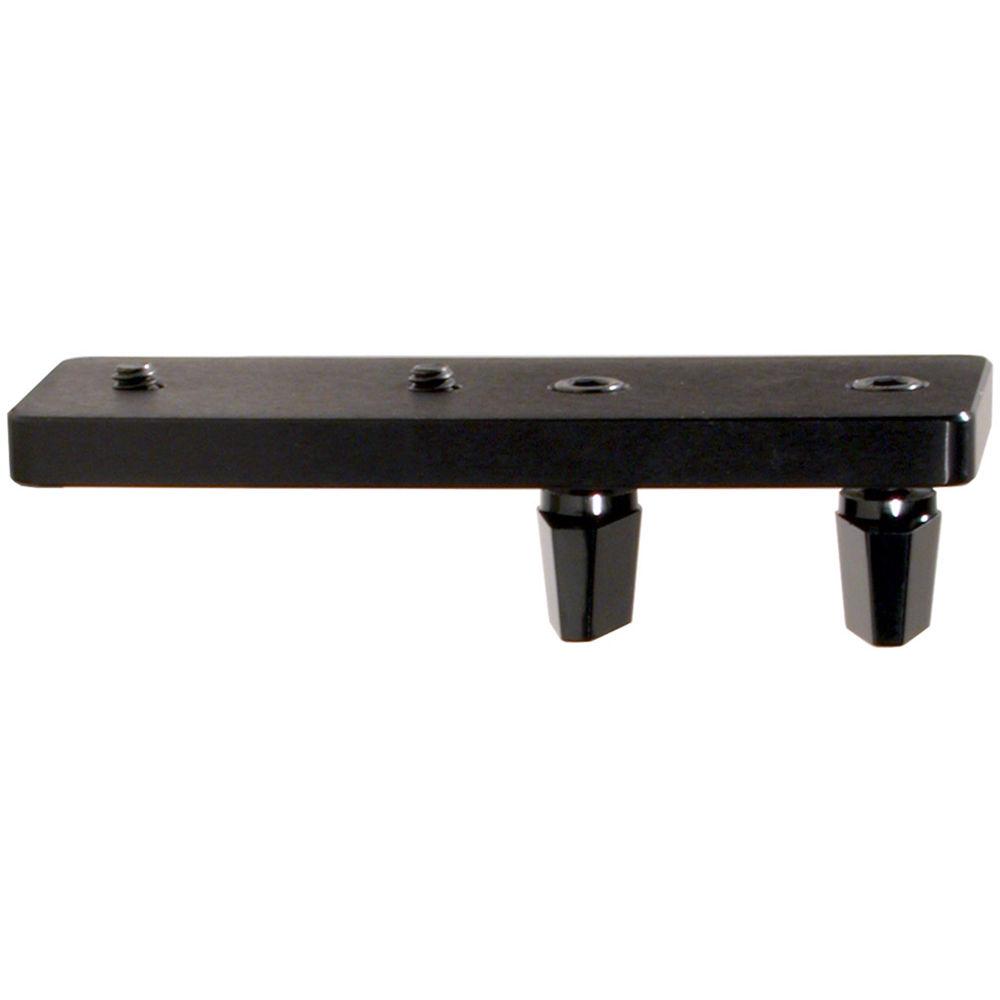

• Telescope Balance Aid Use the Tele Vue Telescope Balance Aid to properly balance lighter and shorter telescopes such as the TV-76 when using heavy eyepieces and accessories to relieve stress on the mount. The plate simply attaches to the mount ring with the provided screws and moves the balance point about 2.5" forward. Hardware is provided for attachment on Tele Vue Tele Pod-style mounts or on photo tripods.

• Limited Lifetime Warranty

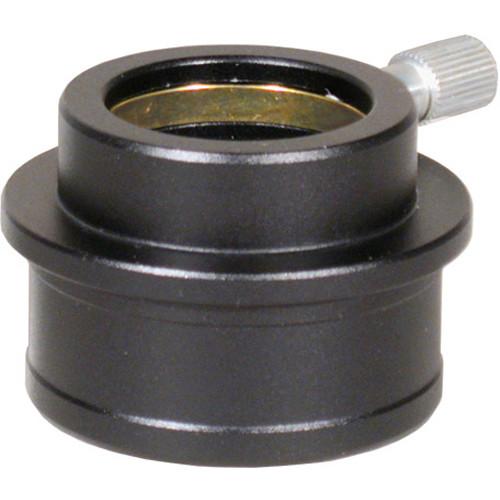

• 1.25" Reducer Adapter

• Limited 5-Year Warranty

• 5-Year Warranty Against Manufacturer Defects

• 5-Year Warranty Against Manufacturer Defects

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DeLite Series 18.2mm Eyepiece (1.25")

  Focal Length

  18.2mm

  Apparent Field of View

  62 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 87 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
