User Manual for Tele Vue Gibraltar HD4 Alt-Az Mount Click to enlarge the picture
Contents of the user manual for the Tele Vue Gibraltar HD4 Alt-Az Mount
- Product category: Mounts Tele Vue
- Brand: Tele Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tele Vue Mounts
|
User manual for the Tele Vue Gibraltar HD4 Alt-Az Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tele Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tele Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tele Vue product will considerably shorten its lifespan!
|

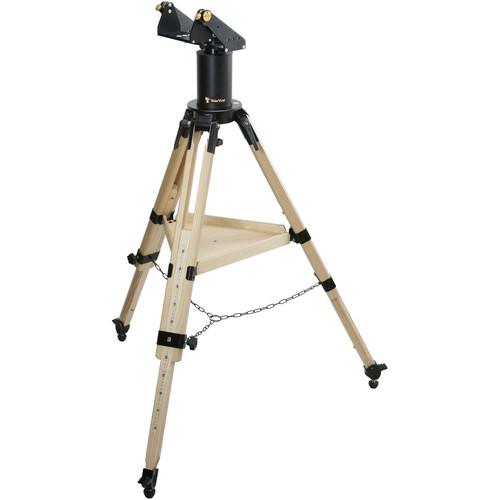

Product description Designed to provide a portable yet steady platform for refractor optical tube assemblies (OTAs) with apertures up to 4", Tele Vue's Gibraltar HD4 Alt-Az Mount features a Tele-Pod head and a custom-designed Berlebach ash wood tripod that has large bearing surfaces and thick legs that can handle heavier loads with greatly reduced vibration, especially when viewing at high power. The legs raise the altitude axis from 3.5 to 5 feet and markings on the legs allow for repeatable setting to preferred heights. A wood accessory tray ties the legs together for rigidity, and a built-in pier not only adds extra height to provide a more comfortable viewing position for the user, it allows the OTA to be aimed at or near the zenith without hitting the tripod. A bubble level is integrated into the tripod base and metal ground spikes with rubber tips are provided to give it added stability on soft ground. In the Box Tele Vue Gibraltar HD4 Alt-Az Mount Tele-Pod Alt-Az Yoke Mount (Head Only) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tele Vue Gibraltar HD4 Alt-Az Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTele Vue HD4 Specs | Mount Type | Manual alt-az | | Load Capacity | Not specified by manufacturer | | Motor | None | | GO-TO Capability | N/A | | Altitude Adjustment | +85 to -12° | | Polar Axis Scope | None | | Includes Tripod/Pier | Ash wood tripod
Adjustable height: 3.5 - 5.0' / 1.1 - 1.5 m
Weight: 20.5 lb / 9.3 kg | | Power Source | None | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 42.0 x 11.0 x 10.0" |
