User Manual for Tele Vue Gibraltar HD5 Alt-Az Mount with SkyTour Computer Click to enlarge the picture
Contents of the user manual for the Tele Vue Gibraltar HD5 Alt-Az Mount
- Product category: Mounts Tele Vue
- Brand: Tele Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tele Vue Mounts
|
User manual for the Tele Vue Gibraltar HD5 Alt-Az Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tele Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tele Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tele Vue product will considerably shorten its lifespan!
|

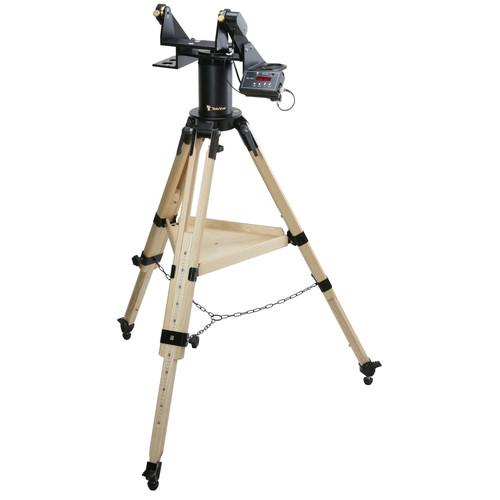

Product description With this kit, Tele Vue includes their Sky Tour Mount Computer with the Gibraltar HD5 Alt-Az Mount to provide a portable, steady platform and an accurate and versatile star computer for large-aperture refractor optical tube assemblies (OTAs) up to 5 inches. It features their Sky Tour mount computer, a Gibralter Head head, and a custom-designed Berlebach ash wood tripod that has large bearing surfaces and thick legs that can handle heavier loads with greatly reduced vibration, especially when viewing at high power.The Sky Tour gives you the ability to precisely align, aim, track, and find celestial objects with your mount. Using a simple 2-star alignment process to set up the controller, you will be able to choose the mode and use the information the controller gives you to manually move the scope to various objects, identify nearby objects that you see, or have it give you a tour of what is visible on any given night. While this is not a traditional "GoTo" system, the included encoder keeps precise track of the changing orientation of the scope to provide real-time updated coordinates. And if you know an object's location, it can be entered and the Sky Tour will tell you where to move the scope to find it.The tripod's legs raise the altitude axis from 3.5 to 5 feet and markings on the legs allow for repeatable setting to preferred heights. A wood accessory tray ties the legs together for rigidity, and a built-in pier not only adds extra height to provide a more comfortable viewing position for the user, it allows the OTA to be aimed at or near the zenith without hitting the tripod. A bubble level is integrated into the tripod base and metal ground spikes with rubber tips are provided to give it added stability on soft ground. - Sky Tour Mount Computer Tele Vue's Sky Tour Mount Computer gives you the ability to precisely align, aim, track, and find celestial objects with your alt-az, EQ, or fork mount. Using a simple 2-star alignment process to set up the controller, you will be able to choose the mode and use the information the controller gives you to manually move the scope to various objects, identify nearby objects that you see, or have it give you a tour of what is visible on any given night. While this is not a traditional "GoTo" system, if you get the optional encoder for your specific mount, it keeps precise track of the changing orientation of the scope to provide real-time updated coordinates. And if you know an object's location, it can be entered and the Sky Tour will tell you where to move the scope to find it. To expand its usability, the Sky Tour can interface with TheSky astronomy program from Software Bisque by connecting your TheSky-equipped pocket PC, Windows, or Apple computer to take advantage of the software's expanded database.
- Performance
-
- Encoder resolution: 2160 step, 0.167-degree/step (10-arcminute/step) encoders
- Sampling rate:0.5 millisecond
- Maximum slew rate: 160°/second
- Sidereal accuracy: 0.01%
- Display
-
- Red LED display
- 1-line, 10-character
- Five dimming levels
- Display resolution:
- Right ascension: 1 arcmin
- Declination: 0.1°
- Display modes:
- STAR FIX: Alignment mode using convenient star list
- RA DEC: Current right ascension and declination
- CATALOG: Complete database of celestial objects
- GUIDE: Shows direction and distance to object
- ALIGN: Uses full database to fine-tune alignment
- IDENTIFY: Identifies object by type
- Database
-
- 2000+ objects
- 110 Messier objects
- Selected NGC objects
- Selected IC objects
- Selected non-standard objects
- Selected stars: colored, double, multiple
- 31 alignment stars
- 8 planets
- 99 user-defined objects
- Gibraltar HD5 Alt-Az Mount Designed to provide a portable yet steady platform for refractor optical tube assemblies (OTAs) with apertures up to 5", Tele Vue's Gibraltar HD5 Alt-Az Mount features a Gibralter head and a custom-designed Berlebach ash wood tripod that has large bearing surfaces and thick legs that can handle heavier loads with greatly reduced vibration, especially when viewing at high power. The legs raise the altitude axis from 3.5 to 5 feet and markings on the legs allow for repeatable setting to preferred heights. A wood accessory tray ties the legs together for rigidity, and a built-in pier not only adds extra height to provide a more comfortable viewing position for the user, it allows the OTA to be aimed at or near the zenith without hitting the tripod. A bubble level is integrated into the tripod base and metal ground spikes with rubber tips are provided to give it added stability on soft ground.
In the Box Bundle Items Sky Tour Mount Computer Gibraltar HD5 Alt-Az Mount cudqebqtsaayabrdvueddvwzazbscurrfyvfva
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Tele Vue Gibraltar HD5 Alt-Az Mount with SkyTour Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sky Tour Mount Computer
| Display | One-line 10-Character red LED | | Resolution | RA: 1 arcminute
Dec: 0.1° | | Slew Rate | 160°/sec | | Database | 2000+ objects
110 Messier objects
Selected NGC objects
Selected IC objects
Selected Non-Standard objects
Selected Stars, colored, double, multiple
31 alignment stars
8 Planets
99 user-defined objects | | Battery | 9 VDC | | Dimensions | 2.8 x 4.6 x 1.1" / 7.1 x 11.7 x 2.8 cm | | Weight | 6 oz / 170 g, including battery | | | | Box Dimensions (LxWxH) | 9.1 x 7.5 x 5.7" | - Gibraltar HD5 Alt-Az Mount
| Mount Type | Manual alt-az | | Load Capacity | Not specified by manufacturer | | Motor | None | | GO-TO Capability | N/A | | Altitude Adjustment | +85 to -12° | | Polar Axis Scope | None | | Includes Tripod/Pier | Ash wood tripod
Adjustable height: 3.5 - 5.0' / 1.1 - 1.5 m
Weight: 22.9 lb / 10.4 kg | | Power Source | None | | Weight | Not specified by manufacturer |
