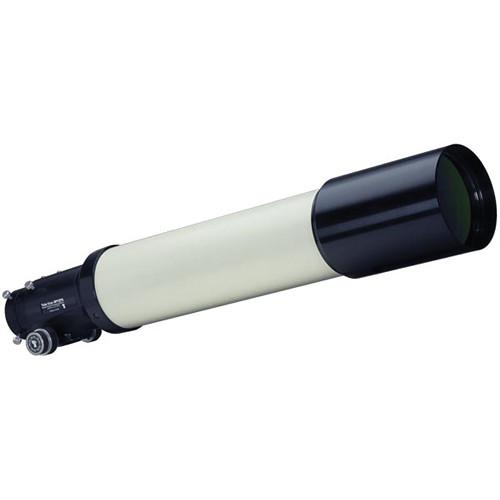

User Manual for Tele Vue NP127is 5" 127mm Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Tele Vue NP127is 5" 127mm Refractor
- Product category: Refractors Tele Vue
- Brand: Tele Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tele Vue Refractors
|
User manual for the Tele Vue NP127is 5" 127mm Refractor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tele Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tele Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tele Vue product will considerably shorten its lifespan!
|
Product description The Tele Vue-NP127is 5"/127mm Refractor Telescope from Tele Vue is a stellar leader in the field of high end imaging telescopes. Tele Vue's craftsmanship and optical excellence is legendary and this APO pushes the envelope of excellence. The Tele Vue-NP127is refractor offers a 660mm focal length with an f/5.2 in a precision crafted instrument designed for CCD astro-photography. The Nagler-Petzval design uses widely spaced doublets to produce a flat focal plane over a relatively narrow field of view. The "is" designation denotes an instrument capable of accepting Imaging Systems by offering a specific mechanical architecture for photography. The Tele Vue-NP127is is as optically, mechanically, and functionally near perfection as possible for imaging up to 50mm diagonal chips without detracting from the excellence of its visual capabilities. The APO Nagler-Petzval refractor telescope has been provisioned with a Focusmate dual-speed focuser possessing a larger draw tube with a 3" front aperture and 2.4" rear aperture. The rack and pinion focuser holds up to 12 lbs of weight while providing the extremely fine focusing control of a 10:1 dual speed pinion assembly. The draw tube allows quick transition from imaging to viewing. It has an imaging insert ring with four lock screws which is threaded to accept optical items, cameras and CCD attachments. The focuser itself is a planetary ball type reduction focuser with extremely sensitive focus adjustment better than 1/10,000". A sliding metal dew shield, screw-on metal lens cover and a hard-shell carrying case are part of the package. Dark sky watching and imaging doesn't get any more satisfying than this.The apochromatic refractor is the telescope design which produces the greatest breathtaking contrast and resolution, and Tele Vue doesn't skimp on the engineering. It won't deliver the light gathering capacity per dollar of Newtonian reflectors nor the portability of aperture of a Schmidt-Cassegrain. What it does deliver are views to be envied by both, with the darkest of background sky and the sharpest, widest fields imaginable. Combined with Tele Vue eyepieces, the experience cannot be bested by anything one would consider portable. - APO Nagler-Petzval refractor with 2 groups of 4 elements
- Hard-shell carrying case allows added protection with convenient and stylish transportation
- Sliding metal dew shield and screw-on metal lens cover add protection and shielding to the telescope
- Fully multicoated optics provide multiple layers on all air to glass surfaces for a brighter, higher-contrast image with less eyestrain
- Drawtube enlarged focuser with 3" entrance aperture and 2.4" exit aperture sports a Focusmate dual-speed 10:1 rack/pinion focuser. Focuser body has a brass clamp ring with 2-lock knobs
- Accessory end-ring with tilt capability and 4-lock knobs, an imaging insert threaded for Imaging Systems and a 2" accessory insert provide all the versatility needed for a comprehensive viewing or astro-photography configuration
In the Box Tele Vue NP127is 5"/127mm Refractor Telescope Hard-Shell Carry Case Sliding Metal Dew Shield Threaded Imaging Insert Screw-On Metal Lens Cover 2.4" Focusmate Dual-Speed Focuser 10:1 Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tele Vue NP127is 5" 127mm Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTele Vue NP127is Specs | | | Optical Design | Apochromatic Refractor | | Focal Length | 660 mm | | Focal Ratio | f/5.2 | | Resolution | 0.9 Arcsec | | Eyepiece Barrel Diameter | 2" | | Finderscope | No | | | | Weight | 15.4 lb / 7.0 kg (OTA) | | | | Package Weight | 34.0 lb | | Box Dimensions (LxWxH) | 40.0 x 13.0 x 13.0" |
