User Manual for Tele Vue Tele-Pod v2 Alt-Az Telescope Mount Click to enlarge the picture
Contents of the user manual for the Tele Vue Tele-Pod v2 Alt-Az Telescope
- Product category: Mounts Tele Vue
- Brand: Tele Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tele Vue Mounts
|
User manual for the Tele Vue Tele-Pod v2 Alt-Az Telescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tele Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tele Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tele Vue product will considerably shorten its lifespan!
|

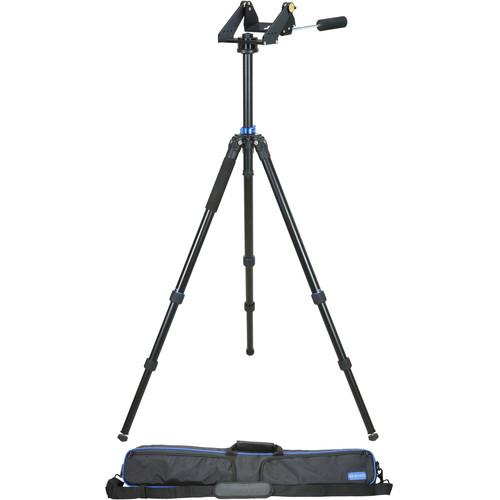

Product description Tele Vue's updated Tele-Pod v2 Alt-Az Telescope Mount gets an updated tripod while remaining the convenient, easy-to-use travel mount that is ideal for telescope optical tube assemblies (OTAs) up to about 3" (76mm) for astronomical use and 3.3" (85mm) for terrestrial. With this kit you get the Tele Pod manual alt-az yoke mount and its Advanced Aluminum Tripod. - Tele-Pod Alt-Az Yoke Mount (Head Only) Tele Vue designed their Tele-Pod Alt-Az Yoke Mount for smooth and balanced tracking for optical tube assemblies (OTAs) up to 3" in aperture. It is configured as a dual-fork yoke mount that cradles your OTA at its center of balance for smooth pan/tilt motion with reduced vibrations and smooth-motion altitude and azimuth bearings with tension adjustments. A single control handle enables precise control without the associated vibrations that normally come with moving a mount by hand.The unique design allows for the OTA to move through an 85 to -10° altitude range from below the horizon (such as viewing from a hilltop) all the way close to the zenith. A scope-stop helps to prevent damage if the objective end "nosedives" down. The Tele-Pod is offered here as a mount head only and comes equipped with 1/4"-20 and 3/8"-16 mounting treads for easy attachment to most photo, video, field, or astronomical tripods. Mounting holes on the azimuth plate are pre-drilled for 1/4"-20 and 3/8"-16 bolts for attaching OTAs.

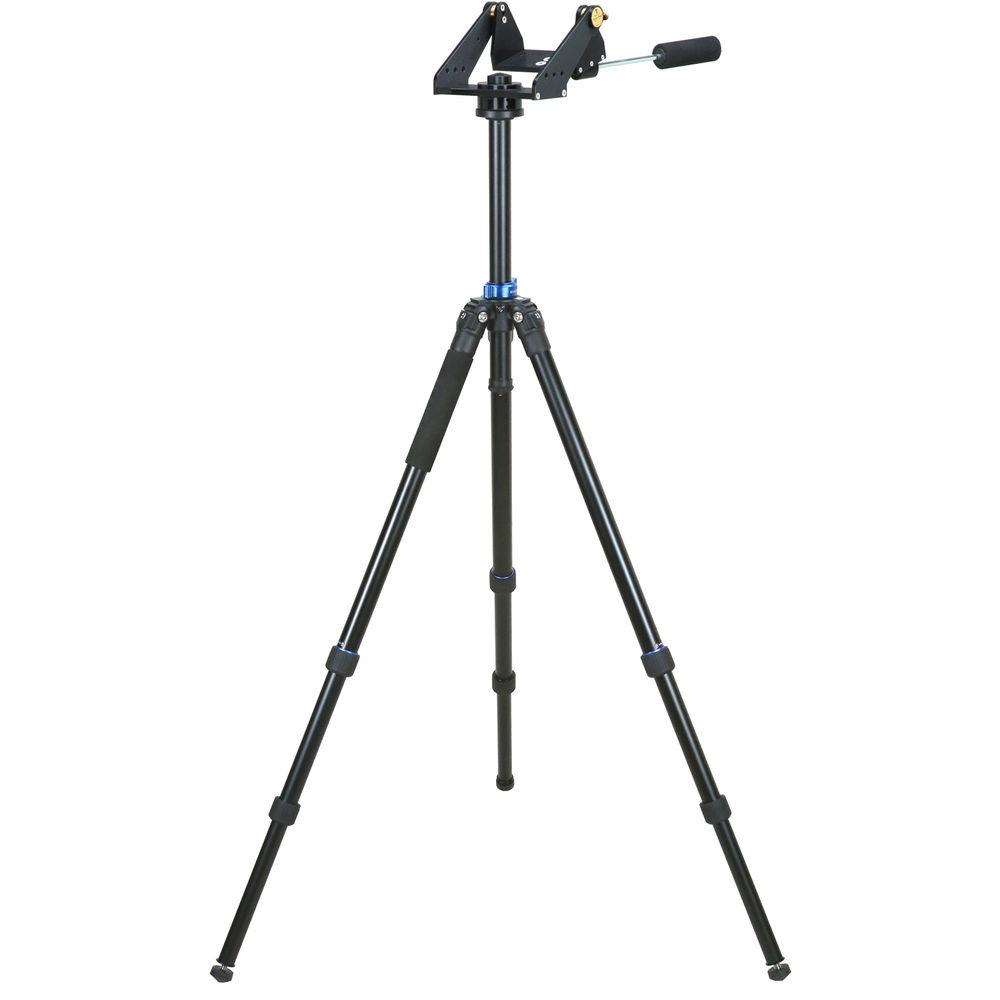

- Tele-Pod Advanced Aluminum Tripod Designed for their smaller alt-az mount head, but ideal for spotters, binoculars, and cameras of all sizes, the Tele Vue Tele-Pod Advanced Aluminum Tripod features an adjustable height from 29 to 60 inches, with an extendable center column to accommodate a variety of users, viewing positions, and optical designs. The base of the column features a weight hook for added stability, as needed. The three leg sections have a standard set angle for maximum stability, but can move out further with the leg angle lock disengaged for use in difficult terrain or unique situations. When used on smooth and flat surfaces, the rubber tipped feet ensure stability without slipping or sliding, and if it needs to be used on soft or uneven ground, the included spiked feet can be quickly installed for secure footing. An integrated bubble level allows you to precisely level the tripod for accurate alignment, and a reversible 3/8"-16 to 1/4"-20 mount makes it compatible with most heads, or other gear. For convenience, Tele Vue includes a soft nylon carrying bag with a zippered closure and shoulder strap.
In the Box Bundle Items Tele-Pod Alt-Az Yoke Mount (Head Only) buaereuaeyuetqxxwrfc - 2 x Studs (for scope attachment)
- 2 x Plastic Knurled Knobs
Tele-Pod Advanced Aluminum Tripod Table of Contents
|
Upload User Manual
Have you got an user manual for the Tele Vue Tele-Pod v2 Alt-Az Telescope Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Tele-Pod Alt-Az Yoke Mount (Head Only)
Mount Type | Manual alt-az | Load Capacity | Not specified by manufacturer | Motor | None | GO-TO Capability | None | Altitude / Latitude Adjustment | 85 to -10° | Polar Axis Scope | None | Includes Tripod/Pier | No | Power Source | None | Weight | 3.3 lb / 1.5 kg | | Box Dimensions (LxWxH) | 10.75 x 10.2 x 9.95" | - Tele-Pod Advanced Aluminum Tripod
Material of Construction | Aluminum legs | Leg Sections | 3 | Minimum Height | 29.0" / 73.7 cm | Maximum Height | 60.0" / 152.4 cm |
