User Manual for Tele Vue TV-76 76mm f 6 APO Doublet Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Tele Vue TV-76 76mm f 6
- Product category: Refractors Tele Vue
- Brand: Tele Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tele Vue Refractors
 |
User manual for the Tele Vue TV-76 76mm f 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tele Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tele Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tele Vue product will considerably shorten its lifespan!
|

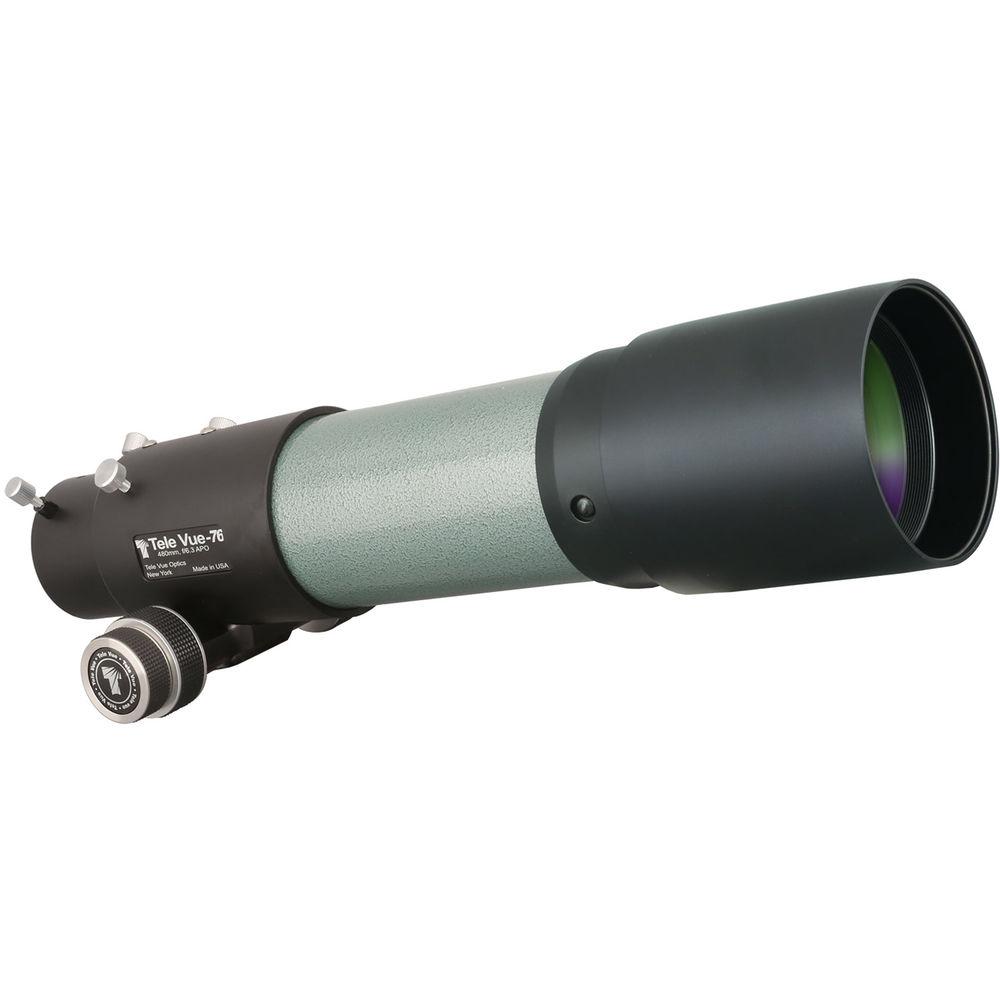

Product description Ideally suited for astronomy and astrophotography, the green Tele Vue TV-76 76mm f/6 APO Doublet Refractor Telescope is designed to be an easy grab-and-go option for celestial observing, or a lightweight spotting scope alternative for birdwatching and other terrestrial uses.It employs Japanese-made optical glass set in an apochromatic doublet lens configuration, designed to Al Nagler's exacting standards, to produce flat views with accurate color fidelity and improved contrast, without fringing or halos. Complementing the lens design, are broadband fully multi-coated optics that are specifically index matched to the lens glass to maximize light transmission across the entire visual spectrum and to ensure accurate color rendition, improved contrast, and clarity. A large 2" dual-speed focuser is used to bring lunar details, planetary features, or distant objects into tack-sharp resolution.Tele Vue offers this TV-76 stripped of accessories and without a mount or tripod for users who have their own equipment and support systems and who are looking to add a competent, yet portable, optical tube assembly to their kit, or for those who wish to build a completely custom rig. - Optical Tube Assembly
-
- Ideal for astronomy, astrophotography, and birdwatching/digiscoping
- 76mm aperture draws in light for observing the moon, planets, and bright deep sky objects such as stars and clusters, while remaining lightweight and portable
- Fast f/6 focal ratio makes it ideal for celestial observing and astrophotography
- 480mm focal length produces a moderate magnification potential while ensuring a short optical tube for easier handling and portability
- Nagler-designed 2-element apochromatic doublet lens configuration eliminates spherical aberrations that cause distortion at the edges of the field of view, and corrects chromatic aberration for accurate colors without fringing or halos
- Precision Japanese-made optical glass specifically chosen for its purity and high light transmission properties
- Index-matched broadband fully multi-coated to complement the optical glass and ensure maximum light transmission across the entire visual spectrum, to ensure accurate color fidelity and improved contrast and clarity
- Visual resolution: 1.5 arcsec, Dawes Limit
- Sliding metal dew shield helps to keep objective lens clear of condensation

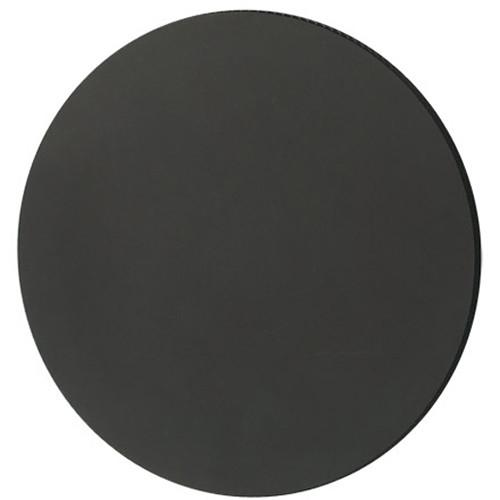

- Screw-on objective lens cover eliminates the possibility of cap coming off during transport and storage, ensuring lens remains protected when not in use
- Green powder-coated aluminum optical tube
- Focuser
-
- Sturdy and reliable rack-and-pinion design
- Dual-speed focuser enables fast coarse and precision fine focusing
- 10:1 reducer gear enables precise focusing for tack-sharp images during observation and imaging
- 2" drawtube allows the use of large eyepieces and accessories to be used
- Focuser tension knobs help to keep movement smooth depending on the weight of accessories used on it, while helping to minimize backlash
- Mounting
-
- Optical tube assembly only; mount and tripod required for proper use
- Optional cradle ring available for photo/video tripod use or to attach dovetail saddle
- Recommended for use with Tele Vue Tele-Pod, Panoramic, or Gibraltar HD4/5 mounts
- Compact design: 14.5" length, 5-pound weight

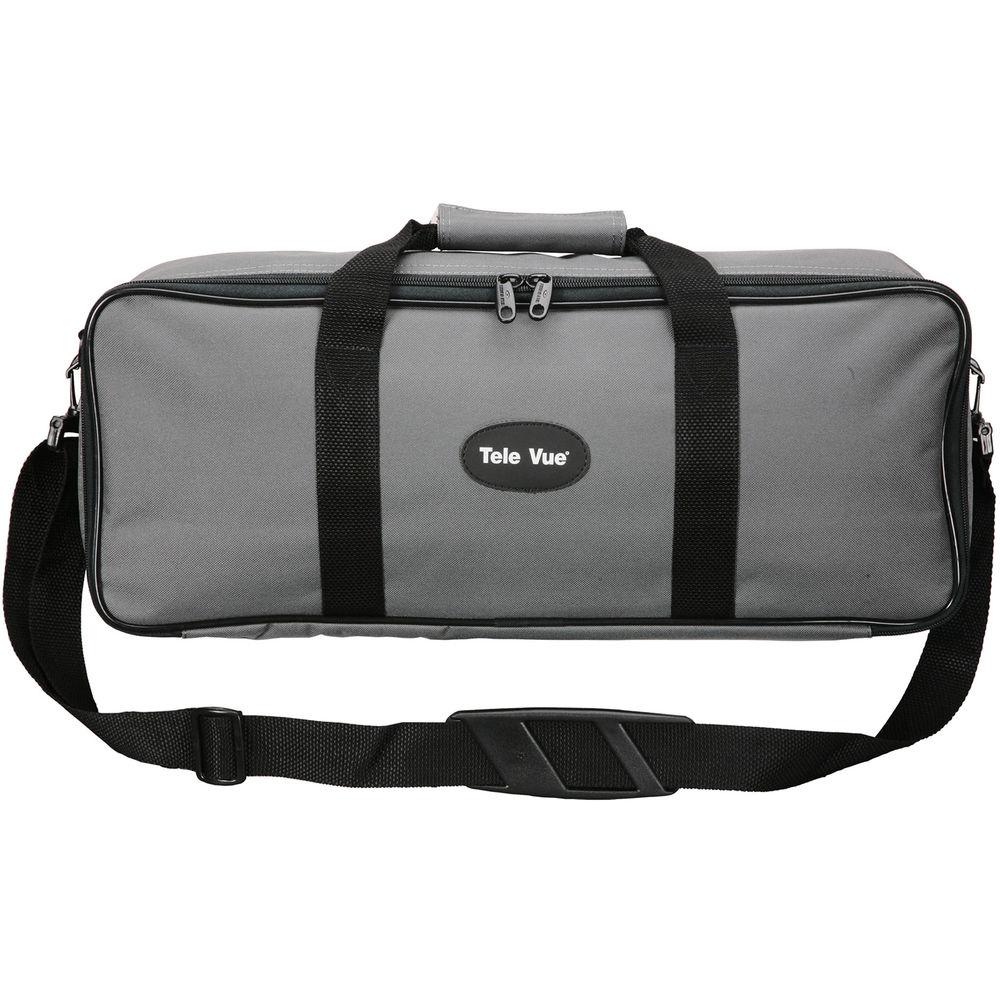

- Carrying Bag
-
- Custom-fitted case fits TV-76 only
- Dual hand-carry straps with padded palm closure
- Adjustable removable shoulder strap with pad
- Dual zippers on lid
- Foam cutouts for Starbeam, one 1.5"/2" eyepiece, and three 1.25" eyepieces
- Exterior dimensions (excluding handles and strap): 20 x 9 x 6"
- Empty weight: 28 ounces

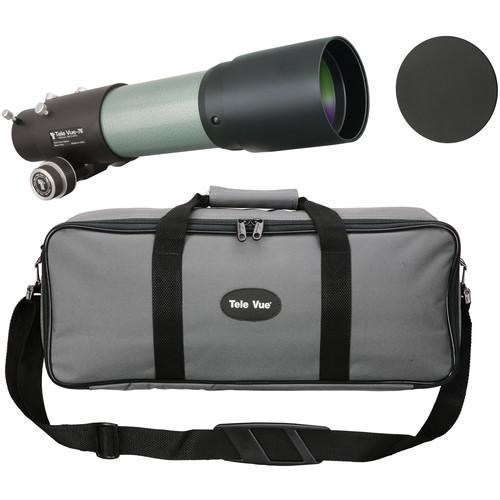

In the Box Tele Vue TV-76 76mm f/6 APO Doublet Refractor Telescope (Green, OTA Only) Objective Lens Cover Soft Carry Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tele Vue TV-76 76mm f 6 APO Doublet Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTele Vue TV-76 Specs | Optical Design | Doublet Refractor | | Aperture | 76mm | | Focal Length | 480mm | | Focal Ratio | f/6.3 | | Eyepiece Barrel Diameter | 2" | | Diagonal | None | | Finderscope | None | | Tripod | None | | Mount Type | None | | Power Source | None | | Optical Tube Length | 14.5" / 36.8 cm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 25.0 x 11.7 x 8.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
