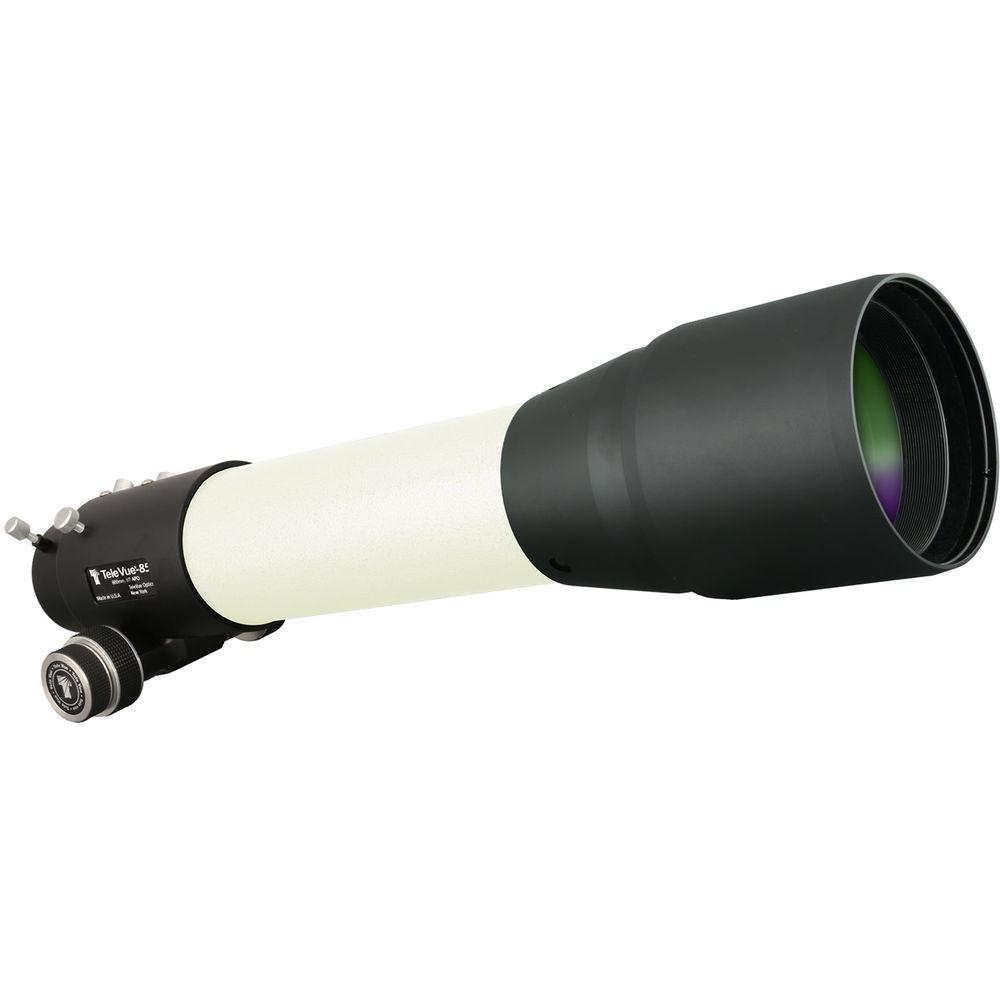

Product description Ideally suited for astronomy and astrophotography, the ivory Tele Vue TV-85 85mm f/7 APO Doublet Refractor Telescope is designed to be an easy grab-and-go option for celestial observing, or a lightweight spotting scope alternative for birdwatching and other terrestrial uses.It employs Japanese-made optical glass set in an apochromatic doublet lens configuration to produce flat views with accurate color fidelity and improved contrast, without fringing or halos. Complementing the lens design, are broadband fully multi-coated optics that are specifically index matched to the lens glass to maximize light transmission across the visual spectrum and to ensure accurate color rendition, improved contrast, and clarity. A large 2" dual-speed focuser is used, to bring lunar details, planetary features, or distant objects into tack-sharp resolution.Tele Vue offers this TV-85 stripped of accessories and without a mount or tripod for users who have their own equipment and support systems and who are looking to add a competent, yet portable, optical tube assembly to their kit, or for those who wish to build a completely custom rig. - Optical Tube Assembly
-
- Ideal for astronomy, astrophotography, and birdwatching/digiscoping
- 85mm aperture draws in light for observing the moon, planets, and bright deep sky objects while remaining lightweight and portable
- Fast f/7 focal ratio makes it ideal for celestial observing and astrophotography
- 600mm focal length produces a moderate magnification potential while ensuring a shorter optical tube for easier handling and portability
- Apochromatic doublet lens configuration eliminates spherical aberrations that cause distortion at the edges of the field of view, and corrects chromatic aberration for accurate colors without fringing or halos
- Precision Japanese-made optical glass specifically chosen for its purity and high light transmission properties
- Index-matched broadband fully multi-coated to complement the optical glass and ensure maximum light transmission across the entire visual spectrum, to ensure accurate color fidelity and improved contrast and clarity
- Visual resolution: 1.4 arc sec, Dawes Limit
- Sliding metal dew shield helps to keep objective lens clear of condensation

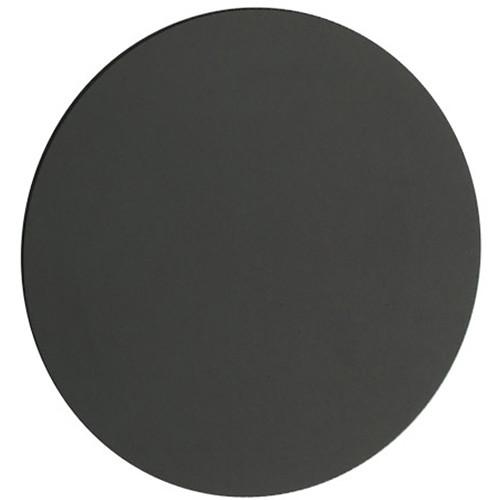

- Screw-on objective lens cover eliminates the possibility of cap coming off during transport and storage, ensuring lens remains protected when not in use
- Ivory powder-coated aluminum optical tube
- Mounting
-
- Optical tube assembly only; mount and tripod required for proper use
- Optional cradle ring available for photo/video tripod use or to attach dovetail saddle
- Recommended for use with Tele Vue Tele-Pod, Panoramic, or Gibraltar HD4/5 mounts
- Compact design: 19" length, 6-pound weight
- Focuser
-
- Sturdy and reliable rack-and-pinion design
- Dual-speed focuser enables fast coarse and precision fine focusing
- 10:1 reducer gear enables precise focusing for tack-sharp images during observation and imaging
- 2" drawtube allows the use of large eyepieces and accessories to be used
- Focuser tension knobs help to keep movement smooth depending on the weight of accessories used on it, while helping to minimize backlash

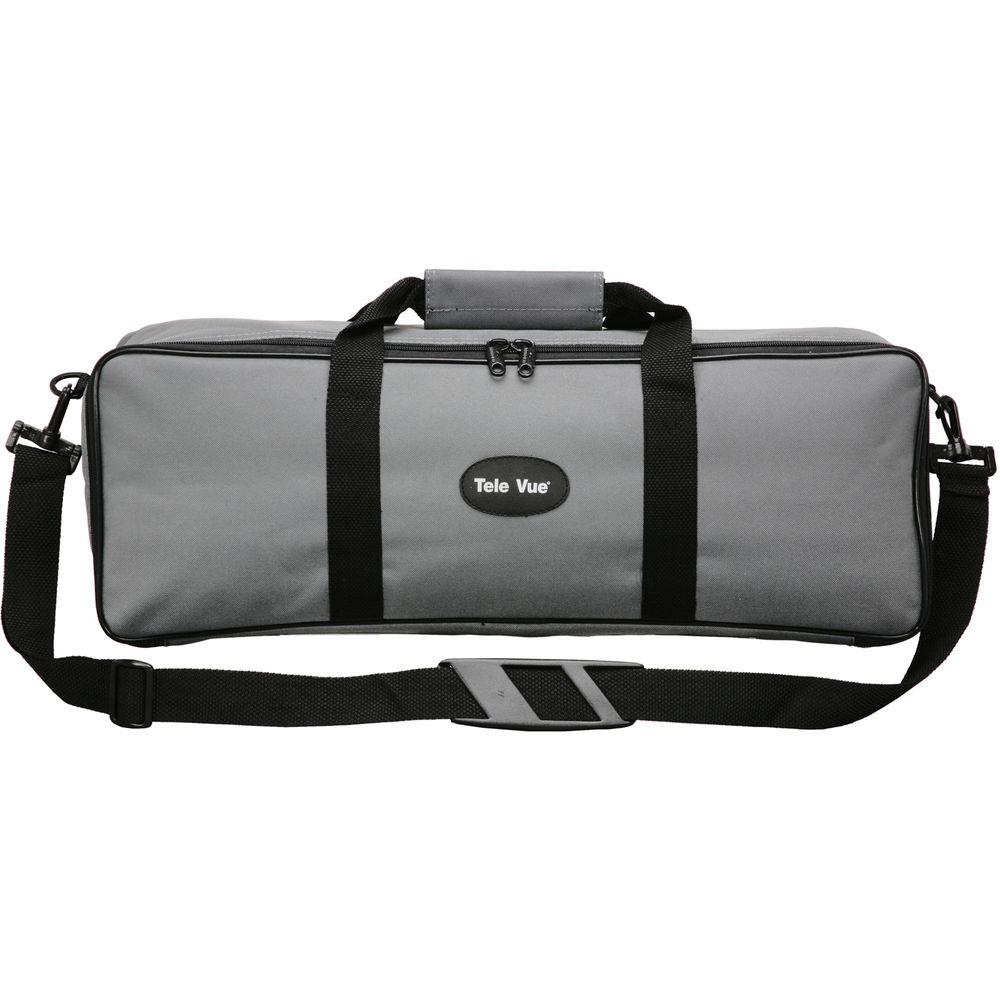

- Carrying Bag
-
- Custom-fitted case fits TV-85 only
- Dual hand-carry straps with padded palm closure
- Adjustable shoulder strap with pad
- Dual zippers on lid
- Foam cutouts for Starbeam, one 2" eyepiece, and five 1.25" eyepieces
- Exterior dimensions (excluding handles and strap): 23.5 x 9 x 5.5"
- Empty weight: 1.9 pounds
In the Box Tele Vue TV-85 85mm f/7 APO Doublet Refractor Telescope (Ivory, OTA Only) Objective Lens Cover Soft Carry Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tele Vue TV-85 85mm f 7 APO Doublet Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTele Vue TV-85 Specs | Optical Design | Doublet Refractor | | Aperture | 85mm | | Focal Length | 600mm | | Focal Ratio | f/7 | | Eyepiece Barrel Diameter | 2" | | Diagonal | None | | Finderscope | None | | Tripod | None | | Mount Type | None | | Power Source | None | | Optical Tube Length | 19" / 48.3 cm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 11.15 lb | | Box Dimensions (LxWxH) | 26.6 x 10.9 x 8.6" |
