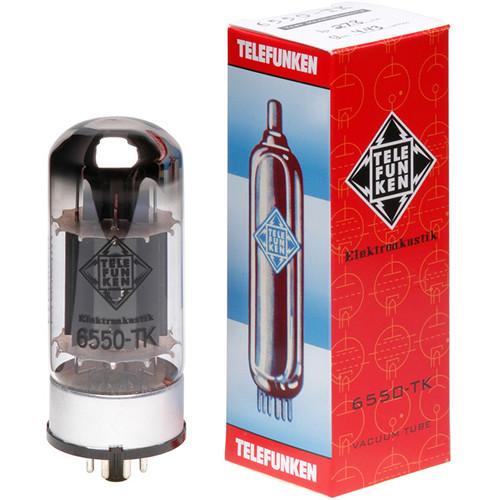

Product description This matched pair of Telefunken 6550-TK Black Diamond Series Vacuum Tubes is ideal for use in Leslie cabinets and guitar, bass, and keyboard amplifiers in homes, studios, and live stage applications. For personal enjoyment, live performance, or commercial recording, they grant the essence of a 6L6 with increased gain and enhanced stability. In a slightly larger footprint than a 6L6, each beam pentode (or power tetrode) tube delivers up to 35W of output power and extended longevity. - Ideal for use in Leslie cabinets as well as guitar and bass amplifiers
- Design based on the 6L6, but with more gain and enhanced stability
- Inspired by the classic 6550, which was developed by Tung-Sol in 1955
- Delivers up to 35W at the tube output
- Extended longevity means fewer tube changes over the years
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and remeasured before final packing
Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken 6550-TK Black Diamond Series Vacuum Tubes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken MATCHED PAIR OF 6550-TK Specs | | | Type | A.F. beam pentode | | Base | Octal | | Number of Pins | 7 | | | | Voltage | 6.3 V | | Current | 1.6 A | | | | Capacitance | Grid #1 to All Except Plate: 14 pF
Plate to All Except Grid #1: 12 pF
Plate to Grid #1: 0.85 pF | | | | Voltage | Plate Voltage: 600 V
Grid #2 Voltage: 400 V
Grid #1 Voltage (negative bias value): -300 V
Grid #1 Voltage (positive bias value): 0 V | | Current | Cathode Current: 175 mA | | Dissipation | Plate Dissipation: 35 W
Grid #2 Dissipation: 6 W | | | | Voltage | Plate Voltage: 250 V
Grid #2 Voltage: 250 V
Grid #1 Voltage: -14 V | | Current | Plate Current: 140 mA
Grid #2 Current: 12 mA | | Transconductance | 11.8 mA/V | | Resistance | Internal Plate Resistance: 16 kOhms | | | | Dimensions (H x Diam.) | 4.33 x 1.69" / 110 x 43 mm (excluding pins)
4.92 x 1.69" / 125 x 43 mm (including pins) | | Weight | 3 oz / 85 g |
