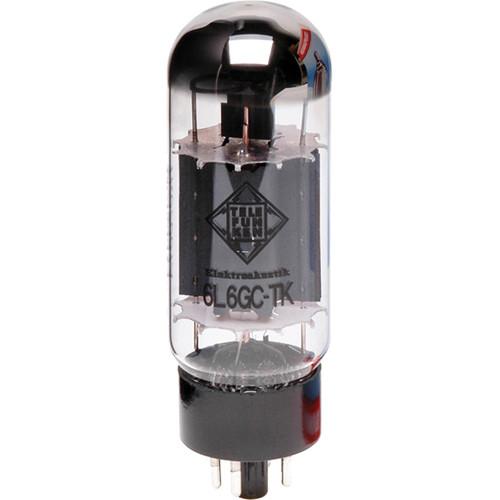

User Manual for Telefunken 6L6GC-TK Black Diamond Series Vacuum Tube Click to enlarge the picture
Contents of the user manual for the Telefunken 6L6GC-TK Black Diamond Series Vacuum
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken 6L6GC-TK Black Diamond Series Vacuum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description The Telefunken 6L6GC-TK Black Diamond Series Vacuum Tube is ideal for use in guitar and bass amplifiers and hi-fi equipment in homes, studios, and live stage applications. For personal enjoyment, live performance, or commercial recording, it grants a clear midrange and sparkly highs. Slightly larger than an EL34, this 6L6GC octal power tube delivers bite, definition, and plenty of headroom. - Inspired by the 6L6, which was developed by RCA in 1936 as the first power tetrode
- Strongly associated with the sound of American amplifiers
- Great for instrument amplifiers and hi-fi equipment
- Tight and defined lows, transparent midrange, and shimmering highs
- Focused bite with defined articulation
- In comparison to the EL34 and EL84, the 6L6GC is characterized by higher headroom before breaking up
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and remeasured before final packing
UPC: 899051002534 Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken 6L6GC-TK Black Diamond Series Vacuum Tube in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken 6L6GC-TK Specs | | | Type | A.F. beam pentode | | Base | Octal | | Number of Pins | 6 | | | | Voltage | 6.3 V | | Current | 0.9 A | | | | Capacitance | Grid #1 to All Except Plate: 12.5 pF
Plate to All Except Grid #1: 10 pF
Plate to Grid #1: 1.5 pF | | | | Voltage | Plate Voltage (Pentode Connection): 500 V
Plate Voltage (Triode Connection): 450 V
Grid #2 Voltage (Pentode Connection): 450 V
Grid #2 Voltage (Triode Connection): 450 V | | Dissipation | Plate Dissipation (Pentode Connection): 30 W
Plate Dissipation (Triode Connection): 30 W | | Resistance | Grid #1 Circuit Resistance (Fixed Bias, Pentode Connection): 0.1 MOhms
Grid #1 Circuit Resistance (Fixed Bias, Triode Connection): 0.1 MOhms
Grid #1 Circuit Resistance (Self Bias, Pentode Connection): 0.5 MOhms
Grid #1 Circuit Resistance (Self Bias, Triode Connection): 0.5 MOhms | | | | Voltage | Plate Voltage (Pentode Connection): 250 V
Plate Voltage (Triode Connection): 270 V
Grid #2 Voltage (Pentode Connection): 250 V
Grid #2 Voltage (Triode Connection): 270 V
Grid #1 Voltage (Pentode Connection): -14 V
Grid #1 Voltage (Triode Connection): -17.5 V | | Current | Plate Current (Pentode Connection): 72 mA
Plate Current (Triode Connection): 134 mA
Grid #2 Current (Pentode Connection): 5 mA
Grid #2 Current (Triode Connection): 11 mA | | Resistance | Internal Plate Resistance (Pentode Connection): 22.5 kOhms
Effective Load Resistance (Plate to Plate, Triode Connection): 5 kOhms | | Maximum Signal Power Output | Pentode Connection: 6.5 W
Triode Connection: 17.5 W | | | | Dimensions (H x Diam.) | 3.94 x 1.50" / 100 x 38 mm (excluding pins)
4.53 x 1.50" / 115 x 38 mm (including pins) | | Weight | 1.8 oz / 51 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 5.1 x 1.8 x 1.6" |
