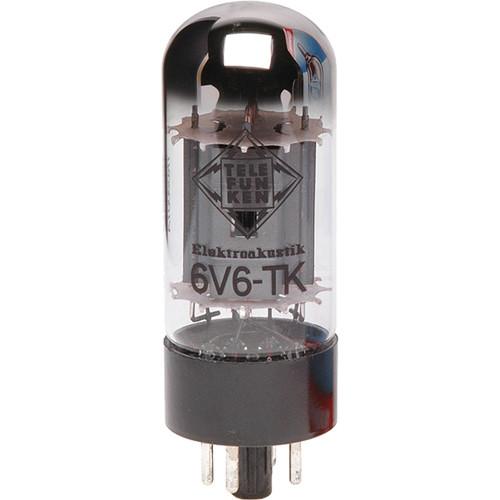

User Manual for Telefunken 6V6-TK Black Diamond Series Vacuum Tube Click to enlarge the picture
Contents of the user manual for the Telefunken 6V6-TK Black Diamond Series Vacuum
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken 6V6-TK Black Diamond Series Vacuum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description The Telefunken 6V6-TK Black Diamond Series Vacuum Tube is ideal for use in guitar amplifiers and hi-fi equipment in homes, studios, and live stage applications. For personal enjoyment, live performance, or commercial recording, it grants a strong tone and commendable headroom. Designed as a direct replacement for a stock 6V6, this 6V6-TK beam-power tetrode tube delivers true-to-original tonal characteristics. Its low power output makes it well suited for use in small combo amps and low-wattage heads. - Newly manufactured and cryogenically treated rendition of the legendary 6V6
- Inspired by the 6V6, which was developed by RCA in 1937
- Beam-power tetrode vacuum tube popular in low-wattage amp heads and combo amplifiers
- Robust tone and great overhead
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and remeasured before final packing
UPC: 858513005018 Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken 6V6-TK Black Diamond Series Vacuum Tube in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken 6V6-TK V Specs | | | Type | A.F. beam pentode | | Base | Octal | | Number of Pins | 6 | | | | Voltage | 6.3 V | | Current | 0.5 A | | | | Capacitance | Grid #1 to All Except Plate: 9 pF
Plate to All Except Grid #1: 8.5 pF
Plate to Grid #1: 0.7 pF | | | | Voltage | Plate Voltage (Pentode Connection): 500 V
Plate Voltage (Triode Connection): 450 V
Grid #2 Voltage (Pentode Connection): 450 V
Grid #2 Voltage (Triode Connection): 450 V | | Dissipation | Plate Dissipation (Pentode Connection): 14 W
Plate Dissipation (Triode Connection): 10 W | | Resistance | Grid #1 Circuit Resistance, Fixed Bias (Pentode Connection): 0.1 MOhms
Grid #1 Circuit Resistance, Fixed Bias (Triode Connection): 0.1 MOhms
Grid #1 Circuit Resistance, Self Bias (Pentode Connection): 0.5 MOhms
Grid #1 Circuit Resistance, Self Bias (Triode Connection): 0.5 MOhms | | | | Voltage | Plate Voltage (Pentode): 250 V
Plate Voltage (Push-Pull): 250 V
Grid #2 Voltage (Pentode): 250 V
Grid #2 Voltage (Push-Pull): 250 V
Grid #1 Voltage (Pentode): -12.5 V
Grid #1 Voltage (Push-Pull): -15 V | | Current | Plate Current (Pentode): 45 mA
Plate Current (Push-Pull): 70 mA
Grid #2 Current (Pentode): 5 mA
Grid #2 Current (Push-Pull): 13 mA | | Resistance | Internal Plate Resistance (Pentode): 50 kOhms, approximate
Effective Load Resistance, Plate to Plate (Push-Pull): 10 kOhms | | Power Output | Maximum Signal Power Output (Pentode): 4.5 W
Maximum Signal Power Output (Push-Pull): 10 W | | | | Dimensions (H x Diam.) | 3.11 x 1.31" / 79.0 x 33.3 mm (excluding pins)
3.66 x 1.31" / 93.0 x 33.3 mm (including pins) | | Weight | 1.8 oz / 51 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.1 x 1.7 x 1.5" |
