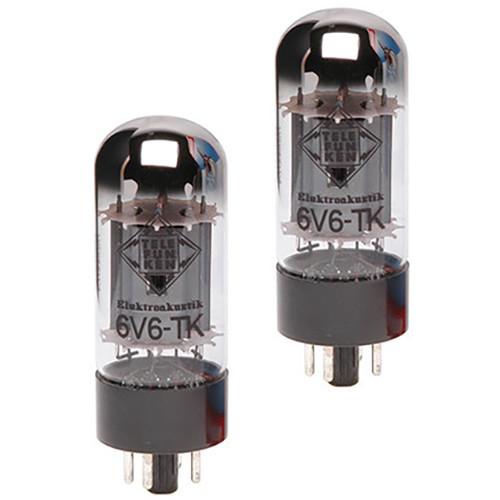

Product description This matched pair of Telefunken 6V6-TK Black Diamond Series Vacuum Tubes is ideal for use in guitar amplifiers and hi-fi equipment in homes, studios, and live stage applications. For personal enjoyment, live performance, or commercial recording, they grant a strong tone and commendable headroom. Designed as a direct replacement for a stock 6V6, each 6V6-TK beam-power tetrode tube delivers true-to-original tonal characteristics. Its low power output makes it well suited for use in small combo amps and low-wattage heads. - Newly manufactured and cryogenically treated rendition of the legendary 6V6
- Inspired by the 6V6, which was developed by RCA in 1937
- Beam-power tetrode vacuum tube popular in low-wattage amp heads and combo amplifiers
- Robust tone and great overhead
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and remeasured before final packing
Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken 6V6-TK Black Diamond Series Vacuum Tubes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken MATCHED PAIR OF 6V6-TK Specs | | | Type | A.F. beam pentode | | Base | Octal | | Number of Pins | 6 | | | | Voltage | 6.3 V | | Current | 0.5 A | | | | Capacitance | Grid #1 to All Except Plate: 9 pF
Plate to All Except Grid #1: 8.5 pF
Plate to Grid #1: 0.7 pF | | | | Voltage | Plate Voltage (Pentode Connection): 500 V
Plate Voltage (Triode Connection): 450 V
Grid #2 Voltage (Pentode Connection): 450 V
Grid #2 Voltage (Triode Connection): 450 V | | Dissipation | Plate Dissipation (Pentode Connection): 14 W
Plate Dissipation (Triode Connection): 10 W | | Resistance | Grid #1 Circuit Resistance, Fixed Bias (Pentode Connection): 0.1 MOhms
Grid #1 Circuit Resistance, Fixed Bias (Triode Connection): 0.1 MOhms
Grid #1 Circuit Resistance, Self Bias (Pentode Connection): 0.5 MOhms
Grid #1 Circuit Resistance, Self Bias (Triode Connection): 0.5 MOhms | | | | Voltage | Plate Voltage (Pentode): 250 V
Plate Voltage (Push-Pull): 250 V
Grid #2 Voltage (Pentode): 250 V
Grid #2 Voltage (Push-Pull): 250 V
Grid #1 Voltage (Pentode): -12.5 V
Grid #1 Voltage (Push-Pull): -15 V | | Current | Plate Current (Pentode): 45 mA
Plate Current (Push-Pull): 70 mA
Grid #2 Current (Pentode): 5 mA
Grid #2 Current (Push-Pull): 13 mA | | Resistance | Internal Plate Resistance (Pentode): 50 kOhms, approximate
Effective Load Resistance, Plate to Plate (Push-Pull): 10 kOhms | | Power Output | Maximum Signal Power Output (Pentode): 4.5 W
Maximum Signal Power Output (Push-Pull): 10 W | | | | Dimensions (H x Diam.) | 3.11 x 1.31" / 79.0 x 33.3 mm (excluding pins)
3.66 x 1.31" / 93.0 x 33.3 mm (including pins) | | Weight | 1.8 oz / 51 g | | | | Package Weight | 0.53 lb | | Box Dimensions (LxWxH) | 5.2 x 3.4 x 1.6" |
