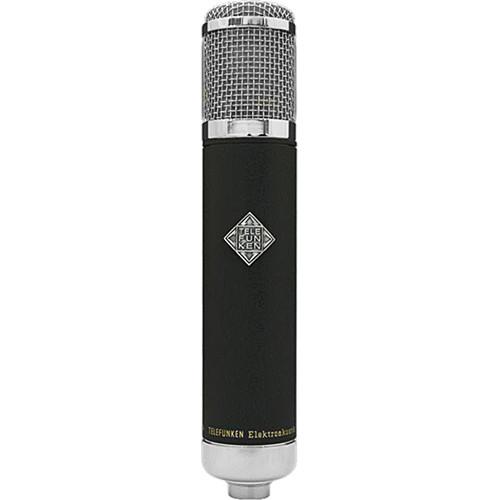

User Manual for Telefunken AK-47 MKII Tube Microphone Click to enlarge the picture
Contents of the user manual for the Telefunken AK-47 MKII Tube Microphone
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken AK-47 MKII Tube Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description - Mic Roundup Part 1: Mics Inspired by the Neumann U47 and AKG C12
The AK-47 MKII Tube Microphone from Telefunken is a part of their acclaimed R-F-T series. The microphone features a large diaphragm condenser element and a custom output transformer that borrows from the historic BV8 transformer found in the vintage U-47 and U-48 microphones. The AK-47 MKII's tube stage features an NOS Telefunken EF-732 vacuum tube, delivering pristine audio fidelity, low noise and vintage analog warmth. The AK-47 MKII features omnidirectional, cardioid, and figure 8 polar patterns with 6 intermediate stages for each pattern. - Utilizes American-designed electronics in conjunction with new old-stock tubes and standardized parts
- Features a new proprietary circuit designed around a NOS Telefunken EF-732 tube and a custom output transformer that is an exact replica of the historic BV8 transformer, found in the historic U-47 and U-48 microphones
- The Telefunken EF-732 tube is very similar to the AC-701 tube in that it provides a "velvety" character to the overall tone of the microphone
- Remarkably hi-fidelity microphone with a "present" but not "harsh" character
UPC: 899051002015 In the Box Telefunken AK-47 MKII Tube Microphone Modern Power Supply Shockmount Wooden Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken AK-47 MKII Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken AK-47 MKII Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 10.5 dB A-Weighted | | Maximum SPL | 125 dB SPL | | THD | < 0.3% | | Impedance | 200 Ohms | | Sensitivity | 16.5 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR
1 x 7-Pin XLR | | Operating Current Consumption | 135 mA | | Length | 9.49" / 241 mm | | Diameter | 1.75" / 44.45 mm | | Weight | 26.98 oz / 765 g | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 19.4 x 11.9 x 5.7" |
