User Manual for Telefunken AR-51 Multi-Pattern Tube Condenser Microphone with Flight Case Click to enlarge the picture
Contents of the user manual for the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
 |
User manual for the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

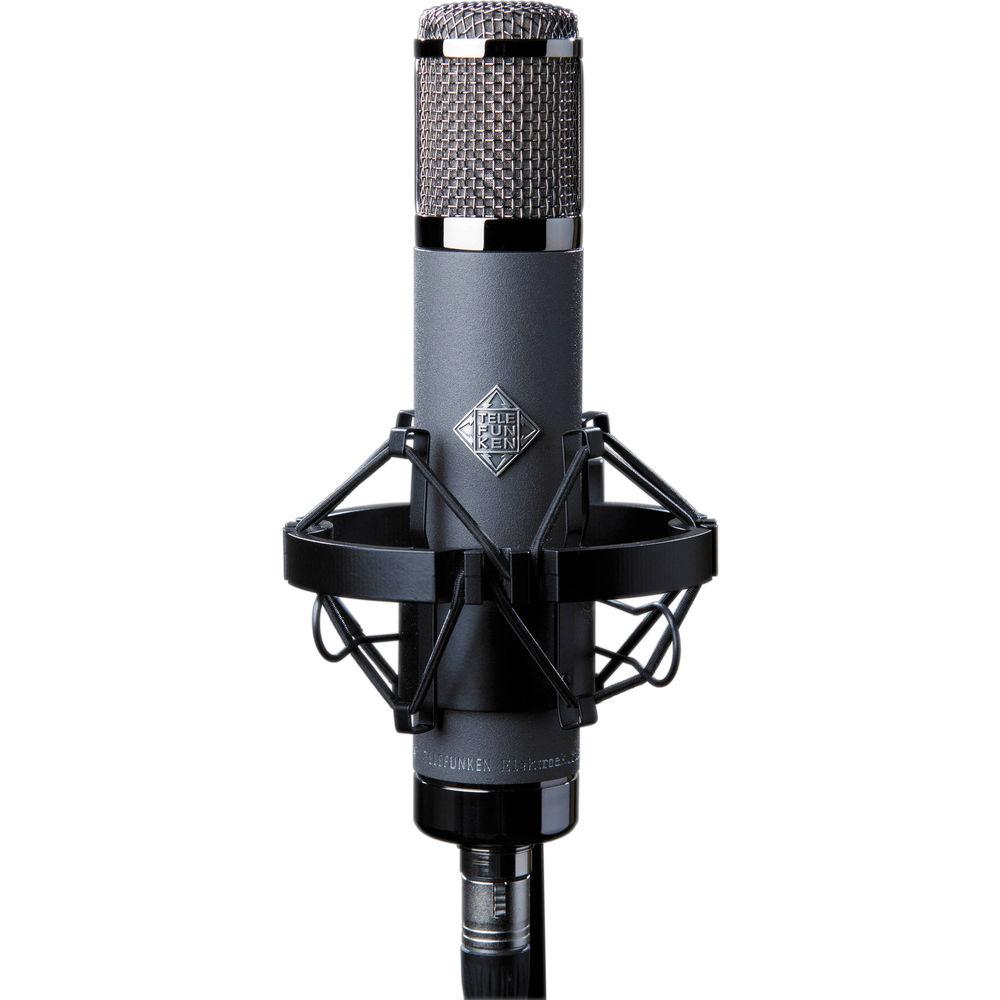

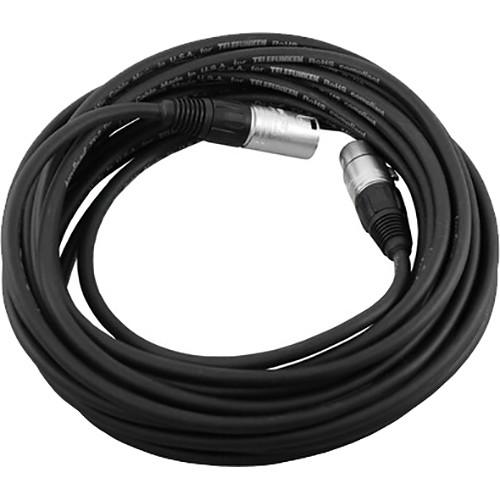

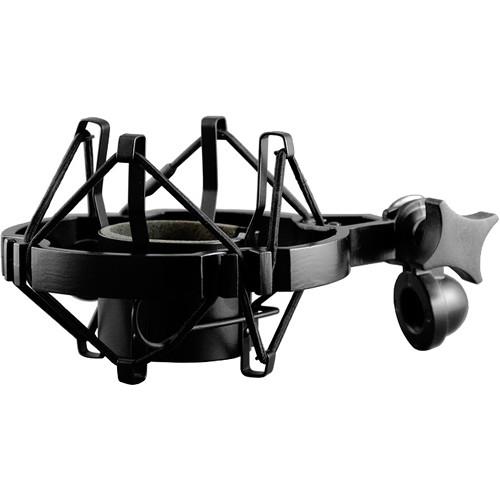

Product description The Telefunken AR-51 Multi-Pattern Tube Condenser Microphone with Flight Case is an R-F-T Series large-diaphragm, multi-pattern tube condenser mic with a hardshell flight case designed to deliver versatility and full-range frequency reproduction of vocals and instruments for musicians, recordists, and audio engineers in home, project, and commercial recording studios. It features a dual-membrane, edge-terminated capsule with nine polar patterns—omnidirectional, cardioid, figure-8, and six intermediate options. An NOS ECC81 twin-triode vacuum tube and Haufe T14/1 output transformer contribute to the AR-51's tone, which draws inspiration from the classic C12 and ELA M 251E microphones. Its 20 Hz to 20 kHz frequency response and maximum SPL of 128 dB enable it to handle anything from soft vocals and delicate piano to pounding drums.The AR-51, its external power supply, proprietary 7-pin cable, and shockmount fit securely in the high-density foam interior of the rugged flight case, which is lockable, airtight, and waterproof up to a 3' depth. An automatic pressure equalization valve in the case ensures proper pressure at a variety of altitudes. - AR-51 Multi-Pattern Tube Condenser Microphone The AR-51 Multi-Pattern Tube Condenser Microphone from Telefunken provides a smooth mid-range, open top end, and a well-balanced low-frequency translation that make it a great choice on anything from vocals to drums to acoustic guitar and even saxophone.
The AR-51 features the TK51D capsule, a 34mm dual-membrane, edge-terminated design. This larger surface area provides an extended low end and a smoother, more open high end. This capsule brings the AR-51 sonically closer to the revered sound of the edge-terminated CK12 capsule. Additionally, the AR-51 takes the amplifier electronics of the C12 and ELA M 251E microphones. The core of this amplifier is a NOS ECC81 vacuum tube, which is coupled with the same German-built output transformer as the C12 and the ELA M 251E.

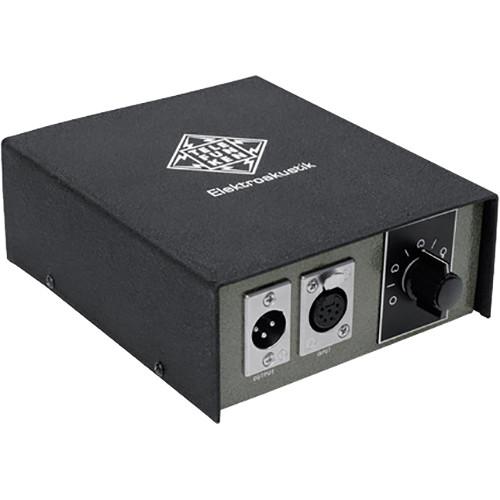

The remote pattern selector, located on the power supply, provides 9 different polar patterns, giving the user a myriad of choices for how to record the source sound in a manner that will best complement their production. - Quality Beyond Its Price Point
- The AR-51 incorporates a similar capsule design and the same amplifier as the more expensive C12 and ELA M 251E microphones.

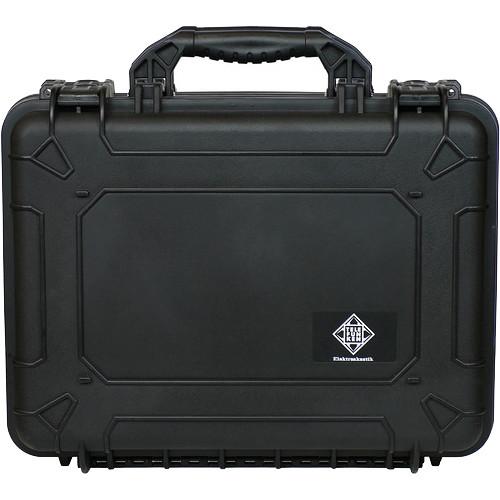

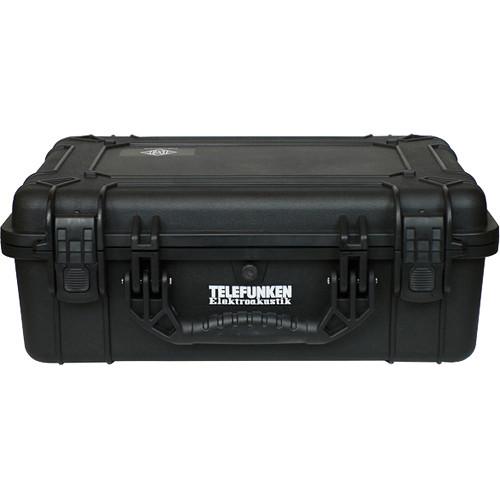

UPC: 899051002022 - Hardshell Flight Case for AR-51, AK-47 MkII, and M16 MkII Microphone Systems The Telefunken HC01 is a hardshell flight case designed to safely house a single AR-51, AK-47 MkII, or M16 MkII microphone system for audio engineers, vocalists, and musicians in studios and traveling from gig to gig. Being airtight and waterproof, it keeps moisture and dust from entering. Its hard plastic exterior and high-density foam interior protect your mic system components from dents, scratches, and shock.Air pressure regulation via an automatic pressure equalization valve ensures damage-free elevation changes during flights. Spring-release latches deliver stable, secure closure and padlocks (available separately) can be attached to the lock holders for enhanced safety. A thick, curved carry handle enables easy one-handed transport between rooms and venues.
- Rugged, hard plastic exterior

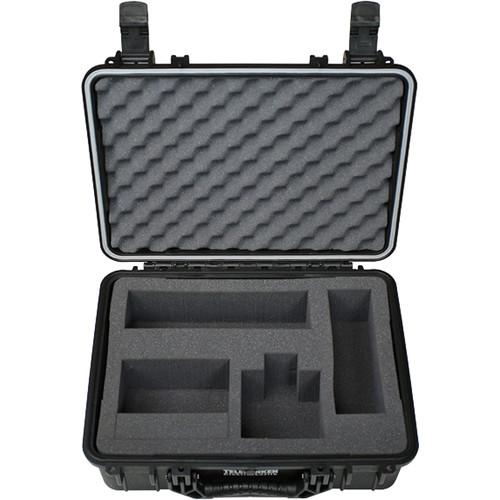

- High-density foam interior with cut-outs for microphone, power supply, shockmount, and cables
- Airtight and waterproof up to a depth of 3'
- Automatic pressure equalization valve enables proper air pressure regulation during elevation changes in flights
- Spring-release latches lock into place to provide secure closure
- Lock holders allow use of padlocks for additional security
- Thick, curved carry handle with hinges
- Made in the United States of America
UPC: 899051002855 In the Box Bundle Items AR-51 Multi-Pattern Tube Condenser Microphone dxubwtzrcwftdwavcwxqyecs Hardshell Flight Case for AR-51, AK-47 MkII, and M16 MkII Microphone Systems Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken AR-51 Multi-Pattern Tube Condenser Microphone with Flight Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AR-51 Multi-Pattern Tube Condenser Microphone
| | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 8 dB A-Weighted | | Maximum SPL | 128 dB SPL | | THD | < 0.2% | | Impedance | 250 Ohms | | Sensitivity | 13 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR
1 x 7-Pin XLR | | Operating Current Consumption | 140 mA | | Length | 9.49" / 241 mm | | Diameter | 1.75" / 44.45 mm | | Weight | 26.98 oz / 765 g | | | | Box Dimensions (LxWxH) | 17.4 x 11.3 x 3.4" | - Hardshell Flight Case for AR-51, AK-47 MkII, and M16 MkII Microphone Systems
| Material | Exterior: Plastic
Interior: High-density foam | | Type of Closure | Latches | | Exterior Dimensions (H x D x W) | 8 x 20 x 16" / 203 x 508 x 406 mm | | Interior Dimensions | Foam cut-outs sized for components of microphone system | | Carrying/Transport Options | Handle | | Country of Manufacture | United States of America | | Weight | 9.6 lb / 4.4 kg | | | | Box Dimensions (LxWxH) | 19.9 x 16.6 x 8.0" |
