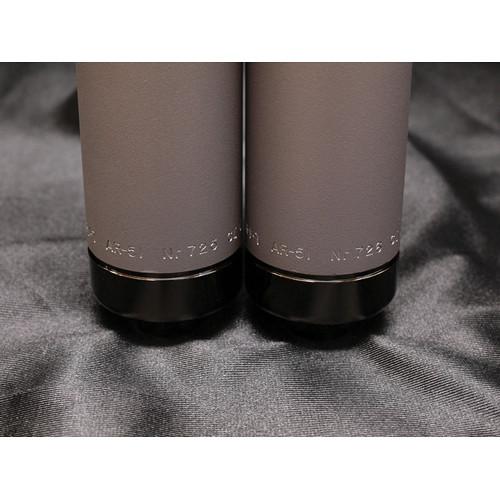

User Manual for Telefunken AR-51 Tube Condenser Microphone Stereo Set Click to enlarge the picture
Contents of the user manual for the Telefunken AR-51 Tube Condenser Microphone Stereo
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
 |
User manual for the Telefunken AR-51 Tube Condenser Microphone Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description The AR-51 Tube Condenser Microphone Stereo Set from Telefunken is a matched stereo pair of Telefunken AR-51 condenser microphones. The AR51 features a dual-sided gold-sputtered diaphragm and NOS ECC81 twin-triode tube output stage for smooth mid-range, open top end, and solid well-balanced low-frequency translation. In addition, three variable polar patterns provide cardioid, omnidirectional, and figure-8 patterns, with 6 intermediate stages. The package includes a custom-locking flight case that carries both cables, shockmounts, microphones, wooden boxes, and an American-made dual-channel power supply unit. - Dual-sided gold-sputtered capsule is coupled to a slightly-tweezed classic amplifier
- Omnidirectional, cardioid, and figure-8 polar patterns with 6 intermediate stages
- NOS ECC81 twin-triode tube delivers smooth mid-range, open top end, and solid well-balanced low-frequency translation
- Custom dual power supply powers both mics at once
- Locking flight case that will carry both sets of microphones, cables, wooden boxes, and the dual power supply
In the Box Telefunken AR-51 Tube Condenser Microphone Stereo Set 2 x AR-51 Tube Condenser Microphones Dual Power Supply 2 x Connecting Cables 2 x Shockmounts 2 x Wooden Storage Boxes Locking Flight Case Limited 1-Year Warranty Limited 1-Year Warranty for Capsule & Tube when Product is Registered Limited 4-Year Warranty for Amp, Cable, & Power Supply when Product is Registered Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken AR-51 Tube Condenser Microphone Stereo Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken AR-51 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 8 dB A-Weighted | | Maximum SPL | 128 dB SPL | | THD | < 0.2% | | Impedance | 250 Ohms | | Sensitivity | 13 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR
1 x 7-Pin XLR | | Operating Current Consumption | 140 mA | | Length | 9.49" / 241 mm | | Diameter | 1.75" / 44.45 mm | | Weight | 26.98 oz / 765 g | | | | Package Weight | 35.315 lb | | Box Dimensions (LxWxH) | 25.7 x 24.0 x 11.0" |
